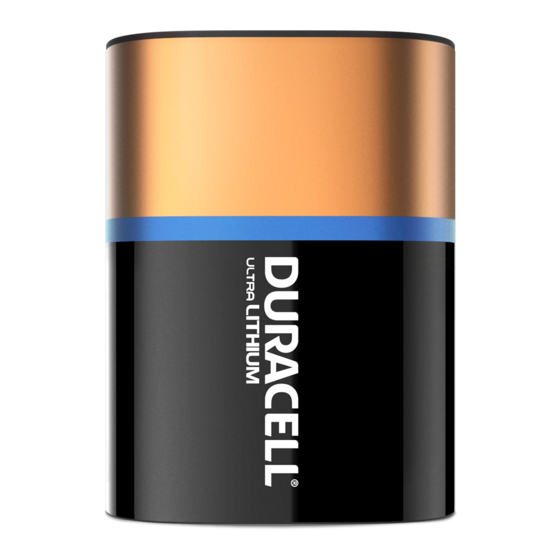

Duracell Lithium/Manganese Dioxide Ultra 245 Specification Sheet

L C
16.4
mm
15.6
34.0
mm
32.5
45.0
mm
43.0
Dimensions shown are IEC/ANSI standards
35mm Point &
Shoot Camera
1.2A, 3 sec on 7sec off, cont.
to 3.6 V @ 20°C
35mm SLR Photo
1.8A, 3 sec on 7sec off, cont.
to 3.6 V @ 20°C
0.9A, 3 sec on 27sec off, cont.
to 3.6 V @ 20°C
* *
Delivered capacity is dependent on the applied load, operating temperature and cut-off voltage. Please refer to the charts
and discharge data shown for examples of the energy / service life that the battery will provide for various load conditions.
This data is subject to change. Performance information is typical. Contact Duracell for the latest information
Nominal Voltage:
Typical Voltage:
Nominal Internal
Impedance:
17.0
mm
16.0
Average Weight:
Typical Volume:
Terminals:
Operating Temperature
Range:
ANSI:
IEC:
10
4
0.1
Duracell Ultra 245 Typical Performance
0 500
Ultra 245
Lithium/Manganese Dioxide
6 V
6.4-6.6 V
0.45 ohm @ 1kHz
38.6 gm
24.1 cm
Flat, Recessed Contacts
Nickel Plated Steel
o
-20 C to 75
o
(-4 F to 167
5032LC
2CR5
Delivered Energy vs. Power Drain
@ Various Cutoff Voltage - Room Temperature
Power (W)
1000
Pulse Cycles
3
o
C
o
F)
3.6 V
4.0 V
4.4 V
1
1500 2000
6/08
4
