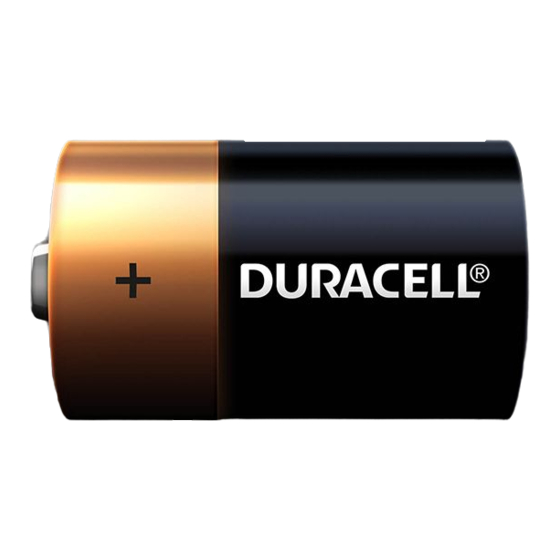

Duracell MN 1300 Specification Sheet

34.2
mm
32.3
9.5 mm
MAX
+
( )
–
( )
Dimensions shown are IEC/ANSI standards
Berkshire Corporate Park Berkshire Corporate Park Berkshire Corporate Park Berkshire Corporate Park
Bethel, CT 06801 U.S.A. Bethel, CT 06801 U.S.A. Bethel, CT 06801 U.S.A. Bethel, CT 06801 U.S.A.
Telephone: Toll-free 1-800-544-5454 Telephone: Toll-free 1-800-544-5454
Internet: www. Internet: www.duracell duracell.com .com
* * Delivered capacity is dependent on the applied load, operating temperature and cut-off voltage. Please refer to the charts
and discharge data shown for examples of the energy / service life that the battery will provide for various load conditions.
MN1300_US_CT.PDF
This data is subject to change. Performance information is typical. Contact Duracell for the latest information
Page 1 of 2
1.5 mm
MIN.
61.5
mm
59.5
1.6
1.5
1.4
1.3
1.2
1.1
1
0.9
0.8
0
Alkaline-Manganese Dioxide Battery
Nominal Voltage:
Operating Voltage
Impedance:
Typical Weight:
Typical Volume:
Terminals:
Storage Temperature
Range:
Operating Temperature
Range:
ANSI:
IEC:
TYPICAL DISCHARGE CHARACTERISTICS AT 21 ° C (70 ° F)
20 40 60
Service Hours
MN1300
Size: D (LR20)
1.5 V
1.6 - 0.75V
136 m-ohm @ 1kHz
139 gm (4.9 oz.)
56.4 cm 3 (3.4 in. 3 )
Flat
o o
-20 C to 35 C
o o
-20 C to 54 C
o o
(-4 F to 130 F)
13A
LR20
2.2 OHMS
3.9 OHMS
5.1 OHMS
10 OHMS
80 100 120 140 160
6/08
