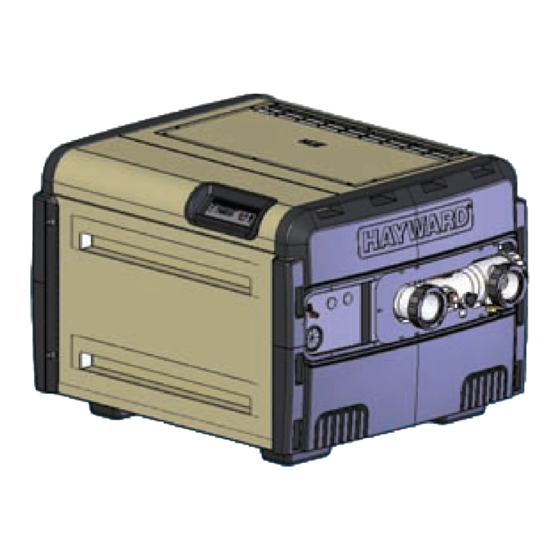

Page 1 POOL AND SPA/HOT TUB HEATERS H250FDN & H250FDP; H350FDN & H350FDP; H400FDN & H400FDP MODELS OWNER’S MANUAL FOR YOUR SAFETY WARNING: If the information in these instructions is not followed exactly, a fire or explosion may result causing property damage, injury, or death. - Do not store or use gasoline or other flam- mable vapors or liquids in the vicinity of this or any other appliance.
Page 2: Table Of Contents
Operation: Set point adjustment ..............11 Fahrenheit versus Celsius ................11 Keypad inputs ....................11 Winterization ....................11 Spring start-up .....................12 Error codes ....................12 Warranty ......................14 USE ONLY HAYWARD GENUINE REPLACEMENT PARTS Pomona, CA Clemmons, NC Nashville, TN Tel: 908-351-5400 www.haywardpool.com...
Page 3: Safety Information
CAUTION – This heater is intended for use on permanently installed swimming pools and may also be used with spas. Do NOT use with storable pools. A permanently installed pool is constructed in or on the ground or in a building such that it cannot be readily disassembled for storage. A storable pool is constructed so that it is capable of being readily disassembled for storage and reassembled to its original integrity. Though this product is designed for outdoor use, it is strongly recommended to protect the electrical components from the weather. Select a well drained area, one that will not flood when it rains. It requires free circulation of air for cooling. Do not install in a damp or non-ventilated location. WARNING – It is required that licensed electricians do all electrical wiring. Risk of Electric Shock. Hazardous voltage can shock, burn, cause death or serious property damage. To reduce the risk of electric shock, do NOT use an extension cord to connect unit to electric supply. Provide a properly located outlet. All electrical wiring MUST be in conformance with applicable local and national codes and regulations. Before work- ing on this unit, turn off power supply to the heater. WARNING – To reduce the risk of electric shock replace damaged wiring immediately. Locate conduit to prevent abuse from lawn mowers, hedge trimmers and other equipment. WARNING – Failure to bond to pool structure will increase risk for electrocution and could result in injury or death. To reduce the risk of electric shock, the electrician must comply with installation in- structions and must bond the heater accordingly. In addition, the licensed electrician must also conform to local electrical codes for bonding requirements. USE ONLY HAYWARD GENUINE REPLACEMENT PARTS Pomona, CA Clemmons, NC Nashville, TN Tel: 908-351-5400 www.haywardpool.com...
Page 4: Warnings
WARNING - To reduce the risk of entrapment hazards: • When suction outlets are less than a 18” x 23” equivalent, a minimum of two function- ing suction outlets per pump must be installed. Suction outlets in the same plane (i.e. floor or wall), must be installed a minimum of three feet (3’) [1 meter] apart, as mea- sured from near point to near point. • Dual suction outlets shall be placed in such locations and distances to avoid “dual blockage” by a user. • Dual suction fittings shall not be located on seating areas or on the backrest for such seating areas. • The maximum system flow rate shall not exceed the flow rating of any listed (per current revision of ASME/ANSI A112.19.8) suction outlet cover installed. • Never use the Pool or Spa if any suction outlet component is damaged, broken, cracked, missing, or not securely attached. • Replace damaged, broken, cracked, missing, or not securely attached suction outlet components im- mediately. • Install two or more suction outlets per pump in accordance with latest APSP (formally NSPI) Stan- dards and CPSC guidelines. Follow all applicable National, State, and Local codes. USE ONLY HAYWARD GENUINE REPLACEMENT PARTS Pomona, CA Clemmons, NC Nashville, TN Tel: 908-351-5400 www.haywardpool.com...
Page 5 WARNING – Separation Hazard. Failure to follow safety and operation instruc- tions could result in violent separation of pump components. Strainer cover must be properly secured to pump housing with strainer cover lock ring. Before servicing pool and spa circulation system, manual air relief valve must be in open position. Do not operate pool and spa circulation system if a system component is not assembled properly, damaged, or missing. Do not operate pool and spa circulation system unless filter air relief valve body is in locked position in filter upper body. WARNING – Never operate or test the circulation system at more than 40 PSI. WARNING – Fire and burn hazard. Motors operate at high temperatures and if they are not properly isolated from any flammable structures or foreign debris they can cause fires, which may cause severe personal injury or death. It is also necessary to allow the motor to cool for at least 20 minutes prior to maintenance to minimize the risk of burns. WARNING – Failure to install according to defined instructions may result in severe personal injury or death. USE ONLY HAYWARD GENUINE REPLACEMENT PARTS Pomona, CA Clemmons, NC Nashville, TN Tel: 908-351-5400 www.haywardpool.com...
Page 6 1. Unawareness of impending danger. 2. Failure to perceive heat. 3. Failure to recognize the need to leave the spa. 4. Physical inability to exit the spa. 5. Fetal damage in pregnant women. 6. Unconsciousness resulting in danger of drowning. DEFINITIONS: Suction Outlet – The term Suction Outlet is a fitting, fitting assembly, cover/grate and related compo- nents that provide a means for water to exit the pool and into the pump circulating system. Inches of Mercury (in Hg) - A unit for measuring pressure below atmospheric (“suction” or “vacuum”) (1.0 inch Hg = .491 PSI) Main Drain – See Suction Outlet PSI – An abbreviation for pounds per square inch. USE ONLY HAYWARD GENUINE REPLACEMENT PARTS Pomona, CA Clemmons, NC Nashville, TN Tel: 908-351-5400 www.haywardpool.com...
Page 7: Section I General Information
I. GeneRAL InFoRMAtIon IntRoDUCtIon: This manual contains instructions for installation, operation, maintenance, troubleshooting, and parts lists for the safe use of the swimming pool/spa/hot tub heaters. Hayward strongly recommends that the owner read the manual before using the swimming pool/spa/hot tub heater. If after reviewing the manual any ques- tions remain unanswered, contact the factory or local representative. LIMIteD WARRAntY sUMMARY: We warrant the pool/spa/hot tub heater to be free from defects in materials and workmanship, and we will within one year from date of installation for all users, for the original purchaser, repair or, at our option, replace without charge any defective part. We further warrant that if the heat exchanger or exchanger headers (water-containing section) leak within one year from date of such installation for all users, due to defects in materials and workmanship, we will provide a replacement part. Cost of freight, installation, fuel, and service labor (after one year) is at user’s expense. For full details of warranty agreement, see warranty certificate included in this manual. ATTENTION: If the pool/spa/hot tub heater is damaged or destroyed by improper maintenance, exces- sive water hardness, incorrect water chemistry, or freezing it is not covered under the manufacturer’s warranty. USE ONLY HAYWARD GENUINE REPLACEMENT PARTS Pomona, CA Clemmons, NC Nashville, TN Tel: 908-351-5400 www.haywardpool.com...
Page 8: Section Ii. Consumer Operation & Maintenance
Salt 2700 - 3400 ppm poor salt chlorinator performance corrosive to heat exchanger 3. SKIMMER CHLORINATION Placing chlorine or bromine tablets directly into the skimmer may result in high chemical concentrations flowing through the heater. DO NOT place chlorine or bromine tablets in the skimmer. USE ONLY HAYWARD GENUINE REPLACEMENT PARTS Pomona, CA Clemmons, NC Nashville, TN Tel: 908-351-5400 www.haywardpool.com...
Page 9 Ensure water flow through the heater is restored before operating the heater. A bypass feature is also advanta- geous for service needs and for the ability to remove the heater from the water path when not heating. Refer to page 25 in the installation manual for further information. HEATER OPERATION: Full lighting and shutdown instructions are included on the lighting & operating instructions label affixed to the inside of the front access panel. See Figure 2 for the location of this label and the keypad. See Figure 3 for the label. Figure 2: Keypad and label locations Keypad Lighting & shutdown label is located on the inside of the front access panel Remove these (4) screws to remove the front access pane WARNING: If you smell gas in the appliance area or near the floor (PROPANE IS HEAVIER THAN AIR AND HENCE SETTLES ON THE FLOOR), stop and follow the instructions on the front cover of this manual. Since propane can accumulate in con- fined areas, extra care should be taken when lighting propane heaters. ATTENTION: Do not use the heater below 40°F (4°C) temperature without adequate temperature protection. WARNING: Do not ingest alcohol or drugs during use or prior to using pool, spa, or hot tub. Ingestion of such intoxicants can cause drowsiness, which can lead to unconsciousness, and subsequently result in drowning. USE ONLY HAYWARD GENUINE REPLACEMENT PARTS Pomona, CA Clemmons, NC Nashville, TN Tel: 908-351-5400 www.haywardpool.com...
Page 10: Lighting & Operating Instructions Label
Figure 3: Lighting & Operating Instructions label USE ONLY HAYWARD GENUINE REPLACEMENT PARTS Pomona, CA Clemmons, NC Nashville, TN Tel: 908-351-5400 www.haywardpool.com...
Page 11: Operation: Set Point Adjustment
OPERATION: SET POINT ADjUSTMENT: The set point temperature is displayed by pressing the “UP” or “DOWN” buttons while in “POOL” or “SPA” mode. The set point will blink while it is displayed. Further pressing of the “UP” or “DOWN” buttons will adjust the set point temperature up or down as desired. The set point range is between 65°F (18°C) and 104°F (40°C). FAHRENHEIT vERSUS CELSIUS: The temperature can be displayed in Fahrenheit or Celsius. TO change the display, use the “MODE” but- ton to place the heater in “STANDBY”. Then press and hold the “UP” and “MODE” buttons until the display shows the °F/°C selection. Press the “DOWN” button to toggle between selections. To accept the selection, press the “MODE” button. If the user does not act, the selection will be automatically accepted after 60 sec- onds. WINTERIzATION: In moderate climates, the heater can continue to operate during short-term cold spells. Do not use the heater to maintain the water temperature just above freezing or for freeze protection. Care must be taken to avoid freeze-up in the heater. When it is used during freezing weather, the pump must run continuously. The heater is not warranted against freeze-ups. In regions where freezing temperatures are encountered, all water must be drained from the heater when it is out of service, to prevent damage to the heater and piping. Drain- ing the heat exchanger is recommended as part of the season’s shutdown procedures. USE ONLY HAYWARD GENUINE REPLACEMENT PARTS Pomona, CA Clemmons, NC Nashville, TN Tel: 908-351-5400 www.haywardpool.com...
Page 12: Spring Start-Up
SPRING START-UP – CONSULT A PROFESSIONAL: 1. Inspect and clean the heater, being sure the heater is free of leaves and debris prior to startup. 2. Be sure inlet and outlet piping are properly attached to the heater and the drain valve is closed. 3. Turn the filtration system pump “ON” and allow the system to run long enough to purge all the air from the lines. 4. Turn the gas supply to the heater “ON”. 5. Set the temperature control using the keypad to “POOL” or “SPA” and adjust the set point to the desired temperature setting. 6. If operating difficulties are encountered, contact a qualified service company for assistance. ERROR CODES: Figure 5 lists the error codes that may be displayed on the heater display board. Contact a qualified service company for assistance. Figure 5: ERROR CODES Code Description Information Internal fault/power-up On initial trial for ignition. Automatic reset is immediate once the gas valve error relay check results are acceptable. Gas valve sensed If valve is open when it should be closed the heater will shut down and go into as “ON” error lockout. Blower will operate until error condition is corrected. Automatic restart 2 minutes after error is corrected. Gas valve sensed If valve is closed but flame is sensed the blower will run for 5 s then start a new as “OFF” error ignition sequence. If error occurs 10 times during a call for heat the control will go into lockout. Automatic reset is 60 minutes.
Page 13 Rapid water If water temperature rises too rapidly the heater will shut down and go into lock- temperature rise out. Automatic restart is after 2 minutes. After the third occurrence in the same call for heat the heater will lock out. Keypad button stuck If one of the keypad buttons is closed (or pressed) for more than 30 s the error closed error code will be displayed but the control will continue to function. The error code will be cleared when the condition is corrected. Ignition failure error If the control exceeds the maximum number of ignition retries or recycles the heater will shut down and go into lockout. Automatic reset is 60 minutes. Communication error If communication between the ignition board and the display board is not estab- lished within 3 s of power-up an error will be displayed. After communication is established, if it is lost for 30 s, the error will be displayed. The error code will be cleared upon a valid data exchange between boards. Limit string open error If the limit string opens the heater shuts down and goes into lockout. Automatic restart is 2 minutes after the error condition is corrected and the limit string closes. EEPROM error An error was detected in the ignition control circuit board. USE ONLY HAYWARD GENUINE REPLACEMENT PARTS Pomona, CA Clemmons, NC Nashville, TN Tel: 908-351-5400 www.haywardpool.com...
Page 14: Warranty
HAYWARD PooL HeAteR CeRtIFICAte oF LIMIteD WARRAntY Limited heater warranty: TERMS AND COVERAGE: We warrant our pool heater to be free from defects in workmanship and materi- als under normal use and service. Pursuant to this warranty and subject to the Conditions and Exceptions indicated below: 1. We will replace (cost of freight, installation, cost of fuel, and service labor at user’s expense) with the prevailing comparable model, or, at our option, repair any pool/spa heater that leaks under nor- mal use and service within one year from the date of original installation for all users. 2. In addition, we will replace (cost of freight, installation, cost of fuel, and service labor at user’s expense) or, at our option, repair any part or parts of the pool/spa heater which malfunctions under normal use and service within one year from the date of original installation for all users. LIMITATION ON IMPLIED WARRANTIES: WE ARE NOT LIABLE FOR ANY CONSEQUENTIAL DAMAGES FOR BREACH OF ANY WRITTEN OR IMPLIED WARRANTY OF THIS PRODUCT. Im- plied warranties, including the WARRANTY of MERCHANTABILITY and all other implied warranties that may arise from course of dealing or usage of trade imposed on the sale of this heater under laws of the state are limited in duration to the term of one (1) year for all users. There are no warranties which extend beyond the description on the face hereof. We shall not in any event be held liable for any special, indirect, or conse- quential damages. eXPense oF DeLIVeRY AnD InstALLAtIon: Each pool heater or replacement part to be furnished under this warranty shall be furnished at our nearest distribution center. We shall not pay, nor be responsible for shipping or delivery charges to the place of instal- lation, nor for labor charges or other costs of removal or installation. Every defective heater or part replaced under this warranty shall become our property, and as such, must be returned to our distribution center with transportation charges paid by the user. Any replacement pool heater furnished under this warranty shall re- main in warranty only for the unexpired portion of this warranty. ConDItIons AnD eXCePtIons: This warranty applies only to the pool/spa at its original place of installation and only for the original owner. It does not apply if the pool heater is installed in violation of any applicable code or ordinance, or is...
Page 15 POMOna, Ca 91768 Upon receipt of such notification we shall decide whether to repair such parts or replace any pool heater, reserving at all times the right to inspect in order to verify any claimed defect. We also reserve the right to have our representatives make any inspections, repairs, or to furnish replacements. This warranty is intended as a legally binding obligation of the Company, enforceable in the courts. This warranty may give you spe- cific legal rights which may vary from state to state. LIMItAtIon on LIABILItY: All intended representations have been expressly set forth in this document. This warranty may not be extended by oral or any other additional representations, written sales information, drawings, or other mal- function, is strictly limited to repair or replacement of the defective heater or part, as provided herein and the Company is not responsible hereunder for incidental or consequential or incidental costs or damages. The company neither assumes, nor authorizes any person or firm to assume for us, any further liability or obligation in connection with the sale, installation, use, maintenance, or existence of the heater. SAFETY WARNING: Pool heaters are heat producing appliances and to avoid damage or injury in the event of pos- sible overheating of the outer jacket (1) no materials should be stored against the jacket and (2) care should be taken to avoid unnecessary contact (especially by children) with the jacket. When lighting a gas heater, the lighting instructions must be followed exactly to prevent “flashback” of excess gas in the heater. Electronic ignition heaters and electric heaters must have the power shut off when making adjustments to, servicing, or coming into contact with the heater. UNDER NO CIRCUMSTANCES SHOULD FLAMMABLE MATERI- ALS, SUCH AS GASOLINE OR PAINT THINNERS, BE USED OR STORED IN THE VICINITY OF THE HEATER OR IN ANY LOCATION FROM WHICH FUMES COULD REACH THE HEATER. For your comfort, enjoyment and safety, please read the enclosed operating instructions carefully. USE ONLY HAYWARD GENUINE REPLACEMENT PARTS Pomona, CA Clemmons, NC Nashville, TN Tel: 908-351-5400 www.haywardpool.com...
Page 16 Pool Products, Inc. hayward Pool Products, Inc. hayward S.a. 2875 Pomona boulevard 2880 Plymouth Drive zoming de Jumet 620 Division St. Pomona, Ca 91768 Oakville, Ontario L6h 5R4 b6040 Jumet, belgique Elizabeth, nJ 07207 © 2004 hayward Imprimé aux u.S.a.

This manual is also suitable for:

H250fdn H250fdp H350fdn H350fdp H400fdn H400fdp
