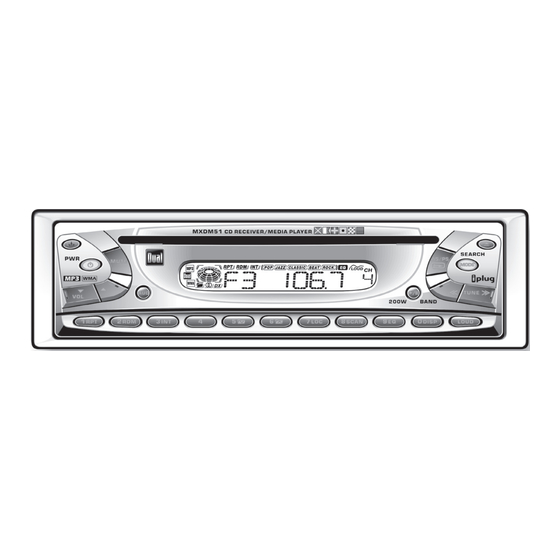

- Page 1 MXDM51 INSTALLATION/OWNER'S MANUAL AM/FM/CD/MP3/WMA Receiver with Detach Face MARINE...
- Page 2 MXDM51 INSTALLATION Preparation Please read entire manual before installation. Before You Start • Disconnect negative battery terminal. Consult a qualified technician for instructions. • Avoid installing the unit where it would be subject to high temperatures, such as from direct sunlight, or where it would be subject to dust, dirt or excessive vibration.
-
Page 3: Wiring Diagram
MXDM51 INSTALLATION Wiring Diagram FUSE When replacing the fuse, make sure new fuse is the correct type and amperage. Using an incorrect fuse could damage the radio. The MXDM51 uses one 10 amp AGC fuse (Battery) located in-line. -
Page 4: Control Locations
Loudness Display/0 The MXDM51 allows playback of your favorite MP3 and WMA files recorded on CD-R and CD-RW discs. Its powerful on-board DSP processor decodes the compressed audio while maintaining near-CD sound quality. An internal SRAM buffer provides ESP (Electronic... -
Page 5: General Operation
MXDM51 OPERATION General Operation Faceplate Removal Press RELEASE and pull away from the left side to remove. To re-install, insert right side of faceplate first then push left side to secure. Semi-permanent Remove trim ring and install supplied #1 x 7/32” Phillips Faceplate Installation head screw through left side of mounting frame into faceplate. - Page 6 MXDM51 OPERATION General Operation Programmable Display Priority Programmable Clock Priority Reset Confirmation Beep Mute In tuner mode, press and hold DISP then press TUNE to select function priority display. “FREQ” will momentarily appear in the display. Note: "FUNC" will appear in CD or AUX modes.
- Page 7 MXDM51 OPERATION General Operation Audio Press AUD to select between Volume (default), Bass, Treble, Balance & Fader. Bass Press AUD until BAS appears Press VOL t or s to adjust ( -6 minimum / +6 maximum) Treble Press AUD until TRE appears...
-
Page 8: Tuner Operation
MXDM51 OPERATION Tuner Operation Seek Tuning Manual Tuning Scan Tuning Local/Distance Band Frequency Spacing Storing and Recalling Station Presets Automatically Store Stations Preset Scan << or Press TUNE TUNE strong station. << or Press TUNE TUNE release. "MANUAL" will momentarily appear in the display. << or Press TUNE TUNE frequency up or down one step at a time. Press and hold to advance quickly. -
Page 9: Cd Player Operation
Pause Intro Repeat Random CD-R/CD-RW Compatibility MXDM51 OPERATION CD Player Operation With the label facing up, insert a standard size CD into the CD slot. The CD will automatically begin playback. Press EJECT to eject the CD. The unit will change to previous mode of operation (AM, FM, or auxiliary input). If the disc is not removed within 10 seconds, the unit will reload the disc. - Page 10 MXDM51 OPERATION CD Player Operation - MP3/WMA Files Playing an MP3/WMA Disc MP3 Icon WMA Icon Folder Icon Displaying Information Character Support When an MP3/WMA encoded disc is first inserted, “READING” will appear in the display. Depending on the number of files and folders, this may take several seconds. icon will illuminate anytime a valid MP3 encoded disc is inserted and flash in MP3 search/navigate modes.
- Page 11 VOL t / VOL s MUTE Direct Select, Search and Navigate Modes Direct File Select Step 1 Step 2 MXDM51 OPERATION Direct Select, Search and Navigate Modes Enter/Confirm Character Shift Character Select (A, B, C ~ 8, 9, 0) Character Backspace Press SEARCH for more than 3 seconds, to select between the following modes: •...
- Page 12 MXDM51 OPERATION CD Player Operation - MP3/WMA Files Alphanumeric File or Folder Search Step 1 Step 2 Step 3 Step 4 Step 5 File/Folder Navigate Step 1 Step 2 Step 3 Step 4 *Folder Access (Up one level) Press SEARCH for more than 3 seconds, then release. Press SEARCH again, an " the buttons in the table on page 11 (32 character maximum input) or the VOL t / VOL s to enter the desired alphanu- meric search characters.
- Page 13 Note: File repeat (current folder only), folder random and folder intro is only available on MP3/WMA discs recorded with more than one folder. MXDM51 OPERATION to select the previous folder. to select the next folder. icon will appear in icon will appear...
- Page 14 MXDM51 OPERATION CD Player Operation - MP3/WMA Files Media Compatibility Playback Order Compatible Recording Formats The following types of discs/files are compatible: • CD-ROM (ISO), CD-R, CD-RW • CD-DA • MP3 data • WMA data The following types of discs/files are not compatible: • WMA files that are protected by DRM (Digital Rights Management).
- Page 15 Information Sampling Frequency Rates Transfer Bit rates MP3 Tag Display Recommended Settings MXDM51 OPERATION An internal buffer provides ESP (Electronic Skip Protection) to virtually eliminate skipping. When playing a disc recorded with regular audio files (CD-DA or .WAV) and MP3/WMA files, the unit will play the MP3/WMA files only.
-
Page 16: Limited One Year Warranty
MXDM51 WARRANTY Limited One Year Warranty This warranty gives you specific legal rights. You may also have other rights which vary from state to state. Dual Electronics Corp. warrants this product to the original purchaser to be free from defects in material and workmanship for a period of one year from the date of the original purchase. -
Page 17: Specifications
CEA-2006 Power Standard Specifications (reference: 14.4VDC +/- 0.2V, 20Hz~20kHz) Power Output: 15 Watts RMS x 4 channels at 4 ohms and < 1% THD+N Signal to Noise Ratio: 80dBA (reference: 1 watt into 4 ohms) MXDM51 OPERATION Specifications 10Hz-20kHz >65dB 1 Bit 87.5MHz-107.9MHz... -
Page 18: Troubleshooting
MXDM51 WARRANTY Troubleshooting Problem Unit will not turn on Yellow wire not connected or incorrect voltage (no power) Red wire not connected or incorrect voltage Black wire not connected Fuse blown Unit has power Speaker wires not connected (but no sound) One or more speaker wires touching each other or touching chassis ground Unit blows fuses... - Page 19 MXDM51 OPERATION Notes...
- Page 20 Dual Electronics Corp. Toll Free: 1-866-382-5476 www.dualav.com ©2006 Dual Electronics Corp. All rights reserved. Windows Media and the Windows logo are trademarks, or registered trademarks of Microsoft Corporation in the United States and or other countries. NSA0806-V01...
