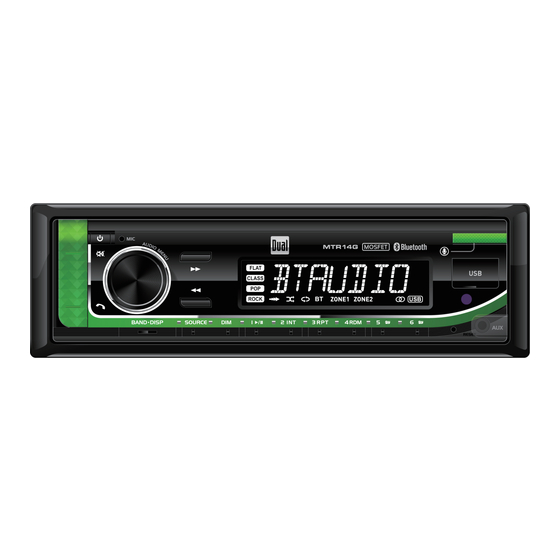

- Page 1 MTR14G INSTALLATION/OWNER'S MANUAL AM/FM Receiver with Bluetooth and Fixed Face...
- Page 2 MTR14G INSTALLATION Preparation Please read entire manual before installation. Before You Start • Disconnect negative battery terminal. Consult a qualified technician for instructions. • Avoid installing the unit where it would be subject to high temperatures, such as from direct sunlight, or where it would be subject to dust, dirt or excessive vibration.
-
Page 3: Wiring Diagram
MTR14G INSTALLATION Wiring Diagram Power Harness Input AM/FM Antenna Input RCA Preamp Outputs FUSE When replacing the fuse, make sure new fuse is the correct type and amperage. Using an incorrect fuse could damage the radio. USE 10A ATC REPLACEMENT FUSE ONLY... -
Page 4: Control Locations
MTR14G INSTALLATION Control Locations 12 11 Power Auxiliary Input Preset 1 / Play/Pause Microphone Reset Dimmer Preset 6 / Folder Up Volume / Audio Source Preset 5 / Folder Down Tune / Track Up Band/Display Tune / Track Down Preset 4 / Random... -
Page 5: General Operation
MTR14G INSTALLATION General Operation Power On/Off Press the button to turn the unit on. Press again to turn the unit off. Press SOURCE to select between Radio, USB, Auxiliary Changing Modes Input and Bluetooth. Sources of operation are shown in the display. -
Page 6: Am/Fm Tuner Operation
MTR14G INSTALLATION AM/FM Tuner Operation Seek Tuning Press and hold TUNE or TUNE for two seconds to auto seek to the previous or next strong station. Manual Tuning Press TUNE or TUNE momentarily to change radio frequency up or down one step at a time. Press... -
Page 7: Usb Operation
MTR14G INSTALLATION USB Operation Playing MP3 Files To play MP3 files, insert a USB device containing MP3 files. Track Select Press TUNE to skip to the beginning of the next track. Press TUNE to skip to the beginning of the previous track. -
Page 8: Bluetooth Operation
MTR14G INSTALLATION Bluetooth Operation Preparation Before using a Bluetooth device, it must be paired and connected. Ensure that Bluetooth is activated on your device before beginning the pairing process. Pairing a New The head unit broadcasts the pairing signal constantly Device when no devices are connected. -
Page 9: Voice Activation
MTR14G INSTALLATION Voice Activation Your receiver is designed with an easy access voice activation button to use Siri® or the Google Assistant™ via your car's Bluetooth. Interact with your smartphone assistant while you drive with only the push of a button! Bluetooth should be paired between your smartphone and the receiver. -
Page 10: Specifications
MTR14G INSTALLATION Specifications FM Tuner 87.5MHz-107.9MHz Tuning range: 8.5dBf Usable sensitivity: 10dBf 50dB quieting sensitivity: >30dB Stereo separation @ 1kHz: 30Hz-13kHz Frequency response: AM Tuner 530kHz-1710kHz Tuning range: <42dBu Usable sensitivity: 30Hz-2.2kHz Frequency response: General 4~8 ohms Speaker output impedance: 1.2 Volts RMS... -
Page 11: Troubleshooting
MTR14G INSTALLATION Troubleshooting Problem Cause Action Yellow wire not connected or incorrect Check connections for proper voltage Red wire not connected or Unit will not turn on voltage (11~16VDC) incorrect voltage (no power) Black wire not connected Check connection to ground... -
Page 12: Limited One Year Warranty
MTR14G INSTALLATION Limited One Year Warranty What to do? This warranty gives you specific legal rights. 1. Before you call for service, check the You may also have other rights which vary from state to state. troubleshooting guide in your owner’s manual. -
Page 13: Fcc Compliance
MTR14G INSTALLATION FCC Compliance This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. - Page 14 Dual Electronics Corp. Toll Free: 1-866-382-5476 www.dualav.com ©2024 Dual Electronics Corp. All rights reserved. The Bluetooth word mark and logos are owned by the Bluetooth SIG, Inc Other trademarks and trade names are those of their respective owners. NSC0124-V01...
