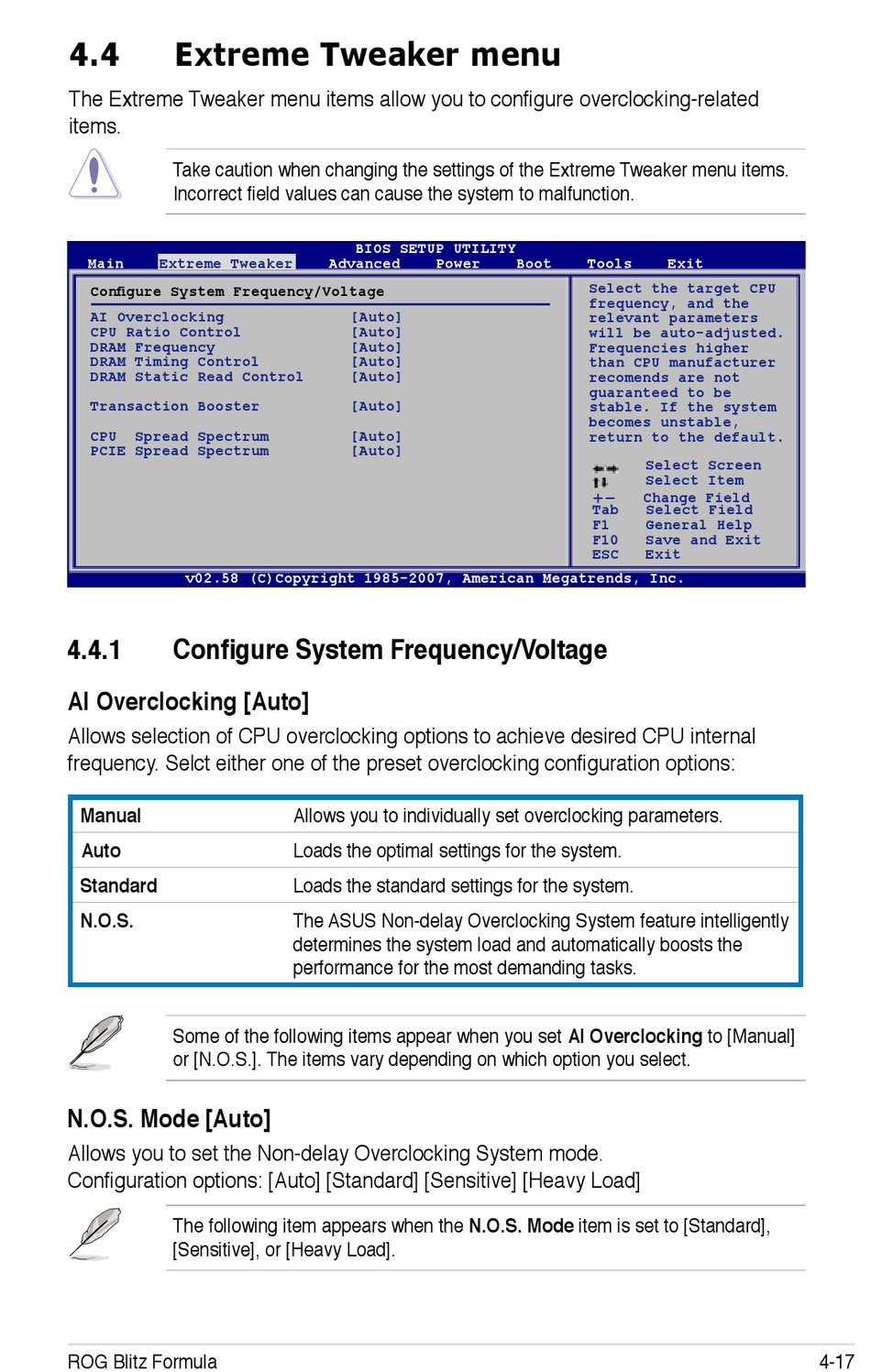

4.4
Extreme Tweaker menu
The Extreme Tweaker menu items allow you to configure overclocking-related
items.
Take caution when changing the settings of the Extreme Tweaker menu items.
Incorrect field values can cause the system to malfunction.
Main
Extreme Tweaker
Configure System Frequency/Voltage
AI Overclocking
CPU Ratio Control
DRAM Frequency
DRAM Timing Control
DRAM Static Read Control
Transaction Booster
CPU
Spread Spectrum
PCIE Spread Spectrum
v02.58 (C)Copyright 1985-2007, American Megatrends, Inc.
4.4.1
Configure System Frequency/Voltage
AI Overclocking [Auto]
Allows selection of CPU overclocking options to achieve desired CPU internal
frequency. Selct either one of the preset overclocking configuration options:
Manual
Auto
Standard
N.O.S.
Some of the following items appear when you set AI Overclocking to [Manual]
or [N.O.S.]. The items vary depending on which option you select.
N.O.S. Mode [Auto]
Allows you to set the Non-delay Overclocking System mode.
Configuration options: [Auto] [Standard] [Sensitive] [Heavy Load]
The following item appears when the N.O.S. Mode item is set to [Standard],
[Sensitive], or [Heavy Load].
ROG Blitz Formula
BIOS SETUP UTILITY
Advanced
Power
[Auto]
[Auto]
[Auto]
[Auto]
[Auto]
[Auto]
[Auto]
[Auto]
Allows you to individually set overclocking parameters.
Loads the optimal settings for the system.
Loads the standard settings for the system.
The ASUS Non-delay Overclocking System feature intelligently
determines the system load and automatically boosts the
performance for the most demanding tasks.
Boot
Tools
Exit
Select the target CPU
frequency, and the
relevant parameters
will be auto-adjusted.
Frequencies higher
than CPU manufacturer
recomends are not
guaranteed to be
stable. If the system
becomes unstable,
return to the default.
Select Screen
Select Item
+-
Change Field
Tab
Select Field
F1
General Help
F10
Save and Exit
ESC
Exit
4-17
