Installing Fusion Block System accessory

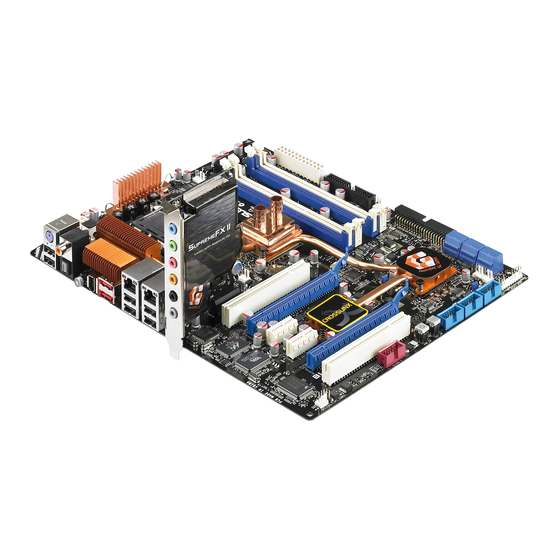

Install your watercooling system to the motherboard using the bundled accessories
to obtain the best thermal solution.

Package contents

3/8" ID tubes x 2
/2" ID tube clips x 2
tube clips x 2
For watercooling system with 3/8" ID tubes
1.
Firmly press a tube clip and fit the tube into the clip.
2.
Press the clip and connect the tube to the waterblock. When done, release
the clip to tighten the two together.
3.
Repeat Step  and 2 for another tube. Make sure that both tubes are well
connected to prevent leak, and then fill the coolant into the reservoir.
1
Installing Fusion Block System accessory
1/2" to 3/8" ID fittings x 2 10mm to 3/8" ID fittings x 2
3/8" ID tube clips x 6
2


Advertisement

   Also See for Asus Blitz Formula

   Related Manuals for Asus Blitz Formula

   Summary of Contents for Asus Blitz Formula

  • Page 1: Installing Fusion Block System Accessory

    Installing Fusion Block System accessory Install your watercooling system to the motherboard using the bundled accessories to obtain the best thermal solution. Package contents 3/8” ID tubes x 2 1/2” to 3/8” ID fittings x 2 10mm to 3/8” ID fittings x 2 /2” ID tube clips x 2 tube clips x 2 3/8”...

  • Page 2

    For watercooling system with 1/2” or 10mm ID tubes Insert a fitting (1/2” to 3/8” ID or 10mm to 3/8” ID) into the tube. Your watercooling system may come with tube clips. Use the clips to fasten the fittings and the tubes together. Connect a supplied 3/8” ID tube to the fitting. Firmly press a tube clip and hitch it to the bottom end of the 3/8” ID tube. Press another clip and hitch it to the top end of the 3/8”...
