Nokia 6102 - Cell Phone 4.6 MB Quick Start Manual

9240532
Printed in Mexico
1 1
1 1
Check it out! Check it out!
1 Camera lens
Lens for taking pictures.
2 Camera release key
Press and hold to quickly take pictures.
3 Infrared
Use to exchange data with other compatible Nokia phones or
your compatible PC.
4 Mini display
View the clock and caller ID without opening your phone.
5 Main display
6 Left and right selection keys
Press to access the option shown above the key.
7 Integrated speakerphone
When the phone is open, press the right selection key during a
call and talk handsfree.
8 Volume key
In the open or closed position, press up to increase the
volume or down to decrease the volume.
9 4-way navigation key with center selection key
Activate camera
View your contacts
Compose a message
View the calendar
Talk and End keys
10
Press the Talk key to make a call or to answer an incoming call.
Press the End key to end a call, or press and hold to return to
the idle screen.
Power key
1 1
Press and hold to turn phone on or off.
2 2
2 2
Install the SIM card. Install the SIM card.
Your Nokia 6102 phone uses a convenient SIM card, which holds
information about your wireless service and stores contact
information. That means you can transfer your service and contacts
to your phone simply by inserting your SIM card!
Insert the SIM card
1. With the back of the phone facing you, push down the release
button on the back cover.
2. Slide the cover off in the direction shown (fig. 2.1).
3. After removing the battery, open the SIM card holder by pressing the
release button and lifting the holder up (fig. 2.2).
4. Insert the SIM card with the metal contacts facing down and the beveled
edge pointing towards the top of the phone (fig. 2.3).
5. Close the SIM card holder.
3 3
3 3
Insert and charge the battery. Insert and charge the battery.
The Nokia BL-4C battery is inserted under the back cover. A fully charged
battery has up to 4 hours of talk time and up to 350 hours of standby time.
Insert and charge the battery
1. Turn the phone off and remove the back cover.
2. Insert the battery, gold-colored contact end first, into the battery slot.
Then push down on the other end of the battery to snap into place (fig. 3.1).
3. Replace the back cover by setting the cover on the phone with the cover
tabs aligned with the slots in the phone, then slide the cover toward the top
of the phone until it is securely in place.
4. Plug the Nokia AC-3 charger into a standard AC wall outlet.
5. Connect the charger cable to the bottom of the Nokia 6102 phone.
Note: If you would like to use a charger from an earlier Nokia phone, you will
need the Nokia CA-44 charger adapter (fig. 3.2). You can purchase this from
your wireless service provider.
Tip! Allow the battery to fully charge before using your Nokia 6102 phone.
6. After your phone is fully charged, turn it on. You will be prompted to set the
time and date.
Recharge the battery
Recharging time is approximately 90 minutes while the phone
is in standby mode. While charging is in progress, the battery
charge indicator scrolls on the phone display. It stops
scrolling when the battery is fully charged.

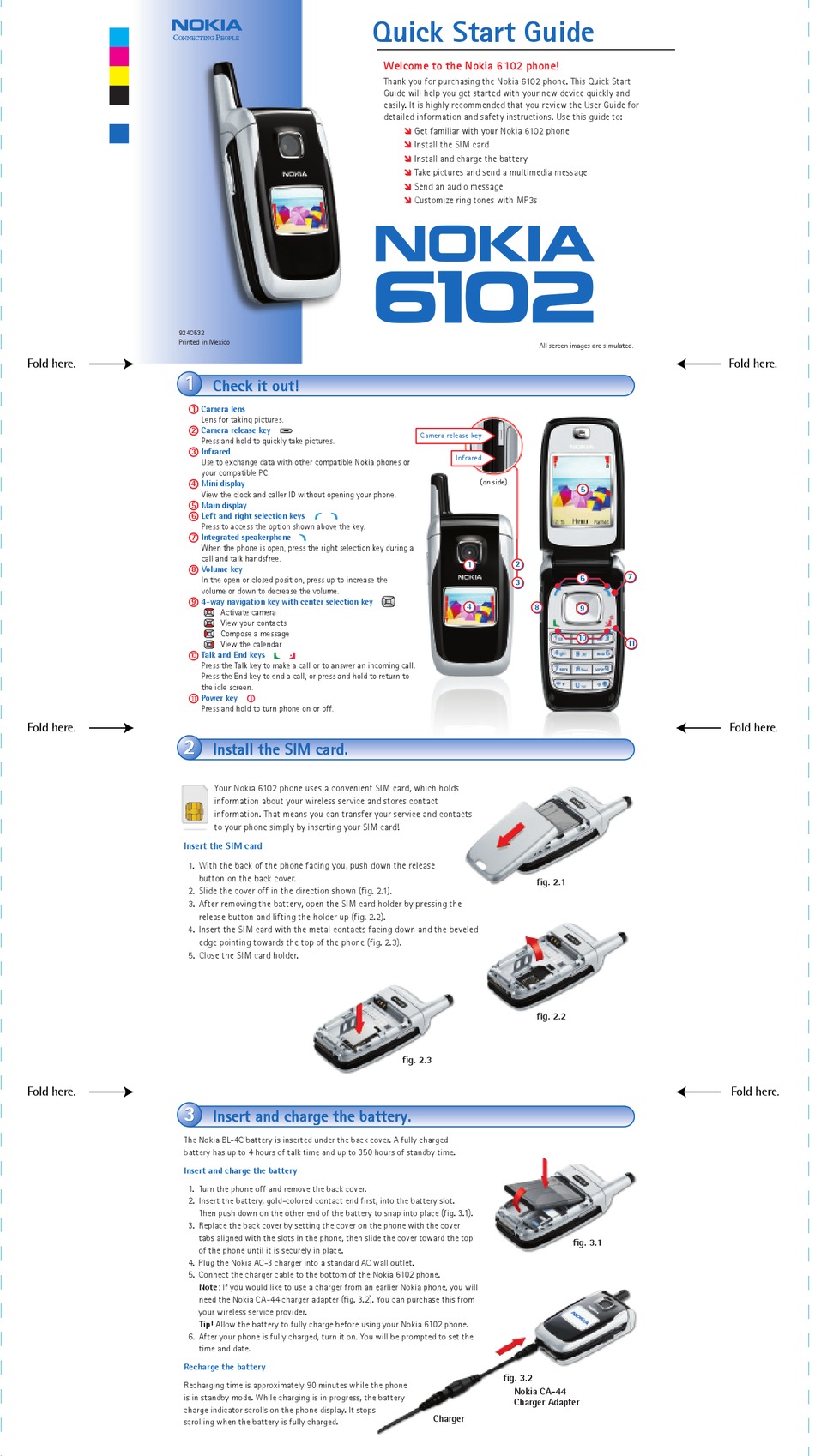

Quick Start Guide

Welcome to the Nokia 6102 phone!
Thank you for purchasing the Nokia 6102 phone. This Quick Start
Guide will help you get started with your new device quickly and
easily. It is highly recommended that you review the User Guide for
detailed information and safety instructions. Use this guide to:
 Get familiar with your Nokia 6102 phone
Install the SIM card

Install and charge the battery

Take pictures and send a multimedia message

 Send an audio message
Customize ring tones with MP3s

Camera release key
Infrared
1
4
fig. 2.3
Charger
All screen images are simulated.
(on side)
2
3
8
fig. 2.1
fig. 2.2
fig. 3.1
fig. 3.2
Nokia CA-44
Charger Adapter
5
7
6
9
10
11
