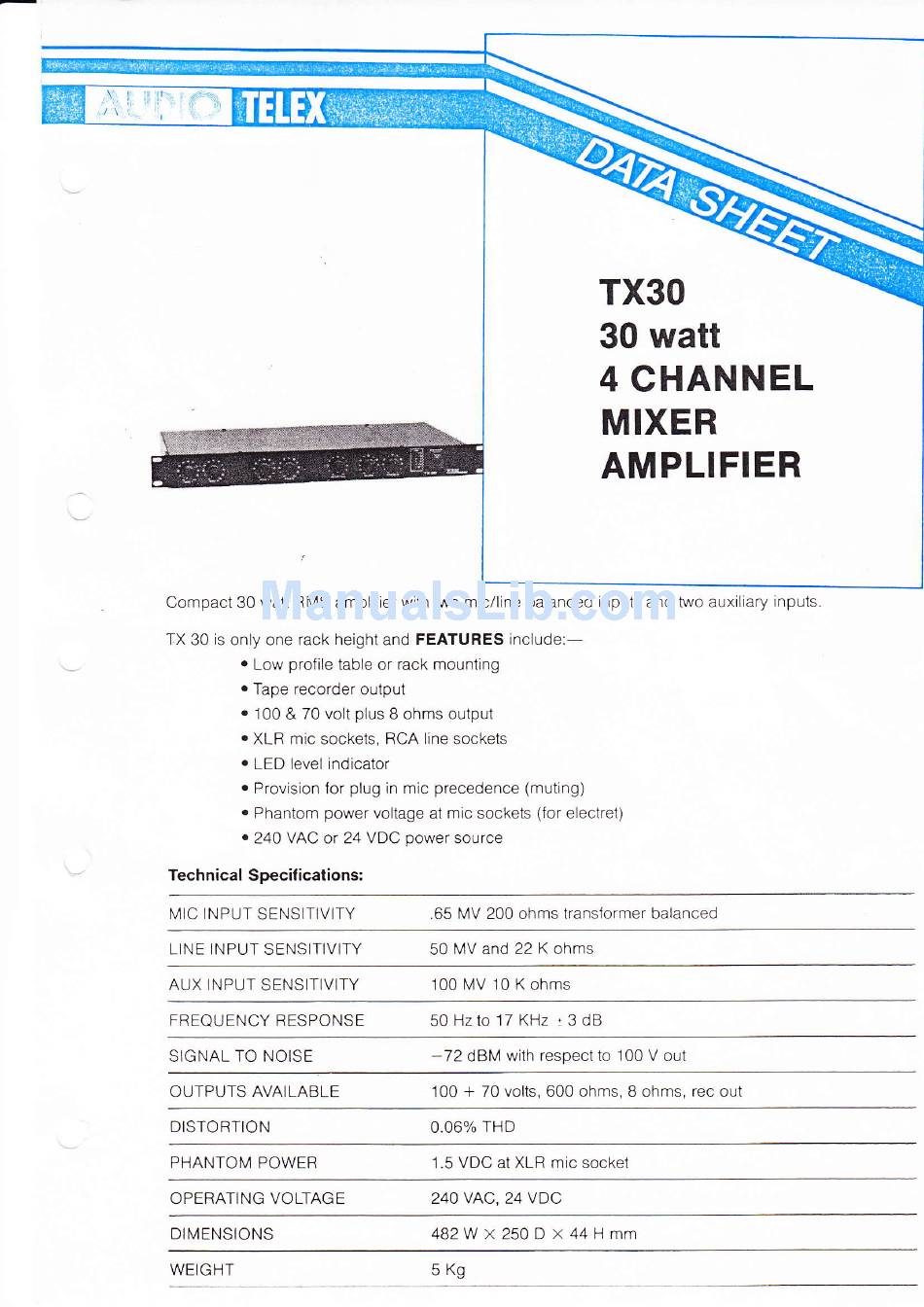

AUDIO TELEX TX30 Datasheet

TX30
30
watt
4
CHANNEL
MIXER
AMPLIFIER
Compact 30 watt RMS ampliiier with two mic/line balanced inputs and two auxiliary inputs.
TX
30
is
only one rack height and FEATURES
include:-
.
Low
prof ile
lable or rack mounting
.
Tape recorder output
.
100
& 70 volt plus 8 ohms output
.
XLR mic sockets, RCA
line sockets
.
LED level indicator
.
Provision for plug in mic precedence (muting)
.
Phantom power voltage at mic sockets
(1or
elecket)
.
240
VAC
ot 24 VDC power source
Technical Specilications:
IMIC
INPUT SENSITIVITY
.65 wV 200 ohms transformer balanced
LINE INPUT SENSITIVITY 50
MV
and 22 K ohms
AUX INPUT SENSITIVITY 100 IVV 10 K ohms
FREOUENCY RESPONSE 50
Hzto
17
KHz r
3 dB
SIGNAL TO NOISE
-72
dBt/
with respecl
to
100 V out
OUTPUTS AVAILABLE 100
+
70 volts, 600 ohms,
B
ohms, rec out
DISTO
RTION 0.06% THD
PHANTOM POWER
1
.5
VDC at XLR mic socket
OPERATING VOLIAGE 240 VAC, 24 VDC
DIIVENSIONS
4B2WX250Dx44Hmm
WEIGHT
5Kg
