Page 1: Service Information
SERVICE INFORMATION AUDIO TELEX ACM250 MIXER AMPLIFIER CONTENTS: OPERATION MANUAL SCHEMATIC DIAGRAMS Australian Monitor 1 Clyde Street, Silverwater NSW 2128 Australia +61 2 9647 1411 www.australianmonitor.com.au... -
Page 2: Mixer Amplifier
AUililDililr@ coMMUNICATIONSPTYLTD ACM250 Amplifier Mixer Ouditv EndorseA Audio Telex Communications Pty Ltd 001345482 lncorporated NSW & ACT & Beaconsfield Street CommercialRoad Middleborough Road 221277 Private Bag 149 HillVlC 3128 Silverwater NSW 2128 Fortitude Valley QLD 4006 Australia 07 38521312... -
Page 3: Product Description

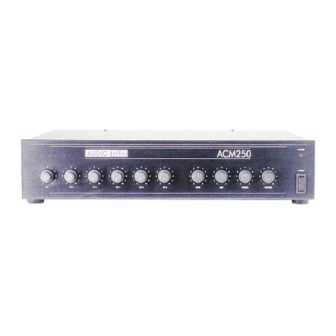

Amplifier ACM250 Mixer Product Description ACM250 mixer amplifier designed commercial installations. VAC, operates 50Hz VAC, 60Hz with factory modihcation) and may desk or rack mounted optional mount kit. rack ACM250 delivers watts into load 4 ohms, 70 volt line. ACM250... -
Page 4: Rear Panel Connections
XLR line level balanced output provides a of 700mV to allow for maximum connection 6 power amplifiers. Simply run balanced cable from line out of ACM250 line input of power amplifier. conaections are: pin #l-earttr; pin #2-signal (high, +); pin #3-signal (low,... -
Page 5: Other Features
This pot behind the level for Bass adjustment adjusts the tones. available ACM250 include: Tones on the Evacuation Tone (to Australian Standard A52220.1.2) Alert (to Australian Tone Standard A52220.1.2) Bell... - Page 6 680R 220K 680R IC2B LM1458 150P 680R 150P 6 XLR 680R IC3A LM1458 220K 150P (CD) 220K 150P 680R 680R IC2A LM1458 150P ACM250 MIC INPUT Title CD6238-1 Size Number Revision Date: 16-Oct-2002 Sheet of File: C:\Protel Files\CDTRAX\CD6238-1.DDB Drawn By:...
- Page 7 HI TEMP X4/1 LM3340 100u 560R SLOW START 820P HT PTC ALERT 4X 10K X2/8 FAN PTC BELL X2/7 ACM250 MIXER EVAC X2/2 Title PRE AN CD6239-1 Size Number Revision 470R Date: 16-Oct-2002 Sheet of File: C:\Protel Files\CDTRAX\CD6239-1.DDB Drawn By:...
- Page 8 AG(1/2VCC) TAPE OUT TAPE OUT .47u 100K .03u 100R INPUT IC3A IC2A LM1458 2180C INSERT LM1458 IC6A 820R .03u 100k IC1B EXT 500K POT 1458 IC5B LM1458 LM1458 120k IC2B IC5A LM1458 100k VOX RELAY 2180C 100K 100K IC1A 12VDC 1458 IC3A LM1458...
- Page 9 100DEG 100R 500R 470R 7818 BC640 100u X2/1 10A SB 4A SB 240VAC X2/6 X2/2 10A SB +45VDC X2/3 PLEASE NOTE: V10-V19=TIP35C X2/8 R50-59=.22R ACM250 POWER AMP Title CD6240-1 Size Number Revision Date: 16-Oct-2002 Sheet of File: C:\Protel Files\CDTRAX\CD6240-11.DDBDrawn By:...
- Page 10 100DEG 100R 500R 470R 7818 BC640 100u X2/1 10A SB 6.3A-SB 240VAC X2/6 X2/2 10A SB +45VDC X2/3 PLEASE NOTE: V10-V19=TIP35C X2/8 R50-59=.22R ACM250 POWER AMP Title CD6240-1 Size Number Revision Date: 14-Apr-2004 Sheet of File: C:\PDF CCT\CD6240-12.DDB Drawn By:...
- Page 11 TO OUTPUTS OUTPUT TRANSFORMER V+ 35V TIP42C TO SPEAKERS SPST TRANS5 1N40001 TO OUTPUTS 470UF 50V 470K ACM250 DETHUMP REV 1 Drawn by A.Dias...
