OHV155-204509EPage 1 of 5

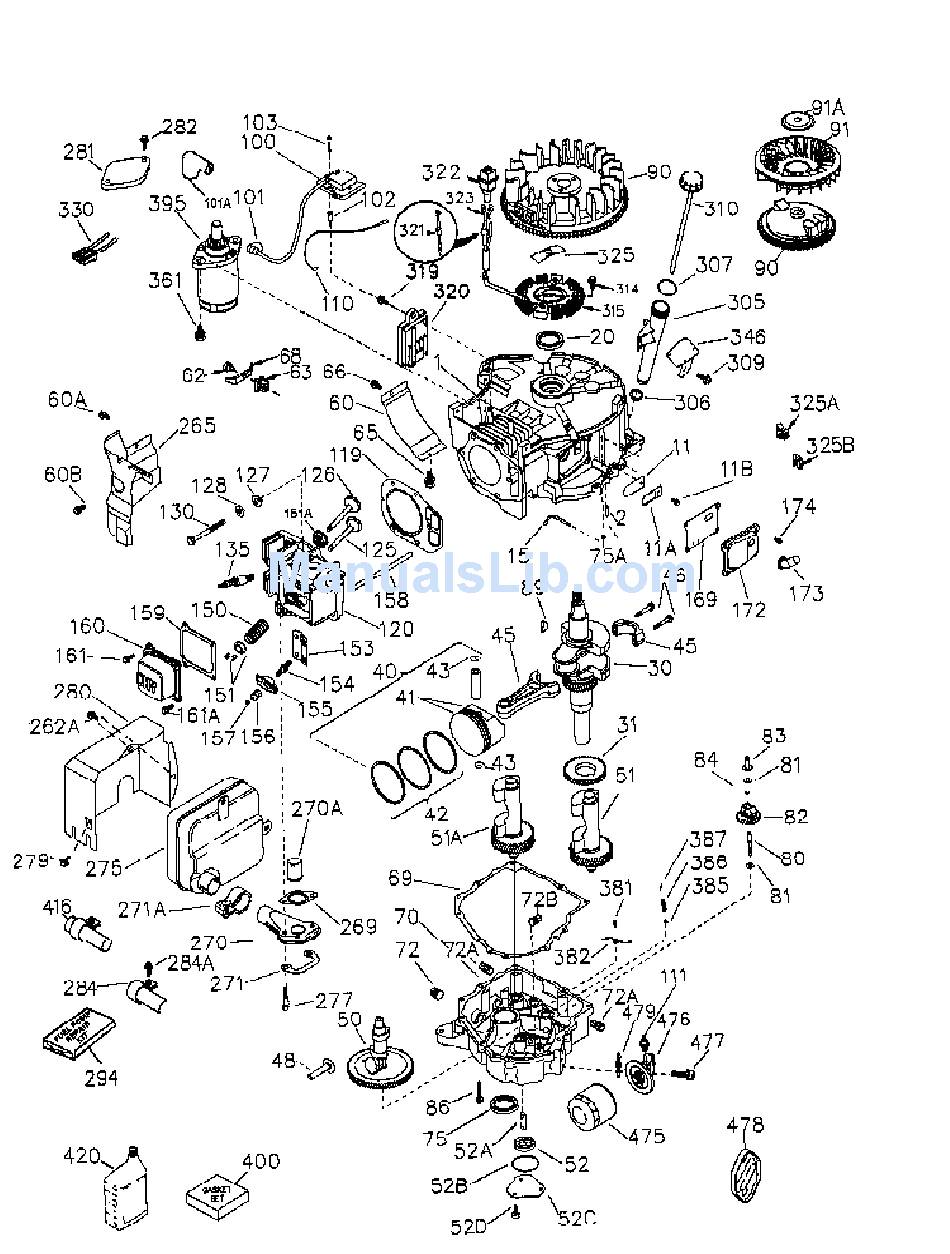

Engine Parts List #1
Previous
Page
Next
Page
1
2
3
4
5
Advertisement
Related Manuals for Tecumseh OHV155-204509E
Engine Tecumseh LH195SA/LH195SP (HSSK40-55) Operator's Manual
Horizontal crankshaft air-cooled 4-cycle engine (32 pages)
Engine Tecumseh 100 Operator's Manual
Snow blower engine (8 pages)
Engine TECUMSEH HH100 Handbook
8 to 18 hp cast iron four cycle engines (78 pages)
Engine Tecumseh LH318EA (HM80-90) Operator's Manual
Four-cycle engine • horizontal crankshaft • air-cooled (40 pages)
Engine Tecumseh LEV90 Basic Troubleshooting And Service Information
(29 pages)
Engine Tecumseh OH195XA Operator's Manual
(24 pages)
Engine Tecumseh OH195 Operator's Manual
Four-cycle engine - horizontal crankshaft - air-cooled (24 pages)
Engine Tecumseh OH318 Operator's Manual
Four-cycle engine - horizontal crankshaft - air-cooled (24 pages)
Engine TECUMSEH OHH60-71116C Parts List
(5 pages)
Engine TECUMSEH OHM120-224602A Parts List
(6 pages)
Engine Tecumseh Snow King LH195SP Operator's Manual
4-cycle snow king engine horizontal crankshaft air-cooled (33 pages)
Engine Tecumseh HMSK80 Operator's Manual
(9 pages)
Engine Tecumseh OHH45, OHH50; OHH55; OHH60; OHH65 Operator's Manual
Hotizontal crankshaft air cooled four-cycle engine (9 pages)
Engine Tecumseh OHH45 Operator's Manual
Horizontal crankshaft air cooled four-cycle engine (9 pages)
Engine Tecumseh OHV110 Operator's Manual
Four-cycle engine - vertical crankshaft - air-cooled (24 pages)
Engine Tecumseh OHV140 Operator's Manual
Four-cycle engine - vertical crankshaft - air-cooled (24 pages)
Summary of Contents for Tecumseh OHV155-204509E
Page 1
OHV155-204509EPage 1 of 5 Engine Parts List #1...
Page 2
Ref # Part Number Description 36300A Cylinder (Incl. 2,11B,20,72B & 314) 27652 Dowel Pin 36303 Breather Plate 36302 Check Valve 650902 Screw, 10-32 x 7/16" 36307 Governor Rod 36301 Oil Seal 36308 Crankshaft 36324 Counterbalance Gear 36312 Piston, Pin & Ring Set (Std.) 36313 Piston, Pin &...
Page 3
Ref # Part Number Description 36337 * Cylinder Head Gasket 36488 Cylinder Head 35308 Exhaust Valve (Std.) 35433 Exhaust Valve (1/32" OS) 35309 Intake Valve (Std.) 35432 Intake Valve (1/32" OS) 650691 Washer 650690 Belleville Washer 650946 Screw, 5/16-18 x 2-45/64" 34645 Spark Plug (RN4C) 33507...
Page 4
OHV155-204509EPage 4 of 5 Engine Parts List #2...
Page 5
Ref # Part Number Description 28277 Washer 36346A Governor Lever 29916 Governor Lever Clamp 651028 Screw, Torx T-15, 8-32 x 3/8" 36414 Extension Spring 30322 Lock Nut, 8-32 29826 Screw, 10-32 x 3/4" 29918 Lock Washer 29216 Lock Nut, 10-32 29642 Retaining Ring 650737...
