Summary of Contents for Tecumseh OHH60-71116C

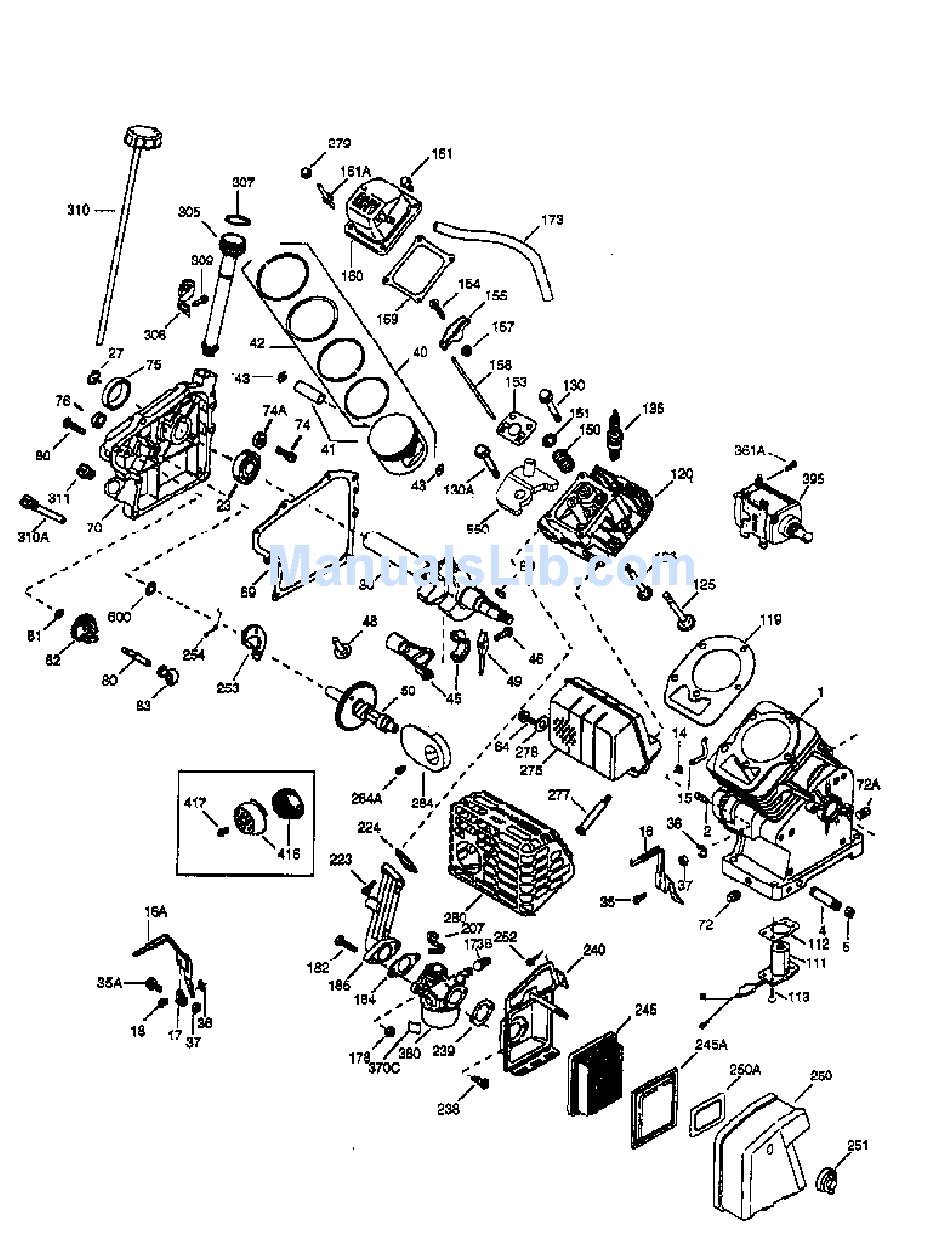

- Page 1 OHH60-71116C Page 1 of 5 Engine Parts List #1...
- Page 2 Ref # Part Number Description 37126 Cylinder (Incl. 2, 20 & 72) 26727 Dowel Pin 651052 Washer 37158 Governor Rod 37162 Governor Lever 34745 Crankshaft 651053 Screw, Torx T-25, 10-32 x 63/64" 29216 Lock Nut, 10-32 37109 Retaining Ring 40004 Piston, Pin &...
- Page 3 Ref # Part Number Description 36675A Breather Tube 650852 Nut, 1/4-20 650451 Screw, 1/4-20 x 1" 26756 * Carburetor To Intake Pipe Gasket 36631 Intake Pipe 36632 Throttle Link 650451 Screw, 1/4-20 x 1" 36581 * Intake Pipe Gasket 28820 Screw, 10-32 x 1/2"...
- Page 4 OHH60-71116C Page 4 of 5 Engine Parts List #2...
- Page 5 Ref # Part Number Description 37163 Extension Spring 32600 Oil Seal 36622 Air Baffle (Right) 36621 Air Baffle (Left) 30200 Screw, 10-24 x 9/16" 36623A Blower Housing Extension 30200 Screw, 10-24 x 9/16" 611205 Flywheel 650815 Belleville Washer 650816 Flywheel Nut 651016 Lock Nut, 10-32 30845A...
