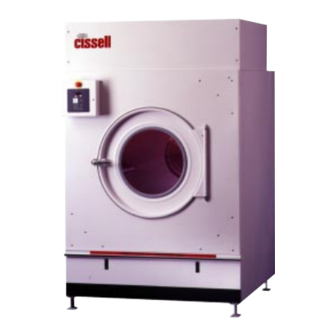

Cissell MANHD175LB Owner's Manual

175 lb. hd laundry dryer gas: natural and lp steam
Hide thumbs
Table of Contents

Advertisement

Quick Links

OWNER'S MANUAL
175 lb. HD LAUNDRY DRYER
Gas: Natural and LP
Steam
Cissell Manufacturing Co.
HD175
831 S. First St. - P.O.Box 32270 - Louisville, Ky. - 40232-2270
Tel: (502) 587-1292 - Fax: (502) 585-2333 -
Sales Fax: (502) 585-3625 - Service/Parts Fax: (502) 681-1275
THIS MANUAL MUST BE GIVEN TO THE EQUIPMENT OWNER
Page 1
MAN 175lb 3/06

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MANHD175LB and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Cissell MANHD175LB

Summary of Contents for Cissell MANHD175LB

  • Page 1: Model Numbers & Company Address

    OWNER'S MANUAL 175 lb. HD LAUNDRY DRYER Gas: Natural and LP Steam Cissell Manufacturing Co. HD175 831 S. First St. - P.O.Box 32270 - Louisville, Ky. - 40232-2270 Tel: (502) 587-1292 - Fax: (502) 585-2333 - Sales Fax: (502) 585-3625 - Service/Parts Fax: (502) 681-1275...

  • Page 2: Important Notices

    IMPORTANT NOTICES—PLEASE READ For optimum efficiency and safety, we recommend that you read the manual before operating the equipment. Store this manual in a file or binder and keep for future reference. WARNING: For your safety, the information in this manual must be followed to minimize the risk of fire or explosion or to prevent property damage, personal injury or loss of life.
  • Page 3 WARNING: To avoid fire hazard, do not dry articles containing foam rubber or similar texture materials. Do not put into this dryer flammable items such as baby bed mattresses, throw rugs,undergarments (brassieres, etc.) and other items which use rubber as padding or backing. Rubber easily oxidizes causing excessive heat and possible fire.
  • Page 4 ATTENTION: L’ACHETEUR DOIT PLACER L’AVERTISSEMENT SUIVANT DANS UN ENDROIT CLAIR ET VISIBLE: AVERTISSEMENT. Assurez-vous de bien suivre les instructions donnees dans cette notice pour reduire au minimum le risque d’incendie ou d’explosion ou pour eviter tuot dommage materiel, toute blessure ou la mort. __ Ne pas entreposer ni utiliser d’essence ni d’autres vapeurs ou liquides inflammables dans le voisinage de cet appareil ou de tout autre...

  • Page 5: Dryer Warranty

    Cissell’s factory, transportation prepaid, within the applicable warranty period and found by Cissell to have been defective, and in no event shall Cissell be liable for damages of any kind, whether for any injury to persons or property or for any special or consequential damages.

  • Page 6: Table Of Contents

    TABLE OF CONTENTS 175 LB. LAUNDRY DRYER PAGE Model Numbers & Company Address................. 1 Important Notices ......................2-4 Dryer Warranty ........................5 Table of Contents ........................ 6 Warnings, Cautionary Notes and Symbols ................ 7-8 Unpacking and General Installation ................9-10 Dryer Specifications ....................

  • Page 7: Warnings, Cautionary Notes And Symbols

    SYMBOLS The following symbols are used in this manual and/or on the machine. Symbol Description NOTE! Hot! Do Not Touch Heib! Nicht Beruhren Haute temperature! Ne pas toucher Caliente! no tocar Heet! Niet Aanraken dangerous voltage tension dangereuse Gafahrliche elektrische Spannung tension peligrosa marche conectado...
  • Page 8 SYMBOLS The following symbols are used in this manual and/or on the machine. Symbol Description rotation in two directions rotation dans les deux sens Drehbewigung in zwei Richtungen movimiento rotativo en los dos sentidos direction of rotation sens de mouvement continu de rotation Drehbewegung in Pfeilrichtung movimiento giratorio o rotatorio en el sentido de la flecha...

  • Page 9: Unpacking And General Installation

    Unpacking/General Installation (All Dryers) This dryer is packed in a large (heavy-duty) protective wooden crate. UNPACKING Upon arrival of the equipment, any damage in shipment should be reported to the carrier immediately. Upon determining permanent location of a unit, care should be taken in movement and placement of equipment.
  • Page 10 General Installation (All Dryers) Position dryer for the least amount of exhaust piping and elbows, GENERAL INSTALLATION and allow free access to the rear of dryer for future servicing of belts, pulleys and motors. Installation clearance from all (ALL DRYERS) combustable material for gas dryers is 24”...

  • Page 11: Dryer Specifications

    175 LB. GAS DRYER SPECIFICATIONS (ILLUSTRATION) REAR VIEW ALL DIMENSIONS ARE +/- 1/4” (6.4 MM) AND ARE SUBJECT TO CHANGE WITHOUT NO- TICE Page 11...
  • Page 12 175 LB GAS DRYER SPECIFICATIONS (ILLUSTRATION) TOP VIEW DIMENSIONS REAR VIEW DIMENSIONS REAR COVER NOT SHOWN ALL DIMENSIONS ARE +/- 1/4” (6.4 MM) AND ARE SUBJECT TO CHANGE WITHOUT NO- TICE Page 12...
  • Page 13 175 LB. STEAM DRYER SPECIFICATIONS (ILLUSTRATION) REAR VIEW ALL DIMENSIONS ARE +/- 1/4” (6.4 MM) AND ARE SUBJECT TO CHANGE WITHOUT NO- TICE Page 13...
  • Page 14 175 LB. STEAM DRYER SPECIFICATIONS (ILLUSTRATION) TOP VIEW DIMENSIONS REAR VIEW DIMENSIONS REAR COVER NOT SHOWN ALL DIMENSIONS ARE +/- 1/4” (6.4 MM) AND ARE SUBJECT TO CHANGE WITHOUT NO- TICE Page 14...
  • Page 15 Specifications for 175 lb. Gas Heated Dryer Basket Capacity .........175 lb (79 kg) Dryweight GENERAL SPECIFICATIONS FOR Electrical Specifications ......208-240/60/3, 480/60/3, 175 lb. GAS HEATED 220-380/50/3 DRYERS Motor Size: Basket ........2 Hp (1.49 kW) Motor Size: Fan ........5 Hp (3.73 kW) Floor Space ..........89”...
  • Page 16 Specifications for 175 lb. Steam Heated Dryer Basket Capacity .........175 lb (79 kg) GENERAL SPECIFICATIONS FOR Electrical Specifications ......208-240/60/3, 480/60/3, 175 lb. STEAM HEATED 220-380/50/3 DRYERS Motor Size: Basket ........2 Hp (1.49 kW) Motor Size: Fan ........5 Hp (3.73 kW) Floor Space ..........89”...
  • Page 17 175 lb. Steam Heated Laundry Dryers - Specifications Dryers must be electrically grounded by a separate #14 or larger ELECTRICAL green wire from the grounding terminal within the service connection CONNECTIONS box to a cold water pipe. In all cases, the grounding method must (ALL DRYERS) comply with local electrical code requirements;...

  • Page 18: Main Drive Motor List

    Main Drive Motors Motor No. Voltage Phase Amps Enclosure MTR316 208-240 6.0 - 5.4 1750 Basket TEFC MTR316 440 - 480 1750 Basket TEFC MTR316 220/380 6.0/3.4 1425 Basket TEFC MTR316 240/415 5.5/3.2 1425 Basket TEFC MTR309 208-240 13.0 3450 MTR309 440-480 3450...

  • Page 19: Gas Pipe Size Chart

    Gas Pipe Size Chart TOTAL BTU/HR GAS PIPE SIZE FOR 1000 BTU (250 KCAL) NATURAL GAS (for LP Gas correct AT 7” (17.8 CM) W.C. PRESSURE TOTAL total BTU/HR below by KCAL multiplying by .6) In figuring total length of pipe, make allowance for tees and elbows. HOUR (25 ft.) (50 ft.)
  • Page 20 Gas Piping Installation (Illustration) Page 20...

  • Page 21: Gas Piping Installation

    Gas Piping Installation 1. Gas service installation must conform with local codes, or in GAS PIPING the absence of local codes with the National Fuel Gas Code, INSTALLATION ANSI Z223.1 or the CAN/CGA-B149, Installation Codes. 2. Check rating plate located on rear wall of dryer, for type of gas to equip the dryer and the altitude (elevation).

  • Page 22: Steam Piping Installation

    Steam Piping Installation (Illustration) INDIVIDUALLY TRAPPED COILS ARE RECOMMENDED RATHER THAN MANFOLDING RETURN INTO ONE TRAP. Page 22...

  • Page 23: Steam Piping Installation

    Steam Piping - Installation Instructions 1. Set and anchor dryer in position. Machine should be level to assure STEAM PIPING proper steam circulation. INSTALLATION INSTRUCTIONS 2. To prevent condensate draining from headers to dryer, piping should have a minimum 12” above respective header. Do not make steam connection to header with a horizontal or downwardly facing tee or elbow.
  • Page 24 Dryer Installation with Multiple Exhaust (Illustration) Page 24...

  • Page 25: Dryer Installation With Multiple Exhaust

    Dryer Installation with Multiple Exhaust DRYER INSTALLATION For Exhaust Duct more than 14 feet and 2 elbows equivalent and more than 0.6 inches static pressure. WITH MULTIPLE (See illustration on previous page.) EXHAUST 1. Make-up air from outside building may enter enclosure from top or side walls.

  • Page 26: Dryer Installation With Multiple Exhaust

    Dryer Installation with Multiple Exhaust For Exhaust Duct less than 14 feet and 2 elbows equivalent and less than 0.6 inches static pressure. DRYER EXHAUSTS Area of section "A-A" must be equal to the sum of dryer exhaust pipes entering muliple exhaust pipe. (See chart below.) MODELS: L28FD30, L28US30, L36FD30, L36UR30, L36CD36, L44FD42 No.

  • Page 27: Dryer Installation With Separate Exhaust

    Dryer Installation With Separate Exhaust (Preferred) For ductwork less than 14 feet and 2 elbows equivalent and less than 0.6 DRYER INSTALLATION inches static pressure. WITH SEPARATE EXHAUST (PREFERRED) NEVER exhaust the dryer into a chimney. NEVER install wire mesh screen over the exhaust or makeup air area.

  • Page 28: Exhaust And Venting

    Exhaust and Venting Nothing is more important than air flow for the proper operation of a DRYER AIR FLOW clothes dryer. A dryer is a pump which draws make-up air from the out-of- INSTALLATION doors, through the heater, through the clothes and then forces the air through the exhaust duct back to the out-of-doors.

  • Page 29: Rules For Safe Operation Of Your Dryer

    Rules for Safe Operation of Your Dryer RULES FOR SAFE RULES OPERATION OF YOUR 1. Be sure your dryer is installed properly in accordance with DRYER the recommended instructions. 2. CAUTION Be safe - Shut main electrical power supply and gas supply off externally before attempting service.

  • Page 30: Rules For Safe Operation Of Your Dryer

    Rules for Safe Operation of Your Dryer CAUTION Synthetic solvent fumes from dry cleaning machines create acids when drawn through the dryer. These acid fumes cause rusting of painted parts, pitting of bright plated parts and completely removes the zinc from galvanized metal parts, such as the tumbler basket.

  • Page 31: Service Savers

    Service Savers To help you troubleshoot the dryer, we list below the most TROUBLESHOOTING common reasons for service calls and some answers to the problems. Before you call service, please review the following items: DRYER WON’T START DRYER WON'T START 1.

  • Page 32: Troubleshooting Chart

    Troubleshooting Chart TROUBLE CAUSE REMEDY Basket motor runs, but V-Belt broken. Replace V-Belt. basket will not revolve. V-Belt loose. Adjust belt tension. Motor Pulley loose. Tighten Set Screw. Basket overloaded. Remove load. Not leveled. Check manual for proper leveling procedures. Dryer noisy or vibrating.
  • Page 33 Troubleshooting Chart TROUBLE CAUSE REMEDY Dryer runs, but no heat Line fuse or heater circuit fuse Replace fuse. (continued). blown to unit. Defective door switch. Check continuity across contacts, opened & closed. If defective, replace door switch. Air switch not operating. Clean out lint compartment daily.
  • Page 34 Troubleshooting Chart TROUBLE CAUSE REMEDY Dryer runs, but no heat Defective thermostat. Check continuity across thermostat. (continued). Limiting or safety thermostats are normally closed. If open, replace thermostat. Defective safety overload thermo- See above. stat. Lint compartment drawer open. Close drawer. Main burners Dirt in burner.
  • Page 35 Troubleshooting Chart TROUBLE CAUSE REMEDY Motor will not start. No power. Check fuses on circuit breakers. Make sure main control switch is ON. Incorrect power. Check power source: voltage, phase, and frequency must be the same as specified on electrical rating plate.
  • Page 36 Troubleshooting Chart TROUBLE CAUSE REMEDY Defective timer. Replace timer. Dryer does not stop at end of time period (6). Valve closed. Check all valves in steam supply and return Dryer runs no steam to -- make sure they are open. coils.

  • Page 37: Two Timer Models

    Two Timer Models—Figures 1, 2, and 3 (Illustrations) Page 37...
  • Page 38 Operating Instructions - Two Timer Models OPERATING INSTRUCTIONS - After loading the dryer tumbler with water washed clothes load, proceed to close the loading door. For better drying, do not load dryer with combination of TWO TIMER MODELS garments that twist. Turn the 60-minute drying timer to the desired drying time.

  • Page 39: Direct Spark Ignition Operation

    Direct-Spark Ignition Operation NOTE: Some models are equipped with a dual ignition system. DIRECT SPARK The dual ignition system contains two direct spark IGNITION ignition modules in parallel. Each module has its own OPERATION flame sense circuit and acts independently of the other. If either bonnet limit thermostat opens because of high heat or flame impingement, the entire ignition system will shut down.
  • Page 40 DIRECT SPARK IGNITION OPERATION FLOW CHART The DSI module is powered by a 24 volts AC suppled by a step-down transformer in series with eight safety interlocks: A. Timer switching device (1) B. Main door and lint door switches (2) C.

  • Page 41: General Maintenance

    Maintenance—General CLEAN LINT TRAP DAILY. Remove lint before starting day’s operation. A clean lint trap will increase DAILY the efficiency of the dryer, as the moisture-laden air will be exhausted more quickly. DRYER AREA. Keep dryer area clean and free from combustible materials, gasoline and other flammable vapors and liquids.

  • Page 42: Basket Alignment

    BASKET ALIGNMENT Jacket Rear View BASKET TOO LOW If there are shims under Bearing B; 1. Loosen bolts 2. Remove shim(s). 3. Tighten bolts - check alignment. If there are no shims under B; 1. Loosen bolts on bearing A. 2.
  • Page 43 Shimming the Basket and Spider Assembly (Illustration) Page 43...

  • Page 44: Shimming The Basket And Spider Assembly

    Shimming the Basket and Spider Assembly INSTRUCTIONS FOR This procedure is normally necessary when replacing either the basket or the spider assembly on any dryer. The alignment of these SHIMMING THE two parts is crucial in assuring a true running basket. BASKET AND SPIDER ASSEMBLY A.

  • Page 45: Air Switch Adjustment

    Air Switch Adjustment 1. Shut off current; disconnect leads and remove air switch. AIR SWITCH ADJUSTMENT 2. Lay air switch assembly on flat surface. Adjust air blade at “A” (figure 1) so that air blade lays flat and surface “B” is parallel to the flat surface.

  • Page 46: Pulley And Belt Maintenance

    Pulley and Belt Maintenance DRIVE PULLEYS DRIVE PULLEYS AND BELTS AND BELTS Before placing the dryer into operation, ensure that the drive belts and pulleys are in good condition and have sufficient belt tension. Check belt tension after dryer is in operation 2-3 weeks. Tighten as necessary.

  • Page 47: Front Of Dryer - Parts

    175 LB LAUNDRY DRYER (FRONT EXPLODED VIEW) EA-11621-0 LINT DOOR SWITCH TU14490 FRONT VALANCE ESA-00961-0 SWITCH ASSEMBLY TU14537 LINT DOOR ASM. IB140 3/8 FLAT WASHER TU14542 DMP CONTROL ASM. TU15512 JACKET WELDED ASM. TU3246 3/8-16 SCREW TU14360 FRONT PANEL ASM. TU6854 #14 S.M.

  • Page 48: Rear Of Dryer - Parts

    175 LB LAUNDRY DRYER (REAR EXPLODED VIEW)
  • Page 49 PARTS - 175 LB LAUNDRY DRYER (REAR) TU14372 BRG, 2 1/2" PILLOW BLOCK 19 TU16091 BELT, BX47 (60Hz) TUX576 BUSHING, SK-2 ½ TU16085 BELT, BX46 (50Hz) TU14414 ROTATION SENSOR 20 TU16043 SHEAVE, 8.6” DIA. (60 Hz) TU14454 SCREW CAP,H.H 3/4-10 X 3 TU16064 SHEAVE, 8.0”...

  • Page 50: Front Panel And Door Assembly

    TU14360 - FRONT PANEL ASSEMBLY * Cover plate used for DMP and PRO HC. Ref. Ref. Part No. Description Part No. Description EA-00652-0 Reed Switch SB-00975-0 #6-32 Screw TU5503 Door latch spacer PIF172 Hinge post bearing TU15966 Gasket TU14359 Front panel (Specify color) TU15107 Door glass - 20 1/4”...

  • Page 51: Lint Door Assembly

    LINT DOOR ASSEMBLY LA-00124-0 LATCH SB-00836-0 PANCAKE SCREW SB-00949-0 FASTENER TU14357 LINT DR. W/A TU14529 HANDLE TU14530 BUMPER TU14594 LABEL, ENGLISH TU15410 LABEL, 5 LANGUAGE TU14640 TRIM, KICKPLATE Page 51...

  • Page 52: Two Timer Control Panel Assembly

    2 Timer Control Panel Assembly Ref. Part Ref. Part Description Description ET208 #6-32 x 1/4” Binding Hd Screw TU15406WHT Panel W/A F1300 24V Relay TU2555 Knob Assembly FG147 Toggle Switch TU3805 #15-32 Hex Nut TU12874 Reversing Board TU7733 #8-18 x 1/2” Self Drilling Screw TU12932 Timer (0-60 Minutes) TU8629...

  • Page 53: Dmp Control Box Assembly

    DMP Control Panel Assembly Part No. Description TU14469WHT DMP Control Panel Welded Assembly TU15184 Opl Dmp, Rt-Side (Dn) Overlay TU14137 Buzzer, 24V TU14435 Emergency Stop (50 Hz) TU15724 7/8” Button Plug (60 Hz) TU3400 #6-32 Hex Nut TU14404 Controller Opl/Coin Board, New M270 #6 Int Tooth Lock Washer Page 53...

  • Page 54: Pro Control Panel Assembly

    Pro Control Panel Assembly Ref. Part No. Description 254/00039/00 Overlay 254/00070/00 Pro Control M261 #8-32 Screw M270 Lockwasher TU14435 Emergency Stop (50 Hz) TU15724 7/8” Button Plug (60 Hz) TU14442WHT Control Panel Welded Assembly TU14701 Spacer TU14727WHT Cover TU3400 #6-32 Nut TU14452 Pro / ProHC EPROM Chip Page 54...

  • Page 55: Prohc Control Panel Assembly

    ProHc Control Panel Assembly Ref. Part No. Description 254/00018/00 Overlay 254/00070/00 ProHC Control M261 #8-32 Screw M270 Lock Washer TU14435 Emergency Stop (50 Hz) TU15724 7/8” Button Plug (60 Hz) TU14442WHT Control Panel W/A TU14701 Spacer TU14727WHT Cover TU3400 #6-32 Nut TU14452 Pro / ProHC EPROM Chip Page 55...

  • Page 56: Dmp Sensor Assembly

    DMP THERMOSTAT ASSEMBLY Ref. Part No. Description CA-13172-0 MTG. Bracket EA-00411-0 Switch - 220 Degree SB-00828-0 #8-32 x 1/2 Screw SB-00952-0 #6-32 x 3/8 Screw TU11991 Thermistor TU3266 #8-32 Hex Nut TU3400 #6-32 Hex Nut Page 56...

  • Page 57: Two Timer Sensor Assembly

    2 TIMER SENSOR ASSEMBLY Ref. Part No. Description TU6029 - Thermostat Assembly TU2477 Thermostat #AR594 TU2486 Bracket TU3801 Nut, speed #C18784-010-4 Page 57...

  • Page 58: Pro Sensor Assembly

    PRO SENSOR ASSEMBLY Ref. Part No. Description TU15464 - Sensor Assembly 254/00072/10 Heat Thermostat CA-23067-0 Thermostat EA-00411-0 Switch, 220 Degrees SB-00828-0 Screw, Mach. P.H. #8-32 X 1/2 SB-00952-0 Screw, P.H. #6-32 x 3/8 TU3266 Nut, Hex #8-32 TU3400 Nut, Hex #6-32 Page 58...

  • Page 59: Prohc Sensor Assembly

    LOWER PROHC SENSOR ASSEMBLY - UPPER and Ref. Part No. Description TU14724 PROHC Sensor assembly (upper) SB-00952-0 Screw, #6-32x 3/8” long TU14693 Mounting plate upper probe TU14694 Cover plate, probe TU3400 Nut, #6-32 TU7733 Screw, self drill #8-18x 1/2” long 254/00060/00 Humidity sensor UPPER ASSEMBLY...

  • Page 60: Fan Assembly

    FAN MOTOR ASSEMBLY C249 NUT, 5/16-18 TU4706 PLATE, MTR. MOUNT IB140 WASHER, 3/8" FLAT TU4787 NUT, 3/8-16 HEX MTR* SEE MOTOR CHART TU5439 SCREW, 5/16-18 H.H. (PAGE 18) TU6723 BUSHING, 1 1/8" - H OP380 SCREW, 3/8-16 H.H. TUX220 FAN, 15" DIA. TU14336 MTR.

  • Page 61: Basket/Spider Assembly

    TU14430 - BASKET/SPIDER ASSEMBLY TU10686 1/2-13 HEX NUT TU14326 ASM, BASKET TU16060 175# SPIDER ASM. TU2831 1/2 LOCKWASHER TUX285 1/2-13 SCREW Page 61...

  • Page 62: Reversing Control Panel Assembly

    TU14765 - REVERSING CONTROL PANEL ASSEMBLY CB36 SCREW, 1/4-20 EA-00673 MTR. CONTACTOR EA-00685 REV. CONTACTOR TU13480 TRANSFORMER TU14706 REV. OVERLOAD TU14707 MTR. OVERLOAD TU7733 #8 SELF DRILL SCR. TUX601 CTRL. BOX COVER TUX197 MTG. PLATE Page 62...

  • Page 63: Gas Bonnet Assembly

    TU14429 - 24V GAS BONNET ASSEMBLY 39060412 3/4 x 3/4 x 1-1/4 TEE TU4600 3/4" UNION CB36 1/4-20 x 1/2 SCR. TU4602 3/4"-90 STREET ELL. GA-00764-0 ELECTRODE TU4605 3/4"-90 ELL. TU13678 THERMOSTAT TU4608 3/4" x 2" NIPPLE TU13695 T-STAT MTG. BRKT. TU4934 1/4-20 H.H.

  • Page 64: Steam Bonnet Assembly

    TU14398 - 24V STEAM BONNET ASSEMBLY CB36 SCREW, 1/4-20 x 1/2 TU4600 UNION, 3/4 TU13517 VALVE, 3/4 STEAM TU4605 ELL, 3/4 90 DEG. TU14397 ASM, BON. WELD TU4608 NIPPLE, 3/4 x 2” LG. TU1699 COIL, 6 x 10 STEAM TU4610 NIPPLE, 3/4 x 5”...

  • Page 65: Air Switch Assembly

    TU8206 - AIR SWICTH ASSEMBLY F888 E-RING TU1770 INSULATOR TU1771 #6 TINNERMAN NUT TU2463 ACTUATOR ARM TU3219 #6 x 1 S.M.S. TU3476 DECAL TU7733 #8 x 1/2 S.M.S. TU8155 MICRO SWITCH TU8171 BRACKET ASM. Page 65...

  • Page 66: Parts-Temperature Assembly

    Parts—Temperature Assembly TU6030—Consists of Ref. No. 1, 2, 3 1 TU5530 Mounting Bracket 2 TU1980 Thermostat 3 TU3593 Thermometer TU3816 Lens Replacement (Texas Gage ONLY) TU8475 Lens Replacement (Marshaltown Inst. ONLY) TU11193 Lens Replacement (Weiss—consult factory) TU13213 Lens Replacement (Weiss—consult factory) 4 TU490 Thermostat Knob—Fahrenheit TU491...

  • Page 67: Orifice Information

    NOTE: Specifications (propane) For conversion from natural gas to Propane—1.53 specific gravity propane gas. Calorific value—2,500 Btu/cu. ft. 1. Order: 6 each—TU3539 orifice with Gas Input—87,500 Btu/hour per no. 34 drill size. burner total 2 each—K555 natural gas to LP gas conversion kit and follow directions.
  • Page 68 Table for Ordering Overload Heaters for Overload Relays OVERLOAD HEATER TABLE Motor Full Load Amps (FLA) SF = 1.00 SF = 1.15 OR GREATER Heater Size 40 Deg. C 60 Deg. C 40 Deg. C 60 Deg. C Amb. Amb. or more Amb.

  • Page 69: Ordering Overload Heaters For Overload Relays

    Ordering Overload Heaters for Overload Relays ORDERING Properly sized overload heaters provide motor protection for the OVERLOAD HEATERS dryer. Improper heater size may allow the motor to be damaged, or FOR OVERLOAD could cause nuisance tripping. RELAYS Heater sizes are listed on the overload heater table on page 61. To use the table, refer to the motor rating plate and locate the full load amps (FLA), the service factor (SF), and the ambient temperature (Amb.).

  • Page 70: Minimum Dryer Make-Up Air Requirements

    Suggested Minimum Dryer Make-up Air Requirements Dryer Dryer Pocket Maximum Air Flow Duct Size For Required Make-up Model Capacity Rate per Pocket Service Connection Air Area per Pocket m3/h inch sq. inch cm2 C 30 ST 13.6 C 75 ST 1000 1700 1240...

  • Page 71: Recommended Spare Parts

    RECOMMENDED SPARE PARTS LIST EA-11621-0 LINT DOOR SWITCH TU14371 175# LINT SCREEN TUX572 190# LINT SCREEN MD-00337-0 MAGNET –READ SWITCH TU5288 GASKET DOOR RIM TU7169 DOOR GLASS GASKET EA-00652-0 READ SWITCH TUA2319H DOOR CATCH ASSY TU14435 EMERGENCY STOP TU8155 SWITCH, SPST AIR SWITCH EA-00685-0 REVERSING CONTROL, 24V COIL TU13463...
