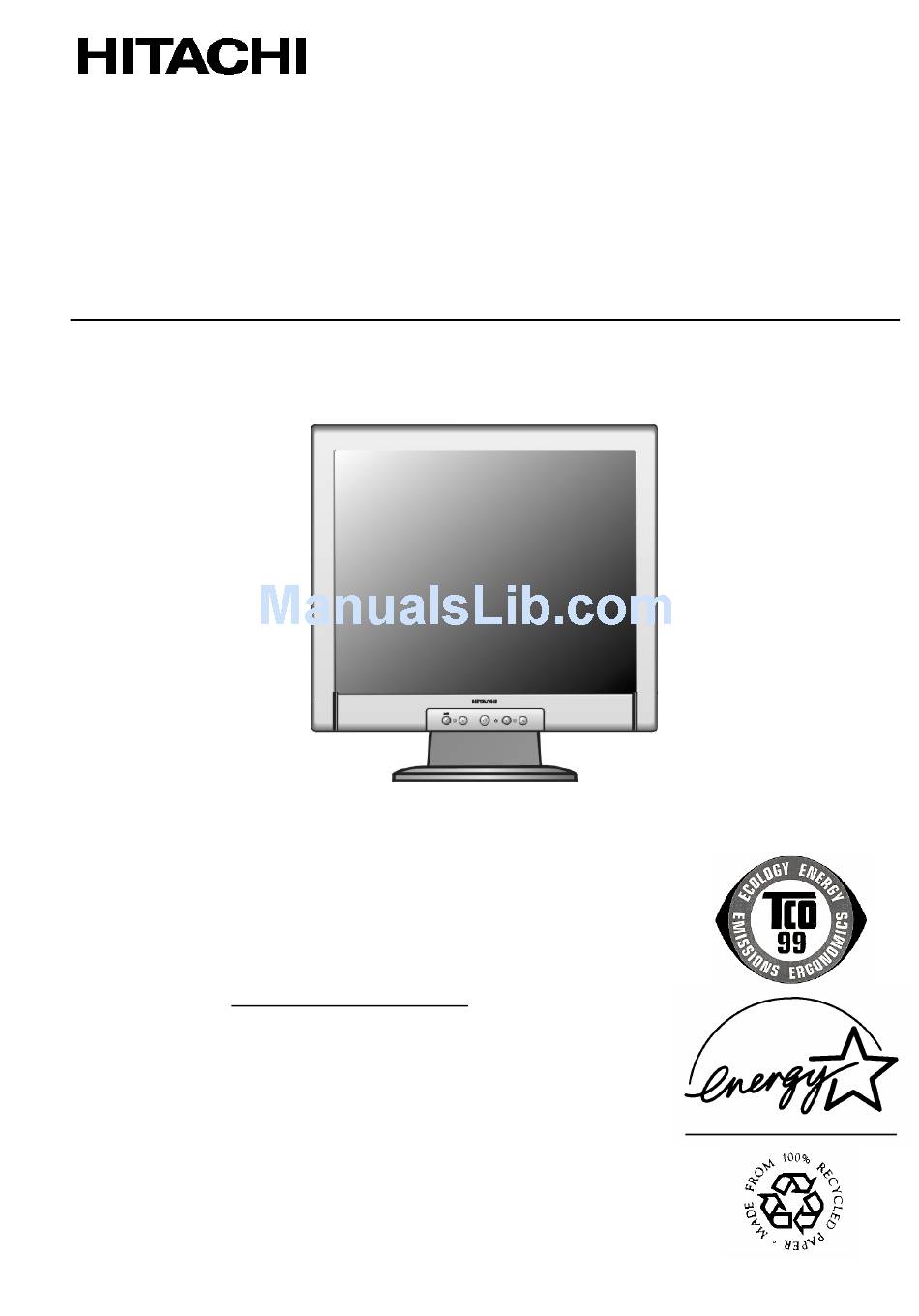

Hitachi CML190SXWB - 19" LCD Monitor User Manual

Colour/color lcd monitor
Hide thumbs


Quick Links

For future reference, record the serial number of your colour monitor.
The serial number is located on the rear of the monitor.
This monitor is E
computer equipped with VESA DPMS.
The E
emblem does not represent EPA endorsement
of any product or service.
As an E
product meets the E
compliant when used with a
Partner, Hitachi,Ltd. has determined that this
guidelines for energy efficiency.



  Related Manuals for Hitachi CML190SXWB - 19" LCD Monitor

  Summary of Contents for Hitachi CML190SXWB - 19" LCD Monitor

  • Page 1 VESA DPMS. ® The E emblem does not represent EPA endorsement NERGY of any product or service. ® As an E Partner, Hitachi,Ltd. has determined that this NERGY ® product meets the E guidelines for energy efficiency. NERGY...
  • Page 2: Limited Warranty For Usa Customers Only

    36 months for both panel and backlight if purchased after 1/31/01. In the event of a defect during this 12 month, 36 month or 60 month period, Hitachi America, Ltd. will, at its option, repair or replace the monitor at no charge except as set forth below. If owner cannot provide proof of purchase, the warranty period will start to run from the date of manufacture.
  • Page 3 Warranty is not transferable. To obtain warranty service, call 1-800-562-2552 to obtain a return authorization number and the location of your Hitachi service center. If a problem occurs within the first 30 days after purchase AND IF CONSISTENT WITH YOUR DEALER’S RETURN POLICY, you can return the monitor to the dealer from whom you bought it.
  • Page 4: Table Of Contents

    CML190SXW CML190SXWB USER MANUAL Congratulations on your selection of the HITACHI Colour Monitor. Read the instructions inside carefully, and keep this user manual for future reference. NOTE: * The information in this manual is subject to change without notice. The manufacturer assumes no responsibility for any errors that may appear in this manual.
  • Page 5 Chapter 2 Display Controls..............16 User Controls ....................16 Adjusting the Monitor's Display ..............16 Function Descriptions..................17 Chapter 3 Technical Information ............19 Specifications ....................19 Standard Timing Table................... 22 Troubleshooting..................... 23...
  • Page 6: Using This Display Safely

    Using this Display Safely Common Safety Precautions Please read carefully and make sure you fully understand the following safety precautions: Operations should be done according to instructions and procedures described in this manual. Make sure to heed all warnings displayed on the device and manual. Neglecting to do so may result in fire or damage the device.
  • Page 7: Warning

    Warning Abnormal heat, smoke, sounds or smells. If anything abnormal should happen, turn OFF the power and unplug the power cord. Continued use in this condition may lea d to electrical shock or fire. The area around the cord should be clear to allow the cord to be easily unplugged. Repair, Modification, Disassembly DO NOT attempt to repair, modify or disassemble the product.
  • Page 8: Power Usage

    Handling of the power cord Use the power cord supplied with the product and be careful of the following during use. If handled improperly, the cord may be damaged resulting in electrical shock or fire. Never place objects on it. DO NOT pull DO NOT apply pressure DO NOT fold...
  • Page 9 DISPOSE OF ACCORDING TO APPLICABLE ENVIRONMENTAL LAWS. For Recycling and Disposal information, contact your government agency, the Electronic Industries Alliance at, and/or (in the US), or the Electronic Product Stewardship Canada at (in Canada). For more information, call 1-800-HITACHI (1-800-448-2244) (in the US).
  • Page 10: Caution

    CAUTION Contact with Metal and Other Edges When moving the computer be careful when coming in contact with the plastic and metal edges. It is possible to be injured. Use in Unstable Places DO NOT place on sloping or narrow areas that are unstable. The device may drop or fall and cause injury.
  • Page 11 Electronic Interference If used in the vicinity of other electronic devices, they may interfere with each other’s performances. Especially for devices such as radios and televisions, noise may enter their sound reception. If this should happen, try the following: Place in a location as far away from radios and televisions as possible. Change the facing of the antenna on the radio or television.
  • Page 12: Fcc Statement Warning

    FCC Statement Warning WARNING: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
  • Page 13: For The Customers In The Uk

    For the Customers in the UK THIS PRODUCT IS SUPPLIED WITH A TWO-PIN MAINS PLUG FOR USE IN MAINLAND EUROPE. FOR THE UK PLEASE REFER TO THE NOTES ON THIS PAGE. IMPORTANT FOR UNITED KINGDOM WORDING FOR CLASS I EQUIPMENT INSTRUCTION BOOKS AND LABELS The mains lead on this equipment is supplied with a moulded plug incorporating a fuse, the value of which is indicated on the pin face of the plug.
  • Page 14: Chapter 1 Installation

    Chapter 1 Installation Unpacking Before unpacking the LCD Monitor, prepare a suitable workspace for your Monitor and computer. You need a stable and clean surface near a wall power outlet. Make sure that the LCD Monitor has enough space around it for sufficient airflow. Though the LCD Monitor uses very little power, some ventilation is needed to ensure that the Monitor does not become too hot.
  • Page 15: Cable Installation

    Cable Installation Please follow these instructions to install the cables. 1. Remove the back panel from the rear of the monitor.(See Fig. 1.2,1-3) 2. Place the signal cable, the DC power cable into their correct respective grooves. Figure 1-2 Figure 1-3 Connecting the Display to your Computer 1.
  • Page 16: Connecting The Ac Power

    Connecting the AC Power 1. Connect the power cord to the AC adapter. (See Fig. 1-5) 2. Connect the AC adapter's DC output connector to the DC Power Jack of the monitor. 3. Connect the power cord to an AC power source.
  • Page 17: Chapter 2 Display Controls

    Chapter 2 Display Controls User Controls A brief description and the location of all LCD Monitor function controls and indicators: Figure 2-1 Soft Power Switch Press the soft power switch to switch the monitor ON/OFF. LED displays Green color --- Power is ON. DC Power-On LED displays Dark color --- Power is OFF.
  • Page 18: Function Descriptions

    Function Descriptions Icon Function Function Description Brightness 101 scales of brightness are available to choose from (0 to 100). Contrast 101 scales of contrast are available to choose from (0 to 100). H. Position This function let's you adjust the display's horizontal position V.
  • Page 19 Icon Function Description CIE coordinate Color Temperature of Sets the CIE coordinate color 9300 9300K temperature to 9300K CIE coordinated Color Temperature Sets the CIE coordinate color 7500 of 7500°K temperature to 7500°K CIE coordinated Color Temperature of Sets the CIE coordinate color 6500 6500K temperature to 6500K...
  • Page 20: Chapter 3 Technical Information

    Chapter 3 Technical Information Specifications LCD Panel Size 19" (48 cm) Display Type Active matrix color TFT LCD Resolution 1280 x 1024 Display Dot 1280 x (RGB) x 1024 Display Area (mm) 376.32 x 301.056 (H x V) Display Color 16.7M Brightness 250 cd/m...
  • Page 21: Power Management

    Power Management Mode Power Consumption* AC Input LED Color 56W maximum 240 VAC Green 4W maximum 240 VAC Yellow Soft switch off 4W maximum 240 VAC Dark Yellow: Standby, Suspend, Disconnected 4W maximum 240 VAC Off: DC Power OFF 1W maximum 120 VAC Dark Hard switch off...
  • Page 22: Pin Assignment

    Pin Assignment For Analog D-sub connector Signal Signal Signal Description Description Description Red Rtn Green Green Rtn Blue Blue Rtn H. Sync. Digital GND V. Sync. Digital GND Hot Plug Detect For Digital DVI-D connector Signal Signal Signal Description Description Description Shield for TMDS RX2-...
  • Page 23: Standard Timing Table

    Standard Timing Table If the selected timing is NOT included in table below, this LCD monitor will use the most suitable available timing. Resolution H – Freq. V. Freq. Pixel H/V Sync. Mode (KHz) (Hz) Freq. Polarity (MHz) 640 x 350 31.469 70.087 25.175...
  • Page 24: Troubleshooting

    Troubleshooting This LCD Monitor has pre-adjusted using factory to standard VGA timings. Due to the output timing differences among various VGA cards in the market, users may initially experience an unstable or unclear display whenever a new display mode or new VGA card is selected.
  • Page 25 Fax: +46 (0) 8 562 711 13 Tel: +39 02 38073415 Servizio Clienti Email: Fax: +39 02 48786381/2 Email: HITACHI EUROPE S.A.S HITACHI EUROPE LTD (Norway) AB Lyon Office STRANDVEIEN 18 B.P. 45, 69671 BRON CEDEX 1366 Lysaker FRANCE...
