TP-Link TL-WR541G - Wireless Router User Manual page 59

Before setting up MAC Filtering entries, you must ensure that Enable Firewall and Enable MAC
Filtering have been selected on the Firewall page. To Add a MAC Address filtering entry, clicking
the Add New... button. The page "Add or Modify a MAC Address Filtering entry" will appear,
shown in Figure 4-40:
To add or modify a MAC Address Filtering entry, follow these instructions:
1. Enter the appropriate MAC Address into the MAC Address field. The format of the MAC
Address is XX-XX-XX-XX-XX-XX
00-0E-AE-B0-00-0B.
2. Type the description of the PC in the Description field. Fox example: John's PC.
3. Status - Select Enabled or Disabled for this entry on the Status pull-down list.
4. Click the Save button to save this entry.
To add additional entries, repeat steps 1-4.
When finished, click the Return button to return to the MAC Address Filtering page.

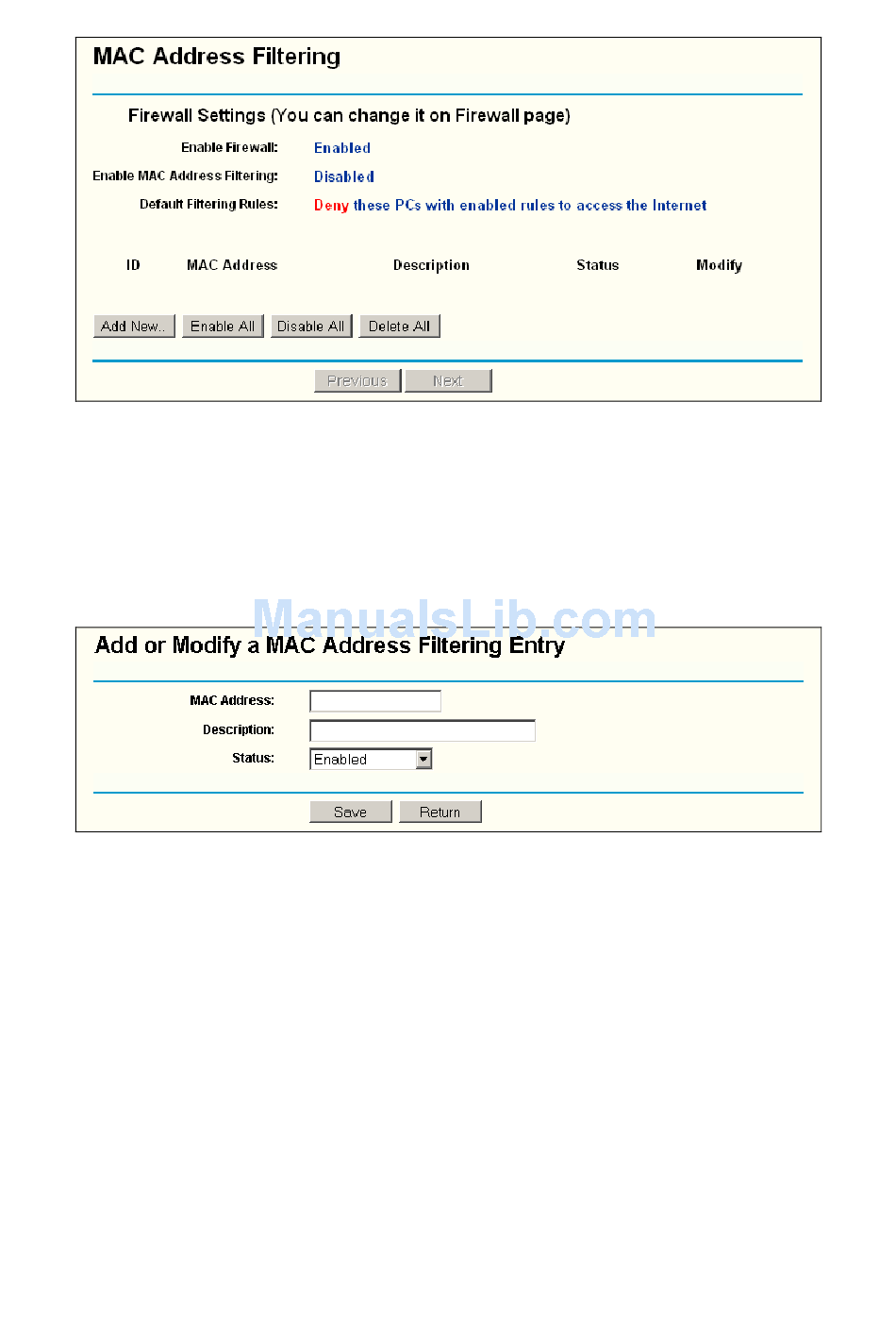

Figure 4-39 MAC address Filtering
Figure 4-40 Add or Modify a MAC Address Filtering entry
(X is any hexadecimal
52
digit). For example:
