TP-Link TL-WR541G - Wireless Router User Manual page 18

Please click the Quick Setup link on the left of the main menu and the Quick Setup screen will
appear.
Click Next, and then Choose WAN Connection Type page will appear, shown in Figure 3-6.
The router supports three popular ways to connect to Internet. Please select one compatible with
your ISP. Click Next to enter the necessary network parameters.
If you choose "PPPoE", you will see this page shown in Figure 3-7:
Account Name and Password - Enter the Account Name and Password provided by your
ISP. These fields are case sensitive. If you have difficulty with this process, please contact
your ISP.
If you choose "Dynamic IP", the router will automatically receive the IP parameters from your ISP

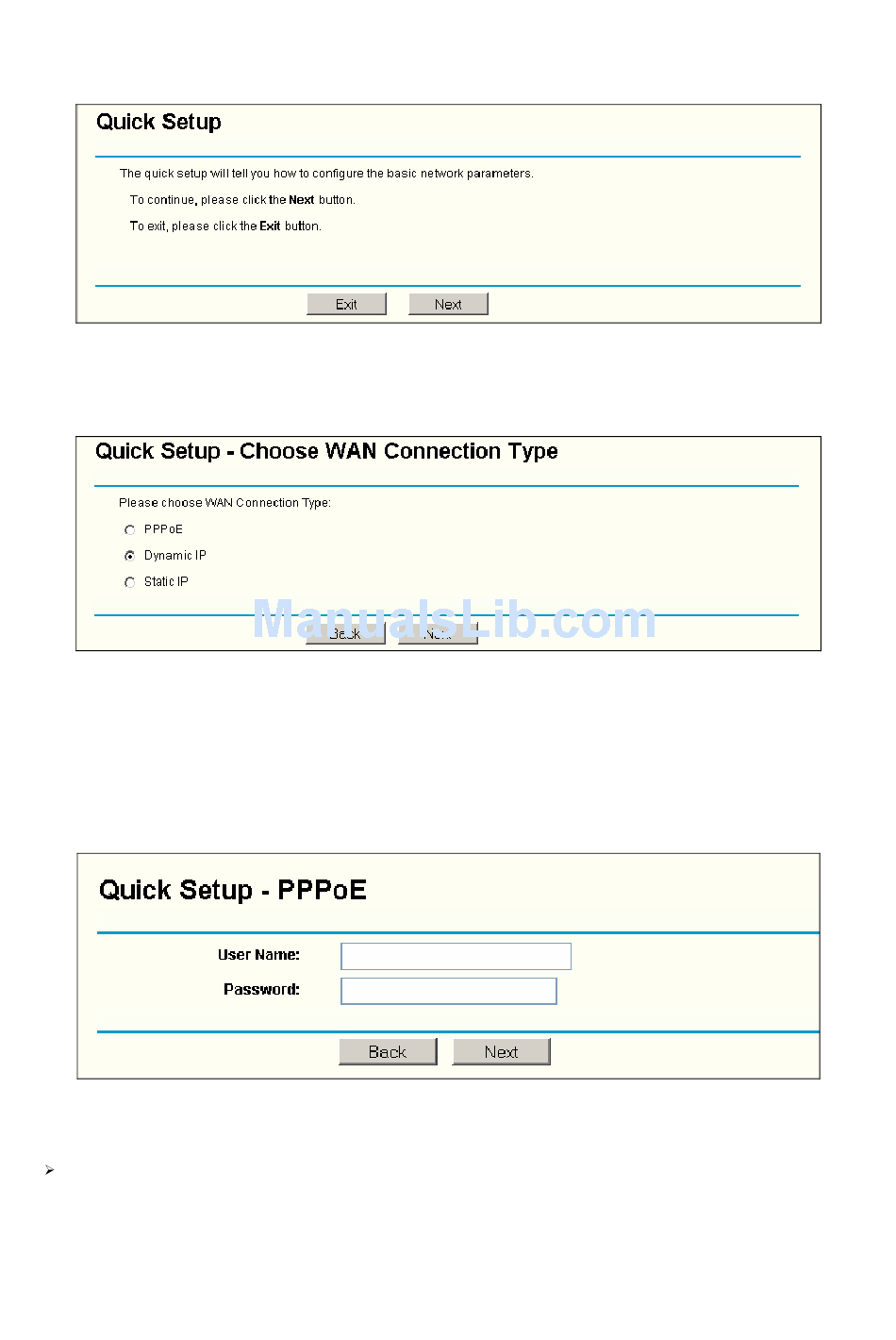

Figure 3-5 Quick Setup
Figure 3-6 Choose WAN Connection Type
Figure 3-7 Quick Setup - PPPoE
11
