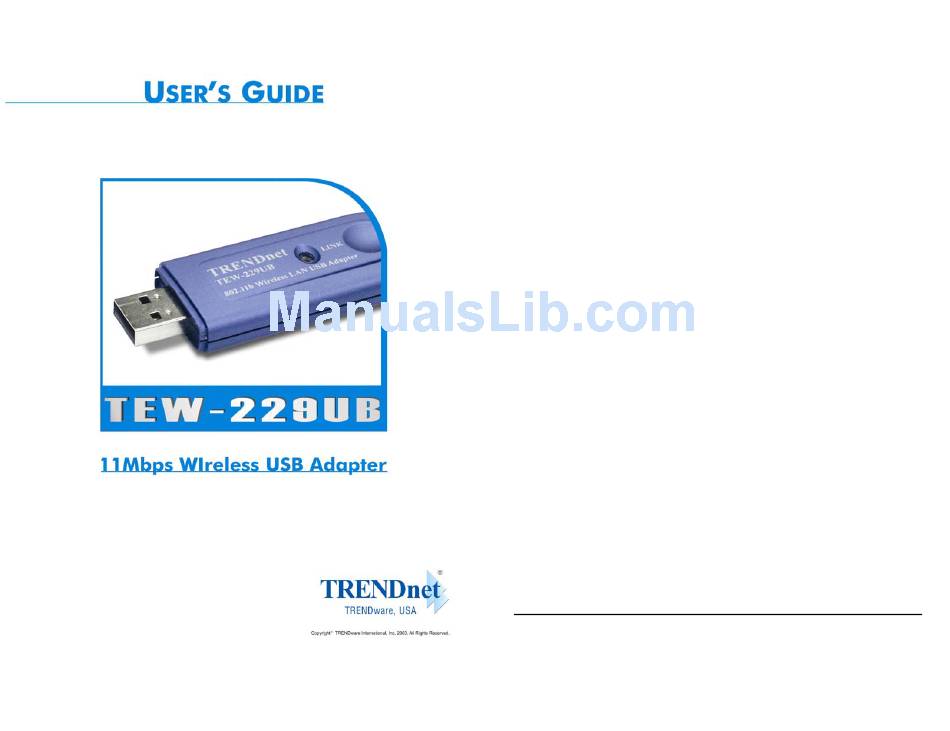

TRENDnet TEW-229UB User Manual
TRENDnet TEW-229UB User Manual

TRENDnet TEW-229UB User Manual

11mbps wireless usb adapter
Hide thumbs Also See for TEW-229UB:

Advertisement

Quick Links

Regulatory notes and statements
Wireless LAN, Health and Authorization for use
Radio frequency electromagnetic energy is emitted from Wireless LAN
devices. The energy levels of these emissions however are far much less than
the electromagnetic energy emissions from wireless devices like for example
mobile phones. Wireless LAN devices are safe for use frequency safety
standards and recommendations. The use of Wireless LAN devices may be
restricted in some situations or environments for example:
·On board of airplanes, or
·In an explosive environment, or
·In case the interference risk to other devices or services is perceived or
identified as harmful
In case the policy regarding the use of Wireless LAN devices in specific
organizations or environments (e.g. airports, hospitals, chemical/oil/gas
industrial plants, private buildings etc.) is not clear, please ask for
authorization to use these devices prior to operating the equipment.
Regulatory Information/disclaimers
Installation and use of this Wireless LAN device must be in strict accordance
with the instructions included in the user documentation provided with the
product. Any changes or modifications made to this device that are not
expressly approved by the manufacturer may void the user's authority to
operate the equipment. The Manufacturer is not responsible for any radio or
television interference caused by unauthorized modification of this device, of
the substitution or attachment. Manufacturer and its authorized resellers or
distributors will assume no liability for any damage or violation of
government regulations arising from failing to comply with these guidelines.
ii

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TEW-229UB and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for TRENDnet TEW-229UB

  • Page 1 Regulatory notes and statements Wireless LAN, Health and Authorization for use Radio frequency electromagnetic energy is emitted from Wireless LAN devices. The energy levels of these emissions however are far much less than the electromagnetic energy emissions from wireless devices like for example mobile phones.
  • Page 2 USA-FCC (Federal Communications Commission) statement 1. Reorient or relocate the receiving antenna. 2. Increase the distance between the equipment and the receiver. This device complies with Part 15 of FCC Rules. 3. Connect the equipment to an outlet on a circuit different from that to which Operation is subject to the following two conditions: the receiver is connected.
  • Page 3: Table Of Contents

    TABLE OF CONTENT Introduction..................1 Overview of this User’s Guide............1 Unpacking and Setup ................3 Unpacking..................3 Setup ....................3 Connecting the USB Extension Cable ..........4 Hardware Installation................5 LED Indicator .................. 5 Check the installation............... 5 Software Installation ................7 Windows 98/ME/2000/XP Utility and Driver Installation....
  • Page 4: Introduction

    INTRODUCTION Technical Specifications. Lists the technical (general, physical and environmental) specifications Wireless Adapter. Congratulations on your purchase of this IEEE 802.11b Wireless USB Adapter. This manual helps to get familiar with the Wireless USB Adapter. This manual contains detailed instructions in operation of this product. Please keep this manual for future reference.
  • Page 5: Unpacking And Setup

    UNPACKING AND SETUP Connecting the USB Extension Cable The USB extension cable that comes with the Adapter has Type A This chapter provides unpacking and setup information for the connectors on both ends. One is a male Type A connector that plugs Wireless USB Adapter.
  • Page 6: Hardware Installation

    HARDWARE INSTALLATION LED Indicator LNK (LINK) The LNK indicator lights green when the Wireless LAN is connected to a network successfully. Otherwise the LNK indicator blinks green while the Wireless USB Adapter is scanning the wireless device. Check the installation The LEDs of the Wireless USB Adapter are clearly visible and the status of the network link can be seen instantly: When connected to the USB port and the driver was installed, the...
  • Page 7: Software Installation

    SOFTWARE INSTALLATION Then select Install Software on the menu to install the driver and the Wireless Configuration Utility. This section will lead you to install the driver and utility of the The installation program will help you to Wireless USB Adapter setup the Wireless Configuration Utility.
  • Page 8: Wireless Configuration Utility Setting

    Wireless Configuration Utility Setting With the Wireless Configuration Utility, users can configure all the functions of the Wireless USB Adapter. Double-click the utility icon that appears in the taskbar. The Wireless Configuration Utility includes seven tabs: Monitor, Statistics, Site Survey, Encryption, Advanced, Profiles and Info. Monitor As you enter the Monitor screen, you will see the current setting in light gray color.
  • Page 9 SSID: Ad-Hoc Mode: the status bar will show “Ready” and other end linked BSSID, the Signal Strength and the Link quality will not be The SSID differentiates one WLAN group name from another, so all active. access points and all devices attempting to connect to a specific WLAN group name must use the same SSID.
  • Page 10 Site Survey screen shows information of Access Point and the Ad-Hoc wireless stations around your Wireless Adapter. The information of the Site Survey includes BSSID, SSID, Signal, the Channel used, the Encryption status and the operating type mode. Double-click BSSID choose the SSID that you want to WEP Key #1 ~ #4: connect with.
  • Page 11 Shared Key: with the same WEP key between the stations in this Fragmentation Threshold is a way of transmitting the packets that will Authentication algorithm, this type will use packets with encryption be fragmented. Choose a setting within a range of 256 to 2346 bytes. by transferring a challenge text which will be acknowledge by both It is recommended to fragment the packet when the link quality is bad, side of the stations.
  • Page 12 The screen shows the version of Driver, Firmware, MAC address and Application for Wireless USB Adapter Utility / Driver. You can create your profile name, just click the “New” button and type the profile that you want to use, otherwise, it will be set to default. Once you change your setting on the Monitor, the current profile name will appear a “*”...
  • Page 13: Technical Specifications

    TECHNICAL SPECIFICATIONS General Standards IEEE 802.3 11b, USB 1.0, 1.1 Radio Technology IEEE 802.11b Direct Sequence Spread Spectrum (DSSS) Data Transfer Rate 1, 2, 5.5, 11Mbps (auto sense) 11Mbps: Typical –80dBm @ 8% PER (Packet Error Rate) Receiver Sensitivity 2Mbps: Typical –87dBm @ 8% PER (Packet Error Rate) Frequency Range 2400 ~ 2497 MHz ISM band (channels 1 ~ 14) Modulation Schemes...
