Performing the viewfinder adjustments

(The viewfinder is an optional accessory.)

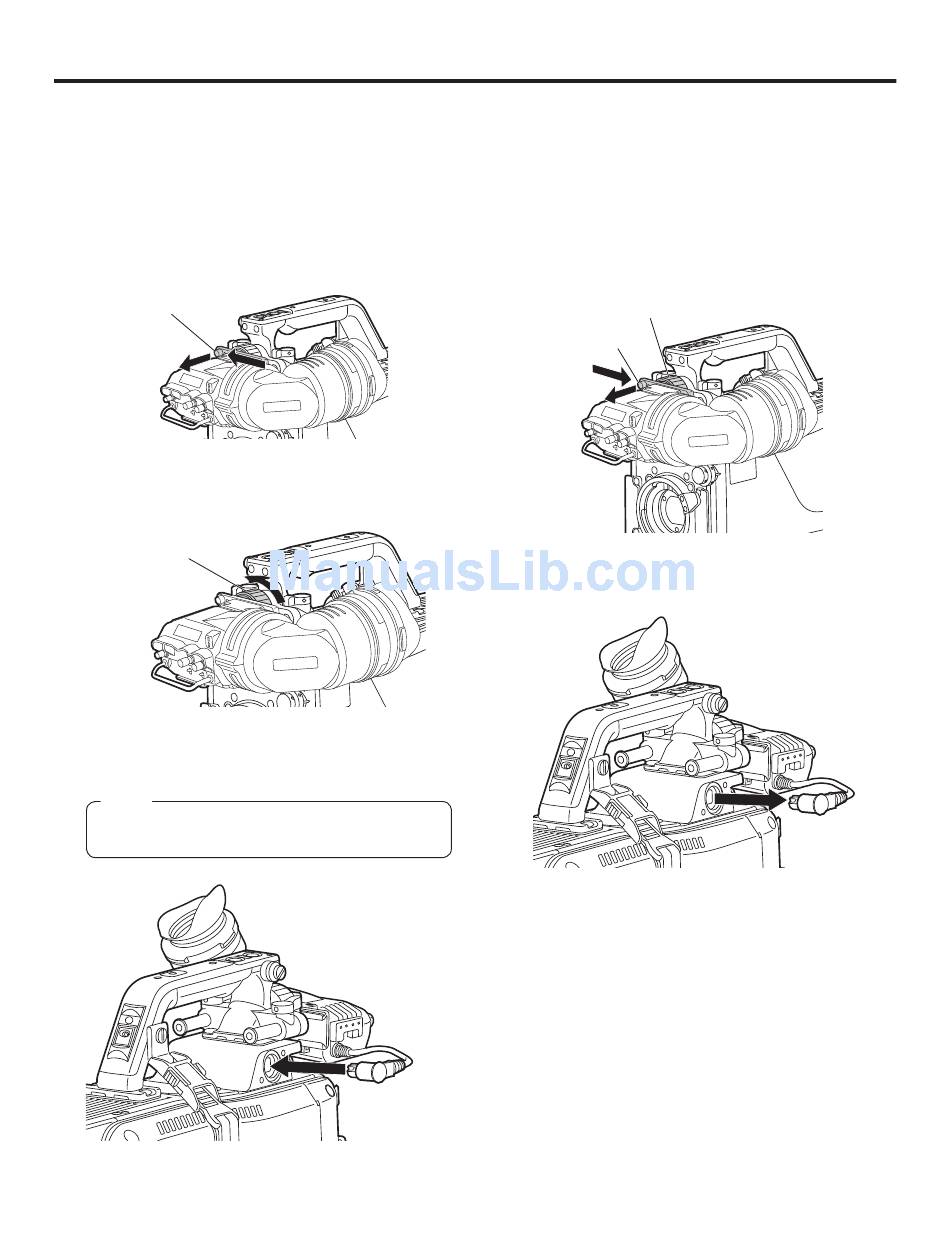

Attaching the viewfinder
1
Check that the camera's POWER switch is at the OFF
position.
2
Pull up the knob on the mounting plate and slide the
plate to attach the viewfinder.
Pull up the knob
3
Tighten the stopper screw securely.
Stopper screw
4
Connect the plug to the VF connector.
Note
When connecting the plug to the VF connector,
ensure that it is fully and securely inserted.
Detaching the viewfinder
1
Check that the camera's POWER switch is at the OFF
position.
2
Loosen the stopper screw, pull up the knob on the
mounting plate and slide the viewfinder along and off
the plate.
Stopper screw
Pull up the knob
3
Disconnect the plug from the VF connector.
