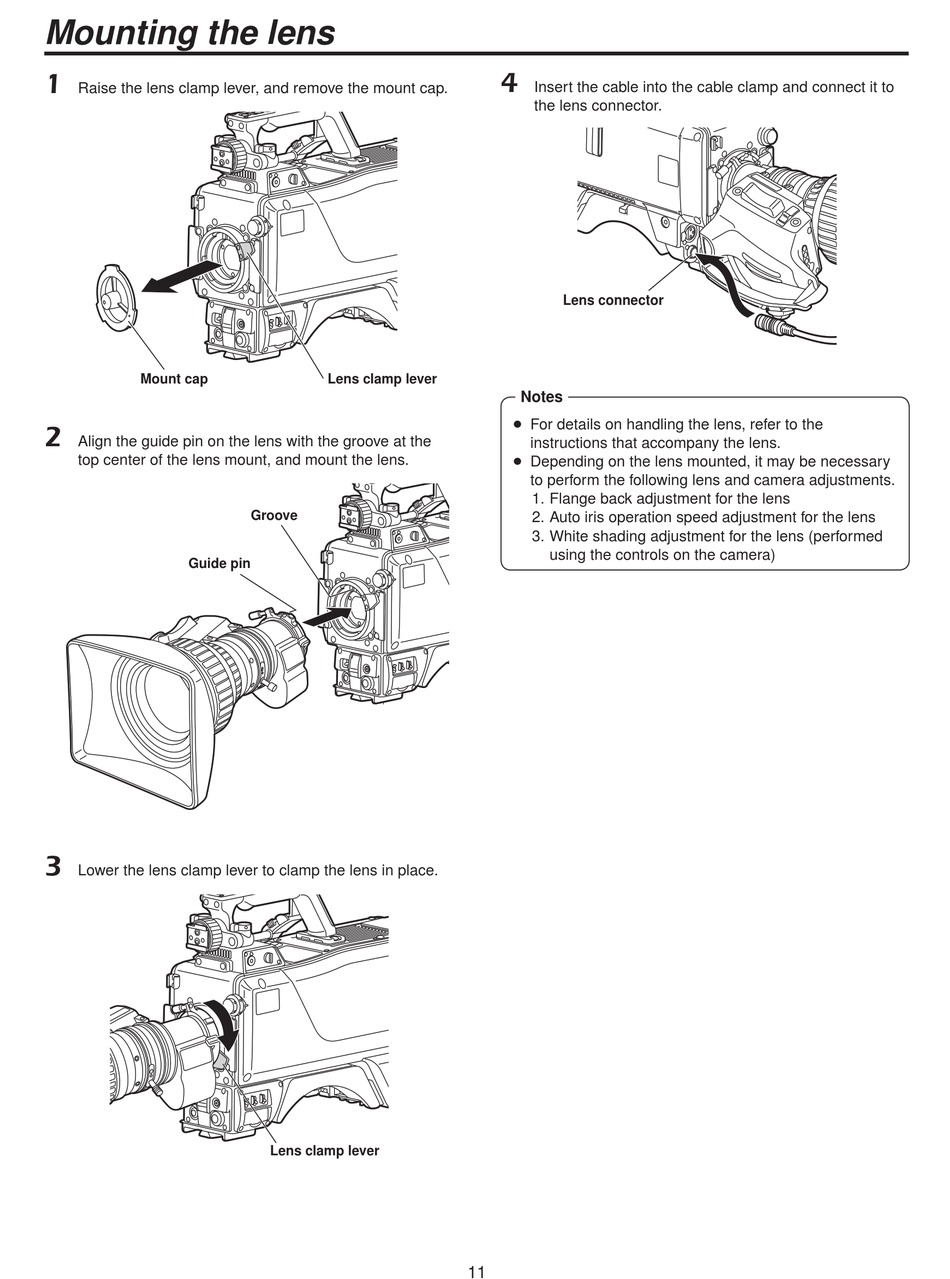

Mounting the lens

1
Raise the lens clamp lever, and remove the mount cap.
Mount cap
2
Align the guide pin on the lens with the groove at the
top center of the lens mount, and mount the lens.
Guide pin
3
Lower the lens clamp lever to clamp the lens in place.
Lens clamp lever
Groove
Lens clamp lever
4
Insert the cable into the cable clamp and connect it to
the lens connector.
Lens connector
Notes
 For details on handling the lens, refer to the
instructions that accompany the lens.
 Depending on the lens mounted, it may be necessary
to perform the following lens and camera adjustments.
1. Flange back adjustment for the lens
. Auto iris operation speed adjustment for the lens
3. White shading adjustment for the lens (performed
using the controls on the camera)
