- Page 1 GPS Engine Board M-89 SPECIFICATION 1F, No. 30, R&D Rd. II, HsinChu City 300, Science-based Industrial Park, Taiwan (300) ·s¦Ë¥«¬ì¾Ç¶é°Ï¬ãµo¤G¸ô 30 ¸¹ 1 ¼Ó TEL: 03-6687000 FAX: 03-6687111 Website: www.holux.com All Right Reserved...
- Page 2 THE PRO NAME IN GPS Version Change History Version Date Revised Reason 2007/04/18 Draft release 2007/05/22 Official release 2007/06/27 Modify 6.2 reference design HOLUX Technology, Inc. 1F, No.30, R&D Road, Hsinchu 300, Taiwan (Hsinchu Science Industrial Park) TEL: 886-3-6687000 FAX:886-3-6687111 E-mail:info@holux.com.tw http:www.holux.com.tw...
-
Page 3: Table Of Contents
5.1 Protocol ......................12 NMEA Protocol ..................12 MTK NMEA Packet Format..............13 Reference design ................... 14 Reference circuit..................14 Reference PCB pattern................15 Recommendation reflow profile............16 HOLUX Technology, Inc. 1F, No.30, R&D Road, Hsinchu 300, Taiwan (Hsinchu Science Industrial Park) TEL: 886-3-6687000 FAX:886-3-6687111 E-mail:info@holux.com.tw http:www.holux.com.tw... -
Page 4: Introduction
¡E Emergency Locator ¡E Geographic Surveying ¡E Personal Positioning ¡E Sporting and Recreation ¡E Embedded applications: ¡E Smart phone, UMPC, PND, MP4 HOLUX Technology, Inc. 1F, No.30, R&D Road, Hsinchu 300, Taiwan (Hsinchu Science Industrial Park) TEL: 886-3-6687000 FAX:886-3-6687111 E-mail:info@holux.com.tw http:www.holux.com.tw... -
Page 5: Technical Description
3.3 ~ 5 V supply input Ground RXDA Serial Data input A TXDA Serial Data Output A TXDB Serial Data Output B HOLUX Technology, Inc. 1F, No.30, R&D Road, Hsinchu 300, Taiwan (Hsinchu Science Industrial Park) TEL: 886-3-6687000 FAX:886-3-6687111 E-mail:info@holux.com.tw http:www.holux.com.tw... - Page 6 GPIO5 General purpose I/O GPIO6 General purpose I/O 1 PPS output, synchronized with GPS time. TIME_MARK 1 PPS output, 1us/s Ground HOLUX Technology, Inc. 1F, No.30, R&D Road, Hsinchu 300, Taiwan (Hsinchu Science Industrial Park) TEL: 886-3-6687000 FAX:886-3-6687111 E-mail:info@holux.com.tw http:www.holux.com.tw...
-
Page 7: Specification
¡Õ4G Altitude Limit ¡Õ18000 meters Velocity Limit ¡Õ515 M/sec Jerk Limit 20 M/sec Power Operation Current Acquisition:65 mA@3.3V Operation Current Tracking:¡Õ35mA@3.3V HOLUX Technology, Inc. 1F, No.30, R&D Road, Hsinchu 300, Taiwan (Hsinchu Science Industrial Park) TEL: 886-3-6687000 FAX:886-3-6687111 E-mail:info@holux.com.tw http:www.holux.com.tw... - Page 8 Storage Temperature -40 to +85 . Operating Humidity 5% to 95%, Non condensing Physical Dimension 25.4 * 25.4 * 3 mm. Weight 3g. HOLUX Technology, Inc. 1F, No.30, R&D Road, Hsinchu 300, Taiwan (Hsinchu Science Industrial Park) TEL: 886-3-6687000 FAX:886-3-6687111 E-mail:info@holux.com.tw http:www.holux.com.tw...
-
Page 9: Mechanical Dimension
M-89 GPS Module series THE PRO NAME IN GPS 3. Mechanical Dimension 3.1 Mechanical Dimension HOLUX Technology, Inc. 1F, No.30, R&D Road, Hsinchu 300, Taiwan (Hsinchu Science Industrial Park) TEL: 886-3-6687000 FAX:886-3-6687111 E-mail:info@holux.com.tw http:www.holux.com.tw... -
Page 10: Package
Tray dimension : 370*312*15mm¡A Standard Content Qty : 50 pcs. Carton dimension : 370*312*15mm ¡A Standard Content Qty : 1,000 pcs¡C HOLUX Technology, Inc. 1F, No.30, R&D Road, Hsinchu 300, Taiwan (Hsinchu Science Industrial Park) TEL: 886-3-6687000 FAX:886-3-6687111 E-mail:info@holux.com.tw http:www.holux.com.tw... -
Page 11: Reference Product Photo

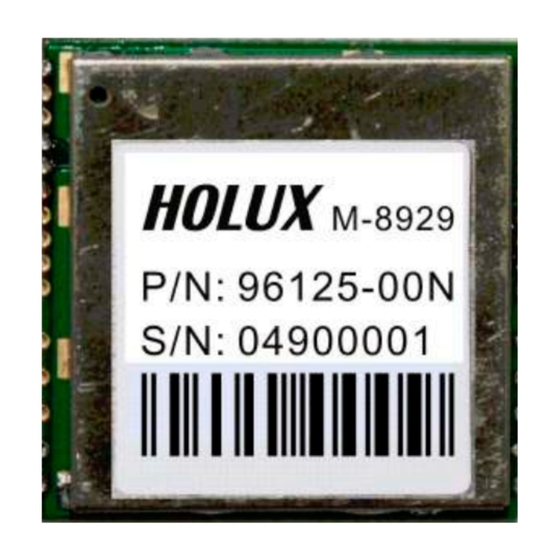

M-89 GPS Module series THE PRO NAME IN GPS 4.2 Reference Product photo Top side : Bottom side HOLUX Technology, Inc. 1F, No.30, R&D Road, Hsinchu 300, Taiwan (Hsinchu Science Industrial Park) TEL: 886-3-6687000 FAX:886-3-6687111 E-mail:info@holux.com.tw http:www.holux.com.tw... -
Page 12: User Interface
GNSS DOP and active satellite GNSS Satellites in view Recommended minimum specific GNSS data Course Over Ground and Ground Speed Time&Data HOLUX Technology, Inc. 1F, No.30, R&D Road, Hsinchu 300, Taiwan (Hsinchu Science Industrial Park) TEL: 886-3-6687000 FAX:886-3-6687111 E-mail:info@holux.com.tw http:www.holux.com.tw... -
Page 13: Mtk Nmea Packet Format
Character string CHK2 Preamble ¡§, ¡¨and ¡§*¡¨ used to identify the end of a CR, LF 2 byte Binary data packet HOLUX Technology, Inc. 1F, No.30, R&D Road, Hsinchu 300, Taiwan (Hsinchu Science Industrial Park) TEL: 886-3-6687000 FAX:886-3-6687111 E-mail:info@holux.com.tw http:www.holux.com.tw... -
Page 14: Reference Design
V_ANT_I MCX-JACK-180 AGND3 AGND7 DB9 female RF_IN AGND4 RFIN AGND5 AGND6 240-R0402 M-89 Engine Board RS232 Interface M-89 Engine Board RF_IN HOLUX Technology, Inc. 1F, No.30, R&D Road, Hsinchu 300, Taiwan (Hsinchu Science Industrial Park) TEL: 886-3-6687000 FAX:886-3-6687111 E-mail:info@holux.com.tw http:www.holux.com.tw... -
Page 15: Reference Pcb Pattern
M-89 GPS Module series THE PRO NAME IN GPS 6.2 Reference PCB pattern HOLUX Technology, Inc. 1F, No.30, R&D Road, Hsinchu 300, Taiwan (Hsinchu Science Industrial Park) TEL: 886-3-6687000 FAX:886-3-6687111 E-mail:info@holux.com.tw http:www.holux.com.tw... -
Page 16: Recommendation Reflow Profile
3. Below is the recommend reflow profile referred to Main chip MT3318. HOLUX Technology, Inc. 1F, No.30, R&D Road, Hsinchu 300, Taiwan (Hsinchu Science Industrial Park) TEL: 886-3-6687000 FAX:886-3-6687111 E-mail:info@holux.com.tw http:www.holux.com.tw...
