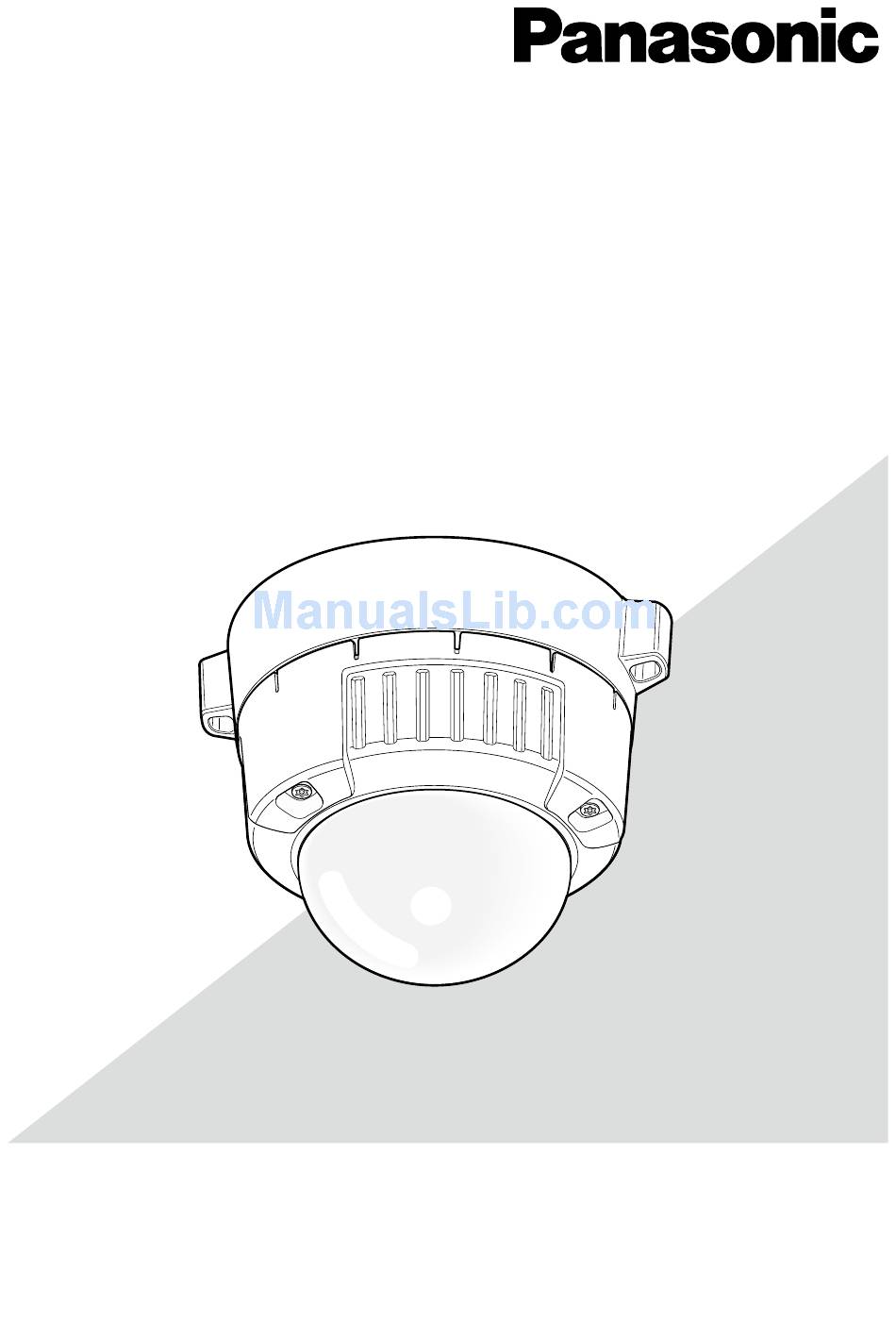

Installation Guide

Color CCTV Camera
WV-CW500S/G
Model No.
WV-CW504SE
Before attempting to connect or operate this product, please read these
instructions carefully and save this manual for future use.
The model number is abbreviated in some descriptions in this manual.

Advertisement

Table of Contents
loading

Subscribe to Our Youtube Channel

Summary of Contents for Panasonic WV-CW504SE

  • Page 1: Installation Guide

    Installation Guide Color CCTV Camera WV-CW500S/G Model No. WV-CW504SE Before attempting to connect or operate this product, please read these instructions carefully and save this manual for future use. The model number is abbreviated in some descriptions in this manual.
  • Page 2 We declare under our sole responsibility that the product Vi deklarerar härmed vårt fulla ansvar för att den produkt to which this declaration relates is in conformity with the t i l l v i l k e n d e n n a d e k l a r a t i o n h ä n v i s a r ä r i standards or other normative documents following the överensstämmelse med de standarder eller andra provisions of Directives 2006/95/EC and 2004/108/EC.
  • Page 3: Important Safety Instructions

    Important safety instructions 1) Read these instructions. 2) Keep these instructions. 3) Heed all warnings. 4) Follow all instructions. 5) Clean only with dry cloth. 6) Do not block any ventilation openings. Install in accordance with the manufacturer's instruc- tions. 7) Do not install near any heat sources such as radiators, heat registers, stoves, or other appara- tus (including amplifiers) that produce heat.
  • Page 4: Limitation Of Liability

    MENTS OF THIS PUBLICATION AND/OR THE CORRESPONDING PRODUCT (S). Disclaimer of warranty IN NO EVENT SHALL Panasonic Corporation BE LIABLE TO ANY PARTY OR ANY PERSON, EXCEPT FOR REPLACEMENT OR REASONABLE MAINTENANCE OF THE PRODUCT, FOR THE CASES, INCLUDING BUT NOT LIMITED TO BELOW:...
  • Page 5: Table Of Contents

    Contents Important safety instructions ......................3 Limitation of liability ........................4 Disclaimer of warranty ........................4 Preface ............................6 Features ............................6 About the user manuals ........................ 7 Trademarks and registered trademarks..................7 Precautions ........................... 8 Precautions for Installation ......................10 Major operating controls and their functions ................
  • Page 6: Preface

    Preface This product is a 1/3-inch type {1/3"} CCD color CCTV camera. Connection of this product to a video monitor allows users to use this product as a monitoring camera. • WV-CW504: 24 V AC, 12 V DC power supply • WV-CW500: 220 to 240 V AC power supply Features Introduction of SUPER-D5 (super dynamic function) Integration of SUPER-D5 into the CCD and signal processing circuit has achieved approximately 160 times higher dynamic range as compared with conventional camera.
  • Page 7: About The User Manuals

    Note: • The i-VMD function is not the dedicated function to prevent thefts, fires, etc. We are not responsible for any accidents or damages occurring in case. Optional heater unit can be connected When using the optional heater unit, the product can be used at temperatures within –30 °C to +50 °C and humidity below 90 %.
  • Page 8: Precautions

    Precautions The following points as well as the con- This product shall be installed in a vibra- tents of "Warning" and "Caution" shall be tion-free place. observed. Failure to observe this may cause screws and bolts to be loosened and consequently to fall Refer installation work to the dealer.
  • Page 9 [Precautions for use] Cleaning this product body Turn the power off when cleaning the product. This product has no power switch. Do not use strong abrasive detergent when Turn the power off when cleaning the product. cleaning this product. Otherwise, it may cause discoloration.
  • Page 10: Precautions For Installation

    Precautions for Installation The following points as well as the contents of "Warning" and " Caution" shall be observed. Avoid moist or dusty places to install this Installation work shall be performed in accordance with the technology standard system. of the electric installation. Otherwise, lifetime of the internal parts may be shortened.
  • Page 11 Mounting screws • The screws and bolts must be tightened with an appropriate tightening torque according to the material and strength of the installation area. • Do not use an impact driver. Failure to observe this may cause overtightening and consequently damage to the screws.
  • Page 12: Major Operating Controls And Their Functions

    Major operating controls and their functions w Video output cable q Power cord !9 Inner dome e Enclosure * This illustration shows the camera without the inner dome. r Panning table u Panning lock screw t Tilt adjusting table y Tilting lock screw i Focus lock knob o Zoom lock knob !0 Camera fixing screw...
  • Page 13 q Power cord !6 Setting button [(SET), ABF2/MENU] Confirms the setting contents. Refer to page 26 for further information about w Video output cable [ABF2]. e Enclosure !7 Heater output connector r Panning table The cable of heater unit (option) is con- Rotate this table to adjust the panning nected to this connector.
  • Page 14: Preparations

    Preparations When installing the camera on a wall or a ceiling, there are two methods as specified below. (+ Next page) • Using a two-gang junction box • Using the camera mount bracket (accessory) Refer to all work related to the installation of this product to qualified service personnel or system installer.
  • Page 15: Using A Two-Gang Junction Box

    Using a two-gang junction box • When the camera is installed using the two-gang junction box, mount the camera attachment (accessory) to the embedded box installed on the wall or ceiling as a first step. [Mounting position on wall or ceiling] 46 mm Two-gang junction box 83.5 mm Camera attachment (accessory) Note: • For wall mounting: Installation shall be performed in such a manner that "MTOP"...
  • Page 16 Install the camera mount bracket on the wall/ceiling. ø27 mm Cable access hole (A For use of the hole) 51mm Camera mount braket Center of camera mount bracket Female thread for conduit (For use of the hole A) (For use of the hole B) 85 mm 138 mm 138 mm...
  • Page 17 Previously run the cables from the wall or ceiling through the cable access hole. Mount the attachment onto the mount bracket. Recommended tightening torque: 0.78 N·m Camera attachment Note: • For wall mounting: Installation shall be performed in such a manner that "MTOP" of the camera attachment faces upward.
  • Page 18: Camera Installation

    Camera installation Mount the camera. <To mount the camera on a two-gang junction box> q Connect the power cord and the video output cable. (+ page 29) w Align the "OPEN" mark of the camera with the protrusion of the camera attachment. e Engage the attachment mounting screw of the camera with the camera mounting hole of the camera attachment and rotate the camera in the direction of the arrow to the "LOCK"...
  • Page 19 <To use the camera mount bracket> q Attach the camera onto the camera attachment while aligning the "OPEN" mark of the camera with the projection of the camera attachment. Projection Important: • When mounting the camera body, cables shall be run between the camera attachment and camera mount bracket as indicated by the arrow in the illustration.
  • Page 20 w Engage the attachment mounting screw of the camera with the camera mounting hole of the camera attachment and rotate the camera in the direction of the arrow to the "LOCK" position to secure the camera to the camera attachment without any back- lash.
  • Page 21 t Mount the supplied base cover on the camera mount bracket. Important: • To prevent the cables from being caught when the base cover is attached, keep the cables inside the cable guide. Base cover y Use the bit for tamperproof screw (acces- sory) to tighten the fixing screws provided Base cover fixing screw on both sides of the base cover.
  • Page 22 Remove the enclosure and inner dome from the main body by loos- ening the three fixing screws. Loosen the three fixing screws by using the provided bit for tamperproof screw. Detach the inner dome while pushing the parts with the "PUSH" indication. Press the parts with the "PUSH"...
  • Page 23: Adjust The Camera

    Adjust the camera Be sure to view the monitor for adjustment when the camera angle is adjusted. Connect the monitor for adjustment (e.g. a small LCD) to the monitor output connector, and adjust the camera angle. When determining the camera angle, repeat fine follow the adjusting procedure of q, w, and e shown below.
  • Page 24 Adjusts the focus. Focus adjustment shall be performed when camera Focus lock knob angle adjustment are performed. Adjust the focus by following the adjusting proce- dure of q, w, and e shown below. q Loosen the zoom lock knob and move the NEAR NEAR Zoom lock knob...
  • Page 25 To perform fine adjustment of the back focus after the ABF operation indicator goes off and automatic back focus is adjusted, use the right or left button. Note: • No operation for 10 seconds or more automatically clears the focus position indicator. • To change the angle of view by moving the zoom adjustment ring, also move the focus lock knob to adjust the focus.
  • Page 26 Mount the enclosure and inner dome. Tighten the screws that have been loos- Cutout for Groove for ened in Step 2 in page 22 using the sup- mounting mounting plied driver bit. (Recommended tightening torque: 0.78 N·m) Important: • Attach the inner dome in accordance with the lens direction to not to change the lens direction.
  • Page 27: Waterproof Treatment For The Cable Joint Sections

    Waterproof treatment for the cable joint sections Adequate waterproof treatment is required for the cables when the camera with exposed cables is installed by means of the camera mount bracket or it is installed under the eaves. The camera body is waterproof, but the cable ends are not waterproof.
  • Page 28 Important: • If open wiring is conducted, be sure to use conduits and run the cables inside the tubes to pro- tect the cables from direct sunlight. • When the conduit is connected at the lateral or bottom position, either of the arrow marks on the bracket shall be the top position. • When the conduit is connected from the top, the arrow mark on the attachment shall be either of the right or left position. <To connect conduit from the side or bottom> Arrow mark Connecting conduit <To connect conduit from the top> • For installation on the wall, do not connect the dehumidifying device at the upper side to pre- vent water from being stored in the dehumidifying device.
  • Page 29: Make A Connection

    Make a connection Cautions: • ONLY CONNECT WV-CW504 TO 24 V AC OR 12 V DC CLASS 2 POWER SUPPLY. (WV-CW504) • Be sure to connect the grounding lead to the GND terminal. Power cord To 24 V AC/12 V DC* (WV-CW504: approx. 17 cm) Brown (Live) power supply (WV-CW504) (WV-CW500: approx.
  • Page 30 • Shrinking the cable-entry seal is a onetime procedure. Do not shrink the cable-entry Important: seal until it has been ascertained that unit When using 12 V DC power supply, the is functioning. heater is unavailable. ONLY CONNECT THIS TO 24 V AC or 12 V DC CLASS 2 POWER SUPPLY. •...
  • Page 31: How To Install The Heater Unit

    Optional Heater Unit WV-CW5H (option) Installing the heater unit enables the camera to operate in a low-temperature environment below –30 °C. The heater turns on automatically when the temperature inside the camera drops below +10 °C and turns off when the temperature rises. A small fan inside the unit will minimize conden- sation on the surface of the enclosure caused by changes in ambient temperature unless tempera- tures change too rapidly.
  • Page 32: About The Setup Menus

    About the setup menus Performing each setting item in the setup menu should be completed in advance to use this unit. Perform the settings for each item in accordance with the conditions of the camera shooting area. Refer to the operating instructions (PDF) for further information. Setup menu list Setup item Description...
  • Page 33 Setup item Description SPECIAL CHROMA GAIN Adjusts the chroma level. AP GAIN Adjusts the aperture level. PEDESTAL Adjusts the pedestal (brightness) level. PIX OFF Corrects image defects such as flaws. CAMERA RESET Restores the settings in the setup menu to the default settings. SER.NO.
  • Page 34: Basic Operation

    Basic operation The description below explains how to operate the setup menu basically. The operations in the setup menu are performed with the operation buttons (+ page 12) after call- ing up the setup menu on the connected video monitor. The operations in the setup menu can also be performed through the system controller (option).
  • Page 35 Screenshot 3 The selected setup screen in the setup menu appears on the screen. Step 4 **CAMERA SETUP** SCENE1 Perform the settings for each item. • Selection of setting item: SHUTTER ON(HIGH) Press the up or down button to move the SENS UP WHITE BAL ATW1 cursor.
  • Page 36: Screen Transition Diagram

    SENS UP WHITE BAL ATW1 HIGH BW MODE AUTO1 i-VMD RET TOP END "SYSTEM SETUP" screen **SYSTEM SETUP** SYNC LENS PANASONIC PRIVACY ZONE STABILIZER EL-ZOOM UPSIDE-DOWN RET TOP END "BACK-FOCUS SETUP" screen **BACK-FOCUS SETUP** PUSH SW MANUAL-ADJ AUTO SETUP-SW LOCK OFF NEAR ..
  • Page 37: Troubleshooting

    Troubleshooting Before asking for repairs, check the symptoms with the following table. Contact your dealer if a problem cannot be solved even after checking and trying the solution in the table or a problem is not described below. Reference Symptom Cause/solution pages • A re the power cord and coaxial cable...
  • Page 38: Specifications

    Specifications • Basic Power source: WV-CW500: 220 to 240 V AC 50 Hz WV-CW504: 24 V AC 50 Hz, 12 V DC Power consumption: WV-CW500: 5.1 W (without heater unit) 16 W (with heater unit) WV-CW504: 24 V AC: 3.4 W (without heater unit) 14 W (with heater unit) 12 V DC: 280 mA* Ambient operating temperature:...
  • Page 39 HIGH/LOW Color/BW: AUTO1/AUTO2/ON/OFF Intelligent VMD (i-VMD): Motion detection Object abandonment/removal detection Scene change detection Number of scene file: Lens: PANASONIC/OTHER Privacy zone: ON (1)/ON (2)/OFF Image stabilizer: ON/OFF Electronic zoom: ON (Up to 2x)/OFF Image flip: ON/OFF Auto back focus:...
  • Page 40: Standard Accessories

    Standard accessories CD-ROM* ..............1 pc. Installation Guide (this book) ........1 pc. *The CD-ROM contains the operating instructions (PDF). The following parts are used during installation procedures. Base cover ..............1 pc. Camera mount bracket ..........1 pc. Fixing screw for camera mount bracket ...... 5 pcs. (incl.
  • Page 41 Information on Disposal for Users of Waste Electrical & Electronic Equipment (private households) This symbol on the products and/or accompanying documents means that used electrical and electronic products should not be mixed with general household waste. For proper treatment, recovery and recycling, please take these products to designated collection points, where they will be accepted on a free of charge basis.
  • Page 44 Panasonic Corporation http://panasonic.net Importer's name and address to follow EU rules: Panasonic Testing Centre Panasonic Marketing Europe GmbH Winsbergring 15, 22525 Hamburg F.R.Germany © Panasonic System Networks Co., Ltd. 2010 Ns0409-3010/1 3TR006038DZA Printed in China...
