Swisher KVF008 Installation Instructions

Part Number: KVF008

INSTRUCTIONS:

1. Remove two screws holding the top of the front gravel shield. This will allow the gravel
shield to clear the front atv bars (replace bolts after winch mount installation).

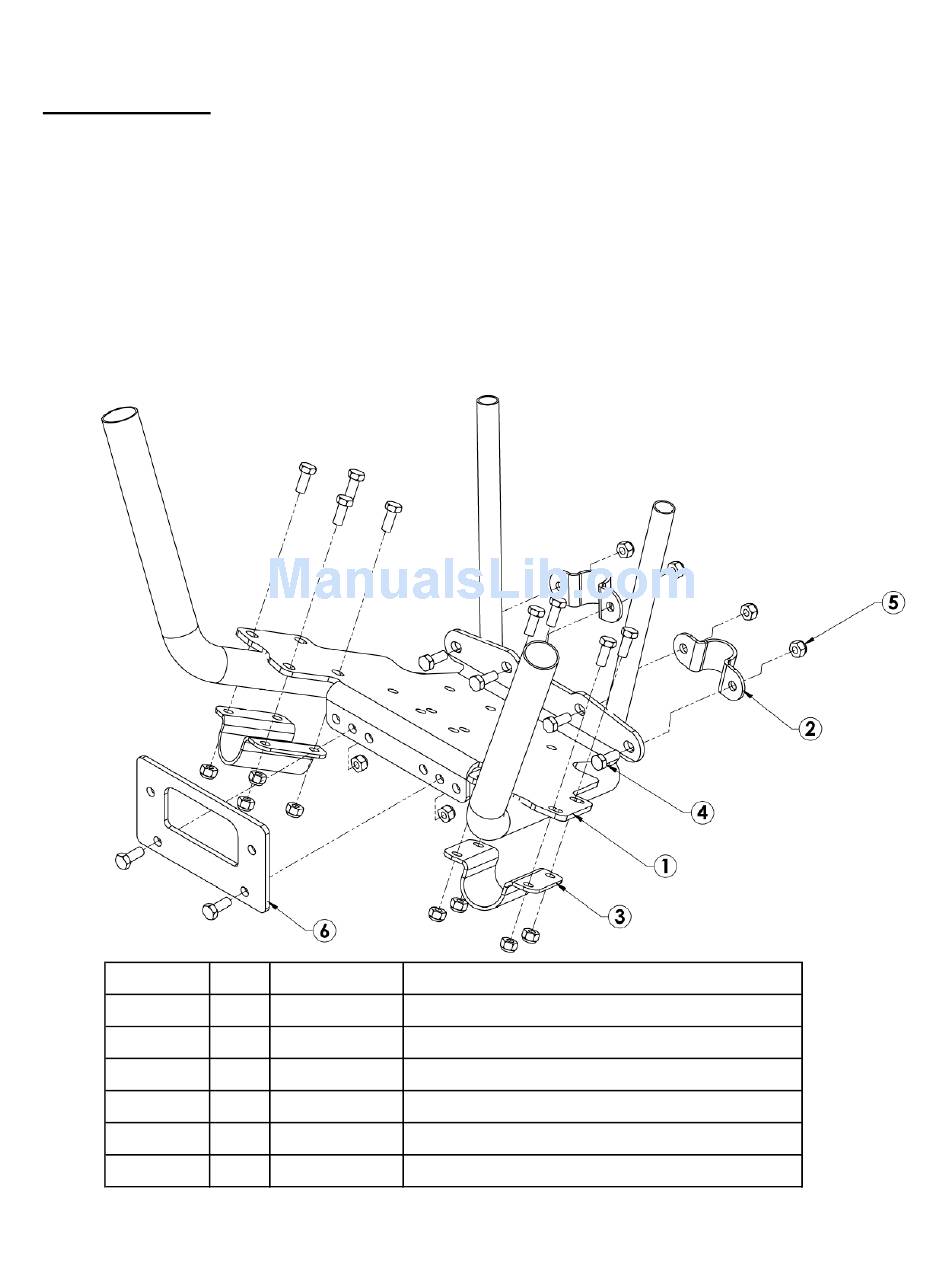

2. Set mounting plate on atv bars as shown below.
3. Install rear frame clamps and loosely assemble (4) 5/16 bolts and nyloc nuts. Install front
frame clamps and loosely assemble (8) 5/16 bolts nyloc nuts. Assure plate is centered on
all atv bars and securely tighten nuts.
4. Install fairlead bracket to mount plate with (2) 5/16 bolts and nyloc nuts.
5. Using fasteners supplied with the winch, assemble winch and roller to the winch mount
plate.
6. Using instructions supplied with winch, wire accordingly.
ITEM NO. QTY. PART NO.
11513
1 1 11510TK
2 2 11511Z
3 2 11512Z
4 12 NB578
5 12 NB181
6 1 11514TK
Please call 1-800-222-8183 with questions or comments
DESCRIPTION
Plate - Mounting; KVF008; Txt Blk
Clamp - Front Frame, KVF008, ZP
Clamp - Rear Frame, KVF008, ZP
5/16-18 X 3/4 GR5 ZP
5/16-18 NYLOC NUT
Bracket - Rllr Fairlead Rnd Holes;Txt Bl
Fits Models: -Brute Force 650 4 x 4i
(Independent Suspension)
-Brute Force 750 4 x 4i
(Independent Suspension)
Rev 06-312
