KUSSMAUL 091-9C-HO Instruction Manual

Pump-plus ho high output air compressor / battery charger

BOOK# 091-9C-HO-3

4-22-2002

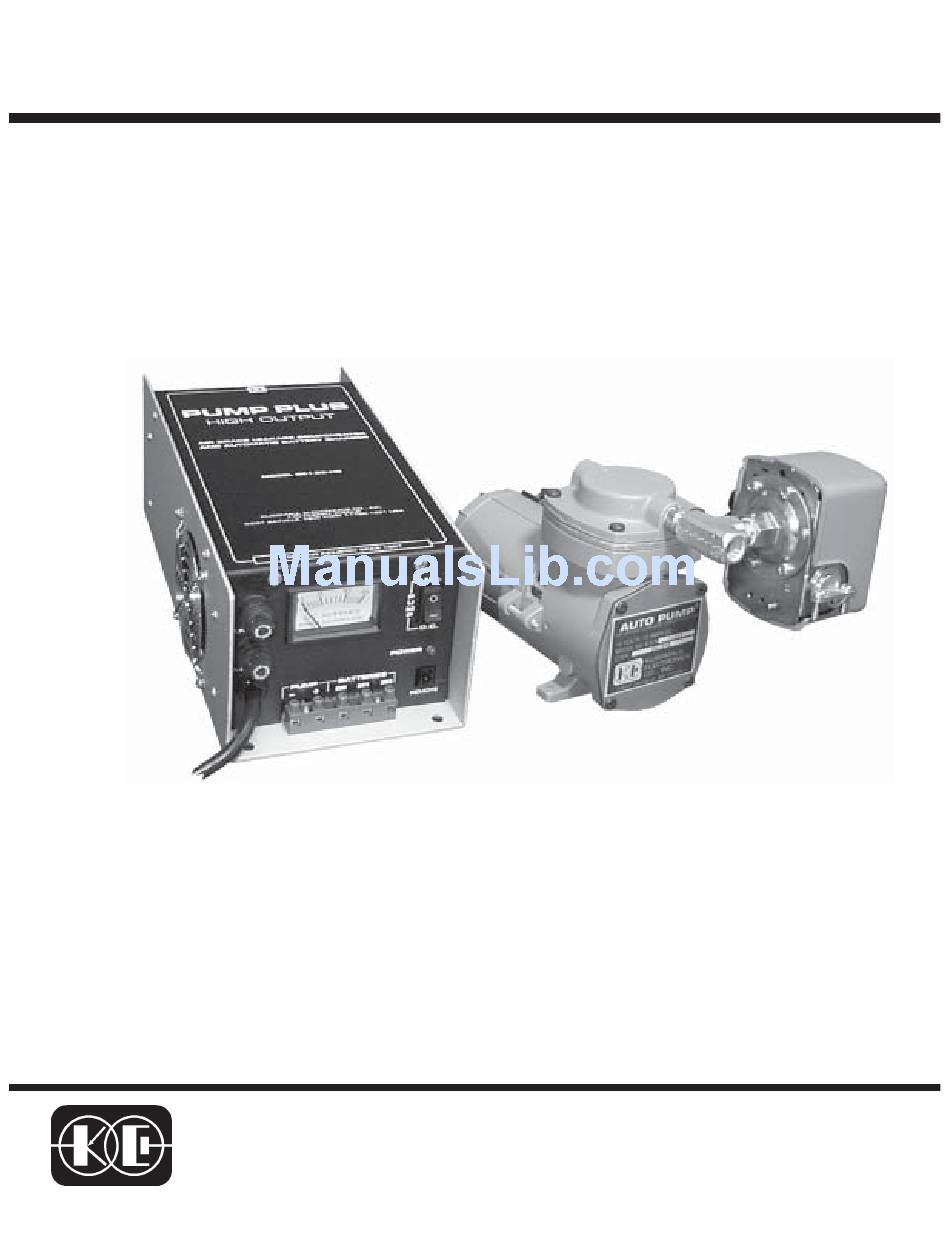

INSTRUCTION MANUAL

PUMP-PLUS HO

HIGH OUTPUT

AIR COMPRESSOR / BATTERY CHARGER

MODEL #091-9C-HO

NOTE :

This charger is designed for

vehicles with dual batteries

and negative ground.

INPUT :120 volt, 50/60 Hz

OUTPUT: 13.25 VOLTS, 11 AMPERES

3 YEAR WARRANTY

KUSSMAUL ELECTRONICS CO., INC

170 CHERRY AVE., WEST SAYVILLE, N.Y. 11796

TEL: in NY 631-567-0314

TOLL FREE: 800-346-0857

FAX: 631-567-5826

Table of Contents

Need help?

Do you have a question about the 091-9C-HO and is the answer not in the manual?

Page 1 INPUT :120 volt, 50/60 Hz OUTPUT: 13.25 VOLTS, 11 AMPERES 3 YEAR WARRANTY KUSSMAUL ELECTRONICS CO., INC 170 CHERRY AVE., WEST SAYVILLE, N.Y. 11796 TEL: in NY 631-567-0314 TOLL FREE: 800-346-0857 FAX: 631-567-5826...
Page 2 INTRODUCTION The Pump Plus HO Automatic Battery Charger is a compact, completely automatic, dual channel battery charger designed for vehicles with a two battery system. The charger is ruggedized to withstand the shock and vibration encoun- tered by vehicle mounted equipment. Battery Charger Features: •...
Page 3 SPECIFICATION Input: 120 volts A.C., 50/60 Hz., 3 amperes Input Fuse: 5 amperes, fast acting Pump Fuse: 15 amperes, slow blow Output Volts: 13.25 volts, nominal Output Current: 0 to 11 amperes, D.C., output determined by the state of charge of the batteries Remote Charge Indicator: Red Led indicates charging current Green Led indicates batteries are fully charged...
Page 5 Kussmaul Electronics Company, Inc. shall have no liability for dam- ages of any kind to associated equipment arising from the installation and /or use of the Kussmaul Electronics Company, Inc. products. The pur- chaser, by the acceptance of the equipment, assumes all liability for any damages which may result from its installation, use or misuse, by the purchaser, his or its employees others.

Pump plus ho 091-9c-ho
