KitchenAid KSCS25FTWH - Architect Series II: 24.5 cu. ft Parts List
Parts diagram
Hide thumbs
Also See for KSCS25FTWH - Architect Series II: 24.5 cu. ft:
- User instructions (24 pages) ,
- Installation instructions manual (24 pages)
Table of Contents
Advertisement
Advertisement
Table of Contents
Related Manuals for KitchenAid KSCS25FTWH - Architect Series II: 24.5 cu. ft
Summary of Contents for KitchenAid KSCS25FTWH - Architect Series II: 24.5 cu. ft
- Page 1 CABINET PARTS REFRIGERATOR For Models: KSCS25FTWH00, KSCS25FTBT00, KSCS25FTBL00, KSCS25FTMS00, KSCS25FTMK00, KSCS25FTSS00 (White) (Biscuit) (Black) (Monochromatic Stainless) (Stainless) (Stainless) 1−07 Printed In U.S.A. (mat) Part No. W10116322 Rev. A...
-
Page 2: Cabinet Parts

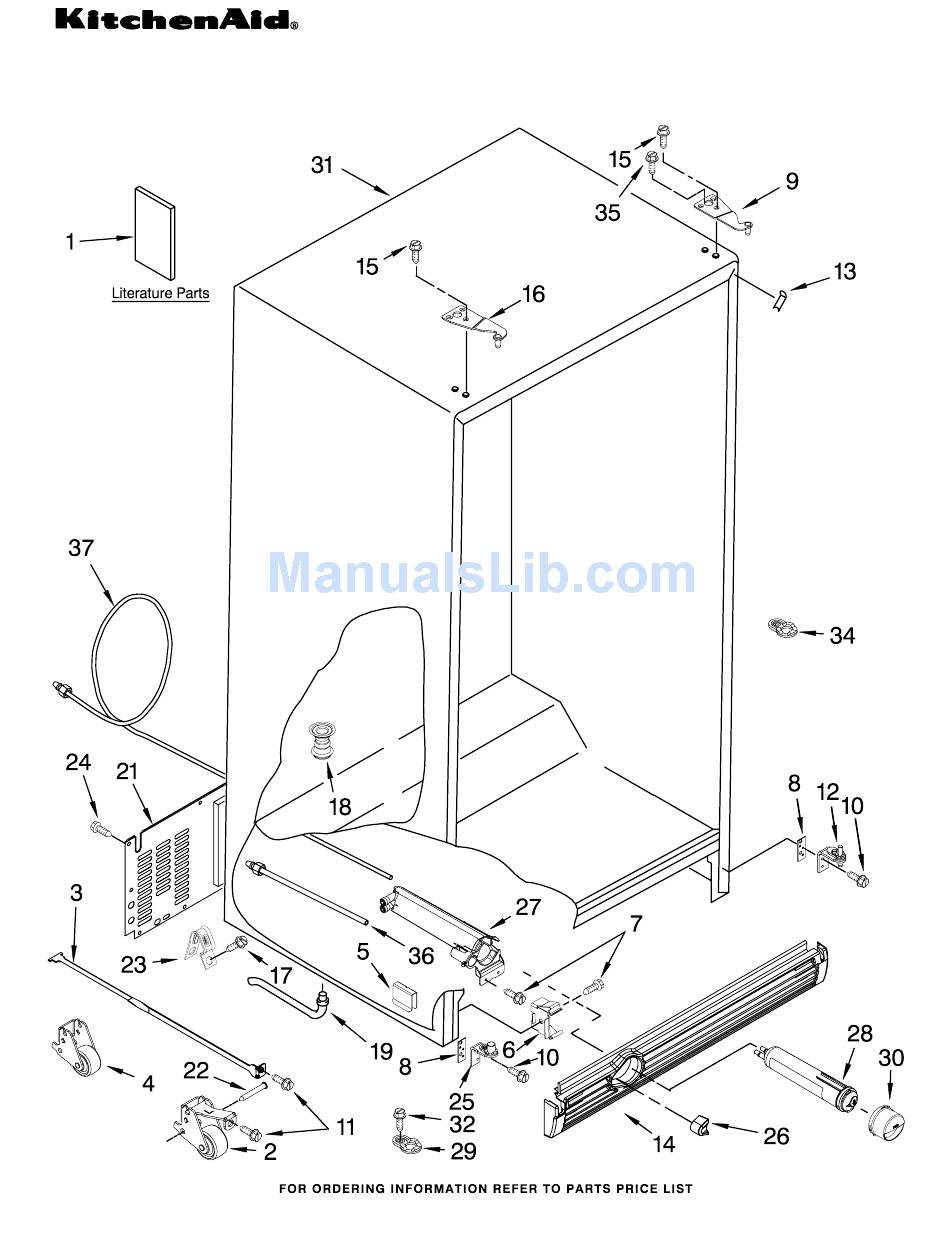

CABINET PARTS For Models: KSCS25FTWH00, KSCS25FTBT00, KSCS25FTBL00, KSCS25FTMS00, KSCS25FTMK00, KSCS25FTSS00 (White) (Biscuit) (Black) (Monochromatic Stainless) (Stainless) (Stainless) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION 489084 Screw Literature Parts 2307179 Hinge Assembly, 2307152 Hinge Assembly, 2323158 Use & Care Guide Bottom−RC Bottom−FC 2303906 Service &... -
Page 3: Refrigerator Liner Parts
REFRIGERATOR LINER PARTS For Models: KSCS25FTWH00, KSCS25FTBT00, KSCS25FTBL00, KSCS25FTMS00, KSCS25FTMK00, KSCS25FTSS00 (White) (Biscuit) (Black) (Monochromatic Stainless) (Stainless) (Stainless) Illus. Part DESCRIPTION Liner (Not A Serviceable Part) 2224121 Escutcheon, Meat Pan Control 2224123 Slide, Meat Pan Control 1118894 Switch, Rocker 2188820 Thermistor 2223456 Ladder, Shelf (2) 2301234 Housing, Door Control... -
Page 4: Refrigerator Shelf Parts
REFRIGERATOR SHELF PARTS For Models: KSCS25FTWH00, KSCS25FTBT00, KSCS25FTBL00, KSCS25FTMS00, KSCS25FTMK00, KSCS25FTSS00 (White) (Biscuit) (Black) (Monochromatic Stainless) (Stainless) (Stainless) Illus. Part DESCRIPTION 2224061 Shelf Assembly, Cantilever (2) 2301025 Button, Humidity 2301026 Slide, Humidity 2301117 Gasket, Side (2) 2203027 Cover, Meat Pan (Includes Items 13, 14, 15 &... -
Page 5: Freezer Liner Parts
FREEZER LINER PARTS For Models: KSCS25FTWH00, KSCS25FTBT00, KSCS25FTBL00, KSCS25FTMS00, KSCS25FTMK00, KSCS25FTSS00 (White) (Biscuit) (Black) (Monochromatic Stainless) (Stainless) (Stainless) W10116322... - Page 6 FREEZER LINER PARTS For Models: KSCS25FTWH00, KSCS25FTBT00, KSCS25FTBL00, KSCS25FTMS00, KSCS25FTMK00, KSCS25FTSS00 (White) (Biscuit) (Black) (Monochromatic Stainless) (Stainless) (Stainless) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION Liner (Not A Glide Assembly, 2255743 Light Bulb Seviceable Part) Basket (2) 8281185 Screw 2223777 Spacer, Slide (2) 2301544 Right Side 2198633 Flipper...
-
Page 7: Motor And Ice Container Parts
MOTOR AND ICE CONTAINER PARTS For Models: KSCS25FTWH00, KSCS25FTBT00, KSCS25FTBL00, KSCS25FTMS00, KSCS25FTMK00, KSCS25FTSS00 (White) (Biscuit) (Black) (Monochromatic Stainless) (Stainless) (Stainless) W10116322... - Page 8 MOTOR AND ICE CONTAINER PARTS For Models: KSCS25FTWH00, KSCS25FTBT00, KSCS25FTBL00, KSCS25FTMS00, KSCS25FTMK00, KSCS25FTSS00 (White) (Biscuit) (Black) (Monochromatic Stainless) (Stainless) (Stainless) Illus. Part DESCRIPTION 2305416 Ice Bin 2305294 Crusher Bin 2258222 Auger 2258220 Washer 1119007 Spacer, Flat (4) 2305244 Cover, Crusher 2257024 Blade, Rotary 1119005 Spacer, Step (2) 2257020 Blade, Fixed...
-
Page 9: Refrigerator Door Parts
REFRIGERATOR DOOR PARTS For Models: KSCS25FTWH00, KSCS25FTBT00, KSCS25FTBL00, KSCS25FTMS00, KSCS25FTMK00, KSCS25FTSS00 (White) (Biscuit) (Black) (Monochromatic Stainless) (Stainless) (Stainless) W10116322... - Page 10 REFRIGERATOR DOOR PARTS For Models: KSCS25FTWH00, KSCS25FTBT00, KSCS25FTBL00, KSCS25FTMS00, KSCS25FTMK00, KSCS25FTSS00 (White) (Biscuit) (Black) (Monochromatic Stainless) (Stainless) (Stainless) Illus. Part DESCRIPTION Refrigerator Door (Includes #7) 2307198W White 2307198T Biscuit 2307198B Black 2307198S Stainless Steel 2307198SU Mono Stainless 2203087K Trim, Shelf 2255421 Dairy Door 2223883 Caddy, Can 2219698 Stud, Handle...
-
Page 11: Freezer Door Parts
FREEZER DOOR PARTS For Models: KSCS25FTWH00, KSCS25FTBT00, KSCS25FTBL00, KSCS25FTMS00, KSCS25FTMK00, KSCS25FTSS00 (White) (Biscuit) (Black) (Monochromatic Stainless) (Stainless) (Stainless) W10116322... - Page 12 FREEZER DOOR PARTS For Models: KSCS25FTWH00, KSCS25FTBT00, KSCS25FTBL00, KSCS25FTMS00, KSCS25FTMK00, KSCS25FTSS00 (White) (Biscuit) (Black) (Monochromatic Stainless) (Stainless) (Stainless) Illus. Part DESCRIPTION Freezer Door (Includes #8 And Dispenser Front Parts) 2319798W White 2319798T Biscuit 2319798B Black 2319798SB Stainless Steel 2319798S Mono Stainless Handle (Includes #6) 2319727W White...
-
Page 13: Dispenser Front Parts
DISPENSER FRONT PARTS For Models: KSCS25FTWH00, KSCS25FTBT00, KSCS25FTBL00, KSCS25FTMS00, KSCS25FTMK00, KSCS25FTSS00 (White) (Biscuit) (Black) (Monochromatic Stainless) (Stainless) (Stainless) W10116322... - Page 14 DISPENSER FRONT PARTS For Models: KSCS25FTWH00, KSCS25FTBT00, KSCS25FTBL00, KSCS25FTMS00, KSCS25FTMK00, KSCS25FTSS00 (White) (Biscuit) (Black) (Monochromatic Stainless) (Stainless) (Stainless) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION Housing, Dispenser 13 2305307CE Pad, Water (White) Trim, Housing (Not Serviced) 2305307MN Biscuit 2315109W White 2308165 Ferrite Bead 2305307GE Black...
-
Page 15: Air Flow Parts
AIR FLOW PARTS For Models: KSCS25FTWH00, KSCS25FTBT00, KSCS25FTBL00, KSCS25FTMS00, KSCS25FTMK00, KSCS25FTSS00 (White) (Biscuit) (Black) (Monochromatic Stainless) (Stainless) (Stainless) Illus. Part DESCRIPTION 2182120 Fan Scroll 2223733 Retainer, Fan Motor 2223298 Air Scoop 2223303 Air Duct, Upper 2223297 Air Duct Freezer 2319914 Bi−Metal, Defrost 2259385 Fan Motor 2169142 Fan Blade 2304241 Gasket, Evaporator... -
Page 16: Control Parts
CONTROL PARTS For Models: KSCS25FTWH00, KSCS25FTBT00, KSCS25FTBL00, KSCS25FTMS00, KSCS25FTMK00, KSCS25FTSS00 (White) (Biscuit) (Black) (Monochromatic Stainless) (Stainless) (Stainless) Illus. Part DESCRIPTION 2318985 Control Box (Includes #6) 2223882 Heat Shield Asm (Includes #17) 2307037 Control Board Asm 2223506 Light Lens, Control Box 2223857 Light Socket 2326255 Light Bulb W10116322... -
Page 17: Unit Parts
UNIT PARTS For Models: KSCS25FTWH00, KSCS25FTBT00, KSCS25FTBL00, KSCS25FTMS00, KSCS25FTMK00, KSCS25FTSS00 (White) (Biscuit) (Black) (Monochromatic Stainless) (Stainless) (Stainless) W10116322... - Page 18 UNIT PARTS For Models: KSCS25FTWH00, KSCS25FTBT00, KSCS25FTBL00, KSCS25FTMS00, KSCS25FTMK00, KSCS25FTSS00 (White) (Biscuit) (Black) (Monochromatic Stainless) (Stainless) (Stainless) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION 777070 Screw 2223398 Tray, Evaporator Following Parts Not Illustrated 2225834 Fan, Blade 2224022 Heat Shield 2223315 Condenser and Optional Parts Not Included Drier...
-
Page 19: Icemaker Parts
ICEMAKER PARTS For Models: KSCS25FTWH00, KSCS25FTBT00, KSCS25FTBL00, KSCS25FTMS00, KSCS25FTMK00, KSCS25FTSS00 (White) (Biscuit) (Black) (Monochromatic Stainless) (Stainless) (Stainless) W10116322... - Page 20 ICEMAKER PARTS For Models: KSCS25FTWH00, KSCS25FTBT00, KSCS25FTBL00, KSCS25FTMS00, KSCS25FTMK00, KSCS25FTSS00 (White) (Biscuit) (Black) (Monochromatic Stainless) (Stainless) (Stainless) Illus. Part DESCRIPTION 489084 Screw 2256096 Fitting, Water Tube 628379 Clip, Fuse 2313394 Shield, Water Valve 489478 Screw 2319734 Water Valve Asm 2208136 Tube Clip 2174358 Cover 488649 Screw 628228 Mold &...
- Page 21 OPTIONAL PARTS (NOT INCLUDED) For Models: KSCS25FTWH00, KSCS25FTBT00, KSCS25FTBL00, KSCS25FTMS00, KSCS25FTMK00, KSCS25FTSS00 (White) (Biscuit) (Black) (Monochromatic Stainless) (Stainless) (Stainless) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION ACCESSORIES PAINT, BULK (1 qt.) PAINT, PRESSURIZED SPRAY (12 oz.) Previous Architect Series Handle Kit 799340 Black 350942 Primer, White...
