- Page 1 CABINET PARTS REFRIGERATOR For Models: KSCS25FSWH00, KSCS25FSBT00, KSCS25FSBL00, KSCS25FSMS00 (White) (Biscuit) (Black) (Monochromatic Stainless) Part No. 8214933 05−06 Printed In U.S.A. (kdr)
-
Page 2: Cabinet Parts

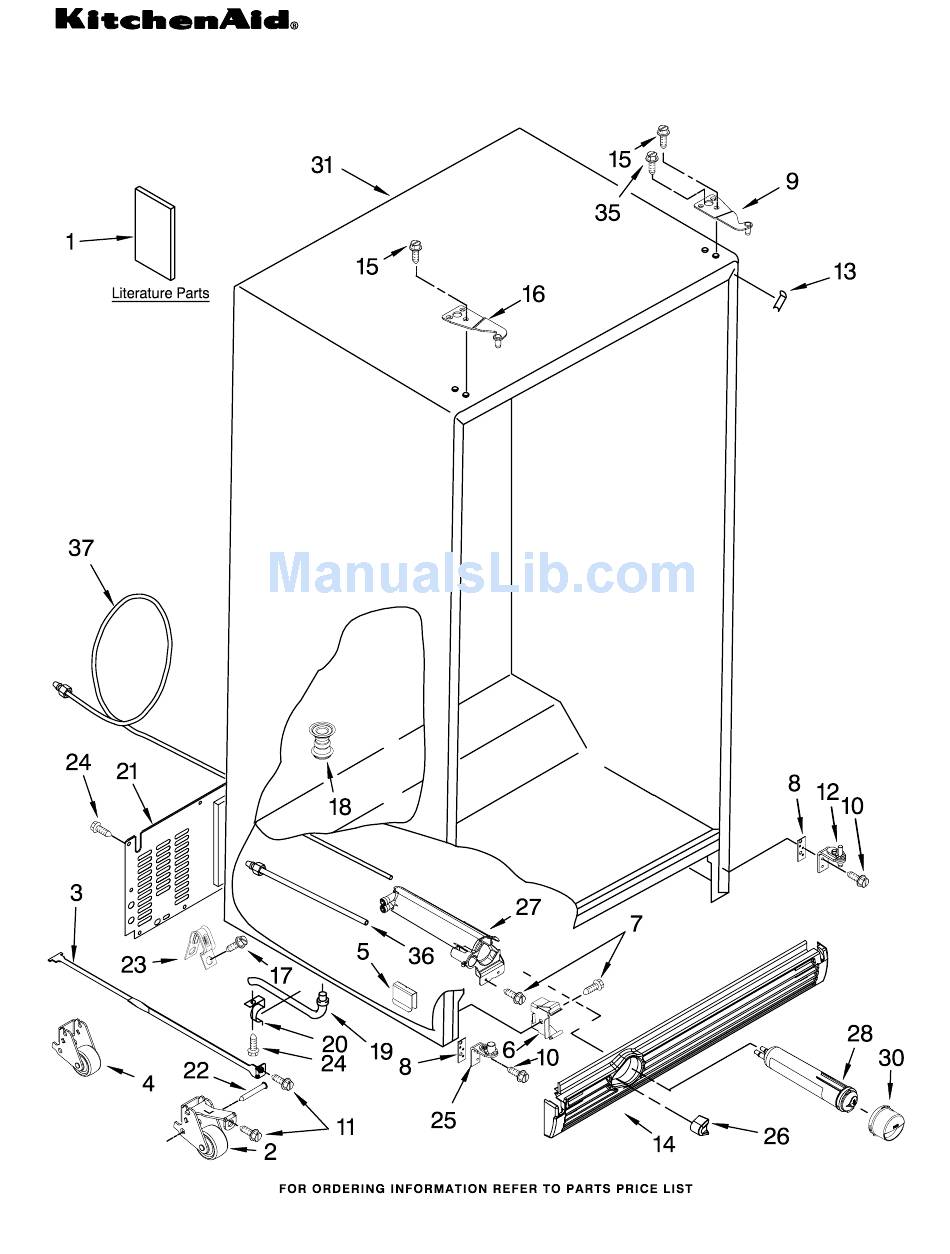

CABINET PARTS For Models: KSCS25FSWH00, KSCS25FSBT00, KSCS25FSBL00, KSCS25FSMS00 (White) (Biscuit) (Black) (Monochromatic Stainless) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION Literature Parts 489084 Screw 2223520 Hinge Assembly, 2318583 Use & Care Guide 2223460 Hinge Assembly, Bottom−RC 2223419 Service & Wiring Bottom−FC Filler, Wrapper Sheet... -
Page 3: Refrigerator Liner Parts
REFRIGERATOR LINER PARTS For Models: KSCS25FSWH00, KSCS25FSBT00, KSCS25FSBL00, KSCS25FSMS00 (White) (Biscuit) (Black) (Monochromatic Stainless) Illus. Part DESCRIPTION Liner (Not A Serviceable Part) 2224121 Escutcheon, Meat Pan Control 2224123 Slide, Meat Pan Control 1118894 Switch, Rocker 2188820 Thermistor 2223456 Ladder, Shelf (2) 2301234 Housing, Door Control 489084 Screw... -
Page 4: Refrigerator Shelf Parts
REFRIGERATOR SHELF PARTS For Models: KSCS25FSWH00, KSCS25FSBT00, KSCS25FSBL00, KSCS25FSMS00 (White) (Biscuit) (Black) (Monochromatic Stainless) Illus. Part DESCRIPTION 2224061 Shelf Assembly, Cantilever (2) 2301025 Button, Humidity 2301026 Slide, Humidity 2301117 Gasket, Side (2) 2203027 Cover, Meat Pan (Includes Items 13, 14, 15 & 20) 2301023 Snack Pan (Includes 30 &... -
Page 5: Freezer Liner Parts
FREEZER LINER PARTS For Models: KSCS25FSWH00, KSCS25FSBT00, KSCS25FSBL00, KSCS25FSMS00 (White) (Biscuit) (Black) (Monochromatic Stainless) 8214933... - Page 6 FREEZER LINER PARTS For Models: KSCS25FSWH00, KSCS25FSBT00, KSCS25FSBL00, KSCS25FSMS00 (White) (Biscuit) (Black) (Monochromatic Stainless) Illus. Part DESCRIPTION Liner (Not A Seviceable Part) 2223777 Spacer, Slide (2) 2196483 Stud Assembly 2223811 Basket, Deep (2) (Includes #11) 8281158 Screw 2223500 Shelf Assembly, Cantilever (2) 2224053 Front, Basket Shelf Track...
-
Page 7: Motor And Ice Container Parts
MOTOR AND ICE CONTAINER PARTS For Models: KSCS25FSWH00, KSCS25FSBT00, KSCS25FSBL00, KSCS25FSMS00 (White) (Biscuit) (Black) (Monochromatic Stainless) 8214933... - Page 8 MOTOR AND ICE CONTAINER PARTS For Models: KSCS25FSWH00, KSCS25FSBT00, KSCS25FSBL00, KSCS25FSMS00 (White) (Biscuit) (Black) (Monochromatic Stainless) Illus. Part DESCRIPTION 2223317 Ice Bin 2255580 Crusher Bin 2258222 Auger 2258220 Washer 1119007 Spacer, Flat (4) 2255460 Cover, Crusher 2257024 Blade, Rotary 1119005 Spacer, Step (2) 2257020 Blade, Fixed 2257023 Blade, Rotary 2198602 Block, Blade...
-
Page 9: Refrigerator Door Parts
REFRIGERATOR DOOR PARTS For Models: KSCS25FSWH00, KSCS25FSBT00, KSCS25FSBL00, KSCS25FSMS00 (White) (Biscuit) (Black) (Monochromatic Stainless) 8214933... - Page 10 REFRIGERATOR DOOR PARTS For Models: KSCS25FSWH00, KSCS25FSBT00, KSCS25FSBL00, KSCS25FSMS00 (White) (Biscuit) (Black) (Monochromatic Stainless) Illus. Part DESCRIPTION Refrigerator Door (Includes #7) 2223917W White 2223917T Biscuit 2223917B Black 2223917SA Stainless Steel 2203087K Trim, Shelf 2255421 Dairy Door 2223883 Caddy, Can 2165792K Butter Dish 2219698 Stud, Handle Door Gasket, Magnetic...
-
Page 11: Freezer Door Parts
FREEZER DOOR PARTS For Models: KSCS25FSWH00, KSCS25FSBT00, KSCS25FSBL00, KSCS25FSMS00 (White) (Biscuit) (Black) (Monochromatic Stainless) 8214933... - Page 12 FREEZER DOOR PARTS For Models: KSCS25FSWH00, KSCS25FSBT00, KSCS25FSBL00, KSCS25FSMS00 (White) (Biscuit) (Black) (Monochromatic Stainless) Illus. Part DESCRIPTION Freezer Door (Includes #8 And Dispenser Front Parts) 2318822W White 2318822T Biscuit 2318822B Black 2318822SU Stainless Steel Handle (Includes #6) 2319727W White 2319727T Biscuit 2319727B Black 2319727S Stainless Steel 2219698 Stud, Handle...
-
Page 13: Dispenser Front Parts
DISPENSER FRONT PARTS For Models: KSCS25FSWH00, KSCS25FSBT00, KSCS25FSBL00, KSCS25FSMS00 (White) (Biscuit) (Black) (Monochromatic Stainless) 8214933... - Page 14 DISPENSER FRONT PARTS For Models: KSCS25FSWH00, KSCS25FSBT00, KSCS25FSBL00, KSCS25FSMS00 (White) (Biscuit) (Black) (Monochromatic Stainless) Illus. Part DESCRIPTION Housing, Dispenser (Not Serviced) 3196537 Screw 2194719 Retainer, Levers 2180209 Spring, Torsion 2196195 Pin 2180353 Door, Ice 2304355 Door Mechanism Assembly 2205686 Mechanism Delay Grille, Overflow 2206670W White 2206670T Biscuit...
-
Page 15: Air Flow Parts
AIR FLOW PARTS For Models: KSCS25FSWH00, KSCS25FSBT00, KSCS25FSBL00, KSCS25FSMS00 (White) (Biscuit) (Black) (Monochromatic Stainless) Illus. Part DESCRIPTION 2182120 Fan Scroll 2223733 Retainer, Fan Motor 2223298 Air Scoop 2223303 Air Duct, Upper 2223297 Air Duct Freezer 2315504 Bi−Metal, Defrost 2259385 Fan Motor 2169142 Fan Blade 2304241 Gasket, Evaporator Cover (2) -
Page 16: Control Parts
CONTROL PARTS For Models: KSCS25FSWH00, KSCS25FSBT00, KSCS25FSBL00, KSCS25FSMS00 (White) (Biscuit) (Black) (Monochromatic Stainless) Illus. Part DESCRIPTION 2306989 Control Box (Includes #6) 2223882 Heat Shield Asm (Includes #17) 2307037 Control Board Asm 2223506 Light Lens, Control Box 2223857 Light Socket 2223678 Light Bulb 8214933... -
Page 17: Unit Parts
UNIT PARTS For Models: KSCS25FSWH00, KSCS25FSBT00, KSCS25FSBL00, KSCS25FSMS00 (White) (Biscuit) (Black) (Monochromatic Stainless) 8214933... - Page 18 UNIT PARTS For Models: KSCS25FSWH00, KSCS25FSBT00, KSCS25FSBL00, KSCS25FSMS00 (White) (Biscuit) (Black) (Monochromatic Stainless) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION 777070 Screw 2224022 Heat Shield Following Parts Not Illustrated 2225834 Fan, Blade Drier and Optional Parts Not Included 2223315 Condenser 2319825 Production Assembly...
-
Page 19: Icemaker Parts
ICEMAKER PARTS For Models: KSCS25FSWH00, KSCS25FSBT00, KSCS25FSBL00, KSCS25FSMS00 (White) (Biscuit) (Black) (Monochromatic Stainless) 8214933... - Page 20 ICEMAKER PARTS For Models: KSCS25FSWH00, KSCS25FSBT00, KSCS25FSBL00, KSCS25FSMS00 (White) (Biscuit) (Black) (Monochromatic Stainless) Illus. Part DESCRIPTION 489084 Screw 2256096 Fitting, Water Tube 628379 Clip, Fuse 489478 Screw 2315533 Water Valve Asm 2208136 Tube Clip 2174358 Cover 488649 Screw 628228 Mold & Heater Assembly (Also Order 542638 628356 Cup, Water Fill...
- Page 21 OPTIONAL PARTS (NOT INCLUDED) For Models: KSCS25FSWH00, KSCS25FSBT00, KSCS25FSBL00, KSCS25FSMS00 (White) (Biscuit) (Black) (Monochromatic Stainless) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION PAINT, PRESSURIZED SPRAY Miscellaneous ACCESSORIES (12 oz.) Previous Architect 212643 Sealer, Gum Series Handle Kit 350942 Primer, White (4 Feet) 8201803 White 350939 Black...
