SPEAKER WIRING DIAGRAMS

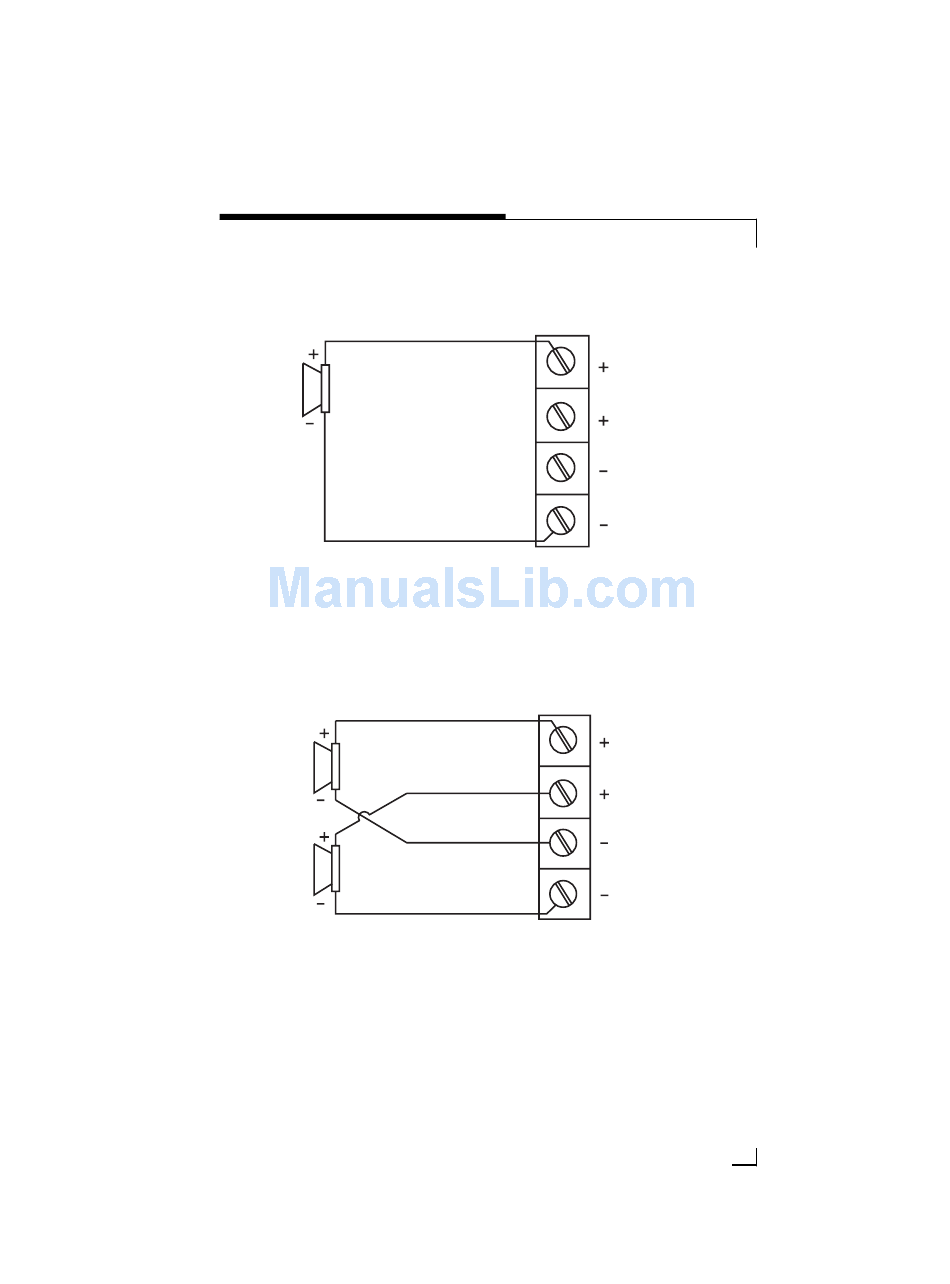

Single subwoofer connection (top view)

Two subwoofer connection (top view)

N N O O T T E E : :

The dual + and -- sub-out terminals of the D600/D800/D1200/D2400 are paralleled internally and the combined load

impedance should be taken into consideration when connecting multiple subwoofers.
