Summary of Contents for Directed Electronics 64602610 400.2

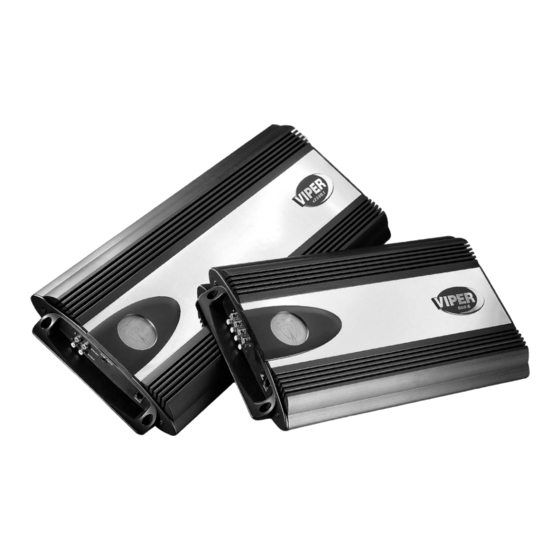

- Page 1 model 400.2...
- Page 2 © 2002 Directed Electronics, Inc...
-
Page 3: Table Of Contents
Specifications .........14 © 2002 Directed Electronics, Inc delight the mobile sound enthusiast with years of high-quality audio reproduction. -
Page 4: Limited Two-Year Consumer Warranty
LIMITED TWO-YEAR CONSUMER WARRANTY Directed Electronics, Inc. promises to the original purchaser, to replace this product should it prove to be defective in workman- ship or material under normal use, for a period of two years from the date of... -
Page 5: Features
© 2002 Directed Electronics, Inc Continuously variable 12 dB/ octave two-way active crossover. Variable 12 dB bass EQ function. Buffered stereo full-range RCA output jacks. -
Page 6: Installation Guidelines
8. This amplifier is designed to drive a speaker load that measures from 2 to 8 ohms. Keep in mind that heat is the long-term enemy of automo- tive electronics and the lower your speaker load, the more heat is © 2002 Directed Electronics, Inc... -
Page 7: Wire Connector Plugs
1. Always use the proper gauge wire for the connector. 2. Cut wires to the minimum length necessary. © 2002 Directed Electronics, Inc 10. Due to the high-frequency MOSFET switching power supply, filtering the power cable is not generally required (remember that the amp can’t deliver full output if the power... -
Page 8: Front Panel Connections/Status Led
3. P P o o w w e e r r F F u u s s e e s s - These fuses protect the amplifier against internal elec- trical damage and are meant to protect the amplifier only. All other power connections should be fused at the source. © 2002 Directed Electronics, Inc... - Page 9 FIGURE 2—AMPLIFIER CONNECTIONS 400.2 REAR © 2002 Directed Electronics, Inc wire necessary to make this connection. Always use wire of the same gauge or larger than the (+) 12 volt power wire.
-
Page 10: Top Panel Controls
4. V V a a r r i i a a b b l l e e B B a a s s s s E E Q Q - Adds 0 to12db of additional boost to the speaker output when active. © 2002 Directed Electronics, Inc... -
Page 11: Top Panel Features
Pry slowly and evenly from several points to avoid deforming or © 2002 Directed Electronics, Inc cracking the window. 2. Apply two of the precut pieces of adhesive tape to the corners of the window that don't have tape. -
Page 12: Speaker Wiring Diagrams
SPEAKER WIRING DIAGRAMS Stereo operation (bottom view) Mono operation (bottom view) Simultaneous stereo/mono operation (bottom view) © 2002 Directed Electronics, Inc... -
Page 13: Crossover Settings And Gain Adjustment
Again, plan on spending some time with music that you know, getting the gain and crossover settings the way you like. Test discs and analyzers may help with this process, but in the end it's your ears that count - listen to the music! © 2002 Directed Electronics, Inc... -
Page 14: Specifications
12 dB/octave, continuously variable from 50 to 500 Hz Variable 0-12 dB 20K ohms Variable from 150 mV to 8 volt 2 to 8 ohms, stereo 4 to 8 ohms, bridged 10 to 16 VDC © 2002 Directed Electronics, Inc... - Page 16 Quality Directed products are sold and serviced throughout North America and around the world Call 800 274 0200 for more information about our products and services © 2002 Directed Electronics, Inc. - All rights reserved - G46026 02/02 The company behind this system is Directed Electronics, Inc.
