Canon 7215 - LV XGA LCD Projector Assembly & Installation Manual

Mounting hanger for low ceilings.
Hide thumbs


Advertisement

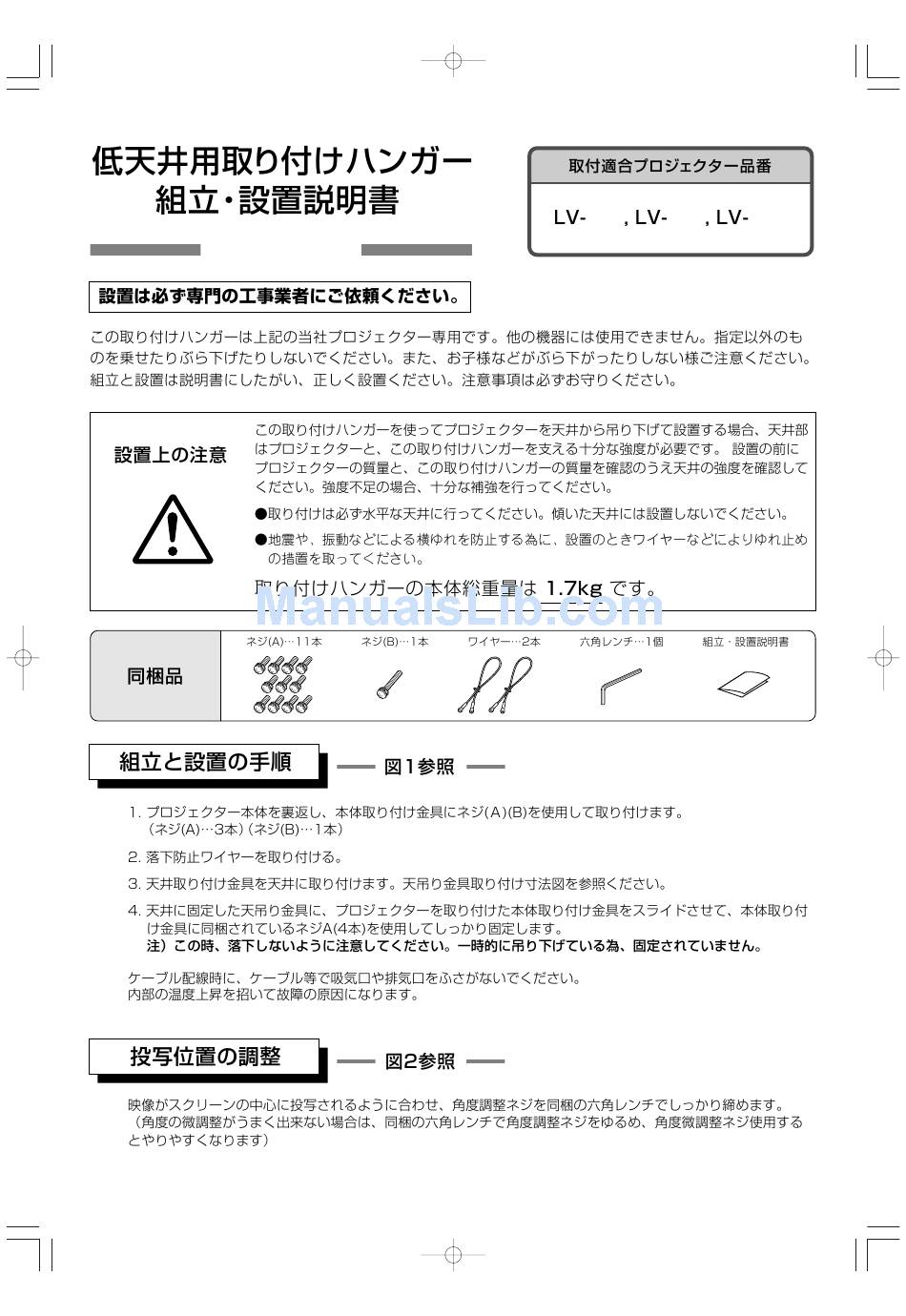

取付ハンガー(LV-CL08) 03.8.26 7:40 PM ページ1
7215
7210
5210
LV-CL08

Advertisement

   Related Manuals for Canon 7215 - LV XGA LCD Projector

   Summary of Contents for Canon 7215 - LV XGA LCD Projector

  • Page 1

    取付ハンガー(LV-CL08) 03.8.26 7:40 PM ページ1 7215 7210 5210 LV-CL08...

  • Page 2

    取付ハンガー(LV-CL08) 03.8.26 7:40 PM ページ2...

  • Page 3

    取付ハンガー(LV-CL08) 03.8.26 7:40 PM ページ3...

  • Page 4

    取付ハンガー(LV-CL08) 03.8.26 7:40 PM ページ4...

  • Page 5

    取付ハンガー(LV-CL08) 03.8.26 7:40 PM ページ5 Mounting Hanger for Low Ceilings Applicable Projector Model Nos. Assembly/Installation Manual 7215 7210 5210 LV-CL08 Make sure to ask a company specializing in installation work to install the hanger. This mounting hanger is specifically for the projectors shown above. It cannot be used for any other equipment.

  • Page 6

    取付ハンガー(LV-CL08) 03.8.26 7:40 PM ページ6 Fig. 1 Assembly Screws (A) Plus screw with round head M4 x 12 (3 pcs.) with spring washer and flat washer Screw (B) Main body mounting fitting (1 pc.) Plus screw with round head M4 x 40 (1 pc.) with spring washer and flat washer Projector main body Wire...

  • Page 7

    取付ハンガー(LV-CL08) 03.8.26 7:40 PM ページ7 Fig. 2 Adjustment Angle fine-adjusting screw This screw facilitates fine adjustment of the projection angle while the projector is half fixed. After determining the projection angle, make sure to fix securely the projector with the angle adjusting screws. Angle adjusting screws (with hexagon socket) Rotated 360°...

  • Page 8

    取付ハンガー(LV-CL08) 03.8.26 7:40 PM ページ8 (Unit: mm) (Unit: mm) Front view Side view 127.5 185.5 43.5 Ceiling hanging fitting mounting dimensions Hole 4-ø9 ■ Approximate projection distance Screen size (diagonal)(inch) Maximum zoom 1.0m 1.5m 1.8m 2.0m 2.3m 2.5m 2.8m 3.1m 3.8m 5.1m 6.4m...

This manual also for:

Lv-7210 - xga lcd projector, Lv-5210, Lv-7215, Lv-cl08
