Hunter Original 27187 Instructions

Remote fan & light control

Advertisement

Quick Links

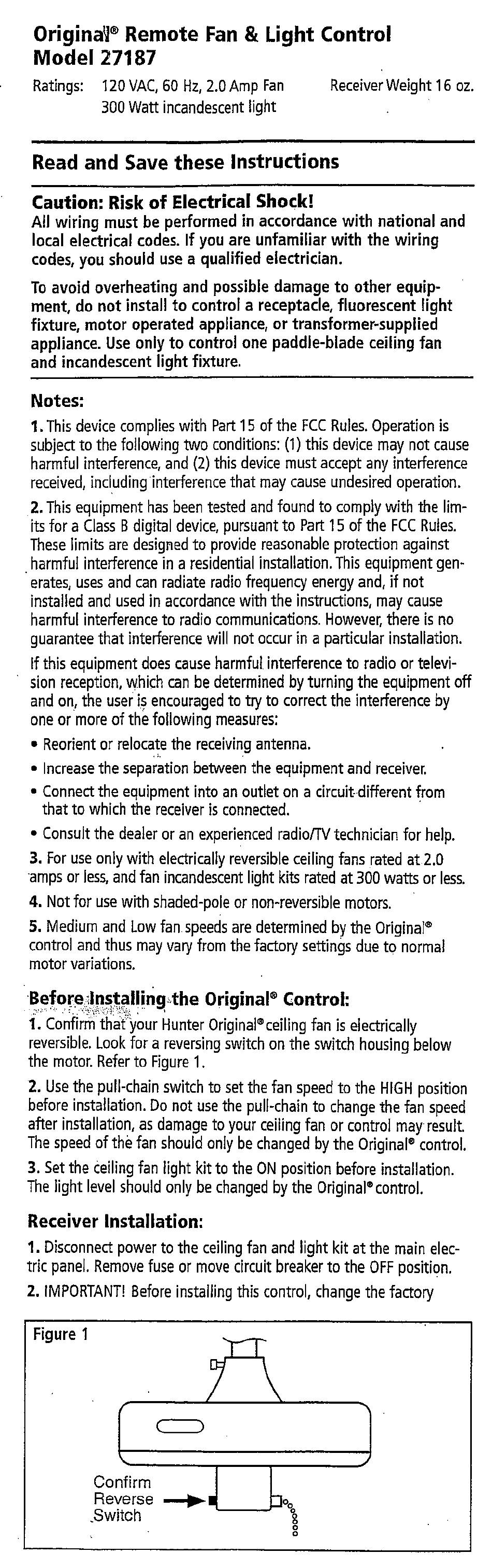

OriginåP Remote Fan & Light Control
Model
27187
Ratings:
120 VAC, 60 Hz,2.0 Amp Fan
300Wattincandescent light
Read and Save these Instructions
Caution:
Risk of Electrical
All wiring must be performedin accordance with national and
local electricalcodes.If you are unfamiliar with the wiring
codes,you should usea qualified electrician.
To avoid overheating and possible damage to other equip-
ment, do not install to control a receptacle, fluorescent light
fixture, motor operated appliance, or transformer-supplied
appliance.Useonly to control one paddle-bladeceiling fan
and incandescent light fixture.
Notes:
I. Thisdevicecomplieswith Pan15 of the FCCRules. O perationis
subjectto the following two conditions:(1)this devicemay not cause
harmful interference, a nd (2) this devicemust acceptany interference
received, i ncludinginterference that maycauseundesiredoperation.
2. Thisequipmenthasbeentested andfound to complywith the lim-
its for a ClassBdigital device,pursuantto Part15 of the FCCRules.
Theselimits aredesignedto providereasonable protection against
harmful i nterference i n aresidential installation. Thisequipment gen-
erates,usesand can radiateradio frequencyenergyand,if not
installedand usedin accordance with the instructions,maycause
harmful interference to radio communications. H owever, t here is no
guarantee t hatinterference w ill notoccur in a particular installation.
If this equipmentdoescauseharmful interference to radio or televi-
Sionreception, whichcanbedetermined b yturningthe equipment off
andon, the useris encouraged to try to correctthe interferenceby
oneor moreofthefollowingmeasures:
• Reorientor relocatethe receivingantenna.
• Increase the separationbetweenthe equipmentand receiver.
• Connectthe equipmentinto an outlet on a circuitdifferent from
that to which the receiver is connected.
• Consult t he dealer o r anexperienced radiofTV technician for help.
3. For useonlywith electricallyreversibleceilingfans rated at 2.0
•ampsor less, a nd fan incandescent light kits ratedat 300watts or less.
4. Notfor usewithshaded-poie or non-reversible motors.
5. Medium andLowfanspeeds a redetermined b yfre Original'
control a ndthusmayvaryfromthefactorysettings dueto normal
motor variations.
Before •Installing the Original' Control:
I. Confirm that:your Hunter Original' ceiling faniselectrically
reversible. Look fora reversing switch ontheswitch housing b elow
themotor.Refer t o Figure I.
2. Use thepull-chain switch to setthefanspeed to theHIGH position
before installation. Donotuse thepull-chain to change t hefanspeed
afterinstallation, asdamage t o your c eiling fanorcontrol mayresult.
Thespeed o f théfanshould only bechanged bytheOriginal' control.
3. Settheceilingfanlight kit to theONposition beforeinstallation.
Thelight levelshould onlybechanged b ythe Original' c ontrol.
Receiver
Installation:
I. Disconnect p ower to the ceilingfan and light kit at the main elec-
tric panel. R emove f useor move circuitbreaker t o theOFF position.
2. IMPORTANT!
Figure I
Confirm
Reverse
Switch
Before installing thiscontrol,change thefactory
Receiver W eight 16 oz.
Shock!

Advertisement

loading
Need help?

Need help?

Do you have a question about the Original 27187 and is the answer not in the manual?

Questions and answers

Summary of Contents for Hunter Original 27187

  • Page 1 Before •Installing the Original' Control: I. Confirm that:your Hunter Original' ceiling faniselectrically reversible. Look fora reversing switch ontheswitch housing b elow themotor.Refer t o Figure I. 2. Use thepull-chain switch to setthefanspeed to theHIGH position before installation.
  • Page 2 Figure 2 Dip Switch aaaa Receiver 1234 Transmitter Back Dip Switch Selectyour own uniquecode,beingsuresettings match in the transmitter and receiver. default dip switch settingsto yourown uniquecode.Refer to Figure2. Besurethe dip switch positionsof the transmitter and receiver match, or the ceilingfan will not function. Select d ifferent c ombinations ofdipswitches t o prevent m is-operation dueto otherremote control f ans,garage dooropeners, etc.
  • Page 3 Figure 5 Receiver Black' Power Bare Ground White/ Black Copper from White Neutral Outlet Common Green Through-Lead for Light Kit Wiring Diagram Transmitter Installation: 1. Install a 9volt batteryinside thehand-held t ransmitter a ftersetting the dip switchesto matchthe dip switchesin the receiver. 2.
  • Page 4 HUNTER FAN COMPANY ORIGINAL' CONTROL LIMITED WARRANTY The Hunter Fan Company makes thefollowing limited w arranty totheoriginal purchaser Of t heOriginal' Control ("Control"): Your Control iswarranted tobeheefrom defects in material andworkmanship foraperiod o foneyear f romthedate ofsale. I ftheControl malfunctions orfails within thewarranty period d ue to adefect in material or Replace w ith new,alkaline battery.
