Summary of Contents for Emerson HD13002

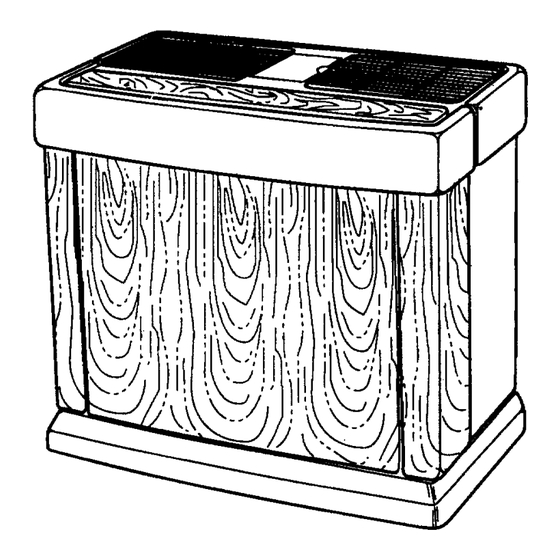

- Page 1 HD1300 3 US manual 11/14/00 1:40 PM Page 1 CAUTION: Read all instructions carefully before installation. Save this Owner’s Manual for future reference. Model No. HD1300 3 EMERSON ® HD1300 ™ MoistAIR Evaporative Console Humidifier Owner’s Manual Part No. SP6305...
-
Page 2: General Safety Instructions
Emerson Electric Co. Service Centre, and we will repair or replace, at our option, at no charge to you with return freight paid by Emerson. It is agreed that such repair or replacement is the exclusive remedy available from Emerson Electric Co. -
Page 3: Know Your Humidifier
HD1300 3 US manual 11/14/00 1:40 PM Page 3 Know Your Humidifier Control Panel Cover & Pivoting Lid Removed for Clarity Fan Assembly Controls Bottles Fill Light Filter Housing Filters: Replacement No. HDC-12 Description HD1300 Litre Output/24 hrs. Capacity of Bottles 2-3/8 Gallons Each * Sq. -
Page 4: Humidifier Operations
11/14/00 1:40 PM Page 4 Humidifier Operations Humidified Air is Your new Emerson humidifier is designed to Then Released satisfy home humidity requirements through the Through the Top principle of evaporation of water into the air. After water is added to the bottles and posi-... -
Page 5: Location Instructions
HD1300 3 US manual 11/14/00 1:40 PM Page 5 Location Instructions WARNING: For your own safety, do not appropriate the unit should be repositioned in use humidifier if any parts are damaged another location. NOTE: Due to release of cool, moist air from or missing. - Page 6 Fill with recom- Valve mended mixture of cold water and if neces- Cap Plunger sary Emerson WT-BC Bacteriostat only. Do not add solid debris as this could make the valve leak. Install the “E-Z-Fill Side-Cap” by twisting clockwise. Hand tighten only.
-
Page 7: Operating Humidifier Controls
The operating controls of your Emerson Fan Control evaporative humidifier are located on the top Your Emerson humidifier allows a choice to centre of the humidifier. The controls are be made for single or dual fan control. The found under the smoked cover, located slide switch located closest to the front of the between the air circulating fans. -
Page 8: Using Your Humidifier
5. Replace the evaporative wicking filters at ing the humidifier. least once per humidification season or more depending on water conditions in 3. Use Emerson recommended bacteriostat your area. WT-BC to retard bacteria growth that may cause odors and may be harmful to your... -
Page 9: Replacement And Care Of Filters
All filters may be rinsed in clear water only. Take care not to damage paper. To replace the evaporative wicking filters in your Emerson humidifier, follow the instruc- tions below. 1. Unplug humidifier, and proceed to clean. Pivoting... - Page 10 HD1300 3 US manual 11/14/00 1:40 PM Page 10 Replacement and Care of Filters (continued) Fixed Tabs c. Install new filters in the filter housing track with the glue beads of the wicking Spring Tabs pad to the inside of the filter housing. d.
-
Page 11: Cleaning Your Humidifier
The bottles of the 13 gallon unit will hold 2- Step 3 3/8 gallons of water each. Install new filters (use Emerson HDC-12 Step 1 Replacement Filters) into the location where the old filters were positioned. Install water To make cleaning easier, the humidifier cabi- level float at back of cabinet. -
Page 12: Bi-Weekly Maintenance
HD1300 3 US manual 11/14/00 1:40 PM Page 12 Cleaning Your Humidifier (continued) 2. Empty humidifier cabinet after 20 min- Bi-Weekly Maintenance utes. Rinse with water until bleach smell Removing Scale is gone. Allow unit to dry out completely. 1. Fill the humidifier cabinet with one 8 oz. 3. -
Page 13: Troubleshooting
Install coasters under front casters. CAUTION: Use only Emerson WT-BC EPA Registered Bacteriostat available from your local retail store or by calling (800) 654-3545. Use of other water treatment products may damage the filter elements. Under no circumstances should you use water treatment products designed for Rotobelt or Ultrasonic humidifiers. -
Page 14: Repair Parts
HD1300 3 US manual 11/14/00 1:40 PM Page 14 Repair Parts PARTS LIST FOR EMERSON HUMIDIFIERS MODEL NO. HD1300 3... - Page 15 HD1300 3 US manual 11/14/00 1:40 PM Page 15 Repair Parts PARTS LIST FOR EMERSON HUMIDIFIER MODEL NO. HD1300 3 Key No. Part No. Description 823884 Cover, Dust 823730-3 Lid, Stationary 823724-3 Lid, Pivoting 826544-1 Knob 824117 Cap, Glamour 825976...
- Page 16 11/14/00 1:40 PM Page 16 FOR PARTS OR TECHNICAL HELP, CALL (800) 654-3545 (Please have complete model number) 8100 W. Florissant St. Louis, Mo. 63136 © 2000 Emerson Electric Co. Part No. SP6305 Form No. SP6305-1 Printed in Canada 09/00...
