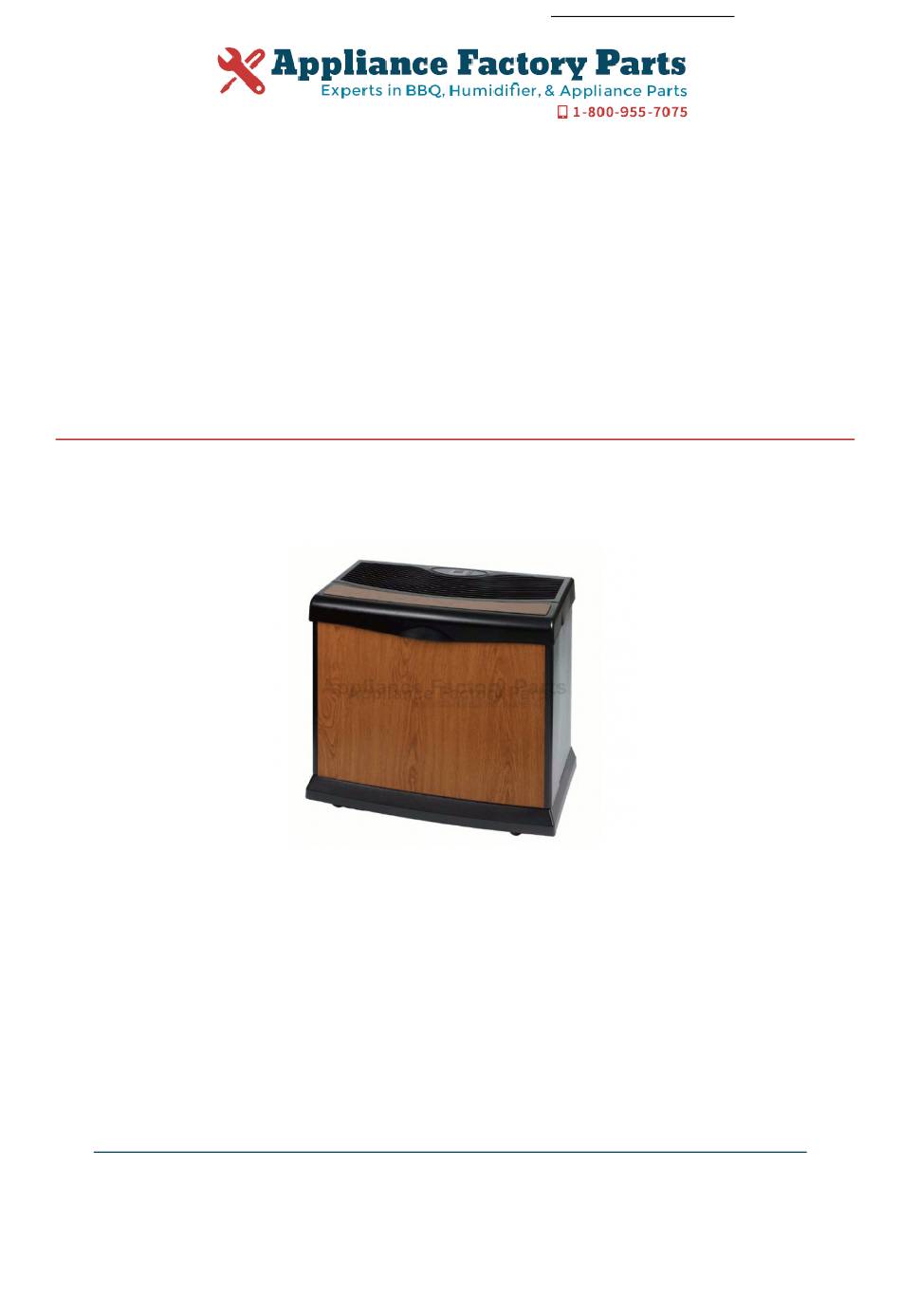

- Page 1 This Owner's Manual is provided and hosted by Appliance Factory Parts. EMERSON HD1407 Owner's Manual Shop genuine replacement parts for EMERSON HD1407 Find Your EMERSON Humidifier Parts - Select From 160 Models -------- Manual continues below --------...
- Page 2 SP6647.qxd 7/5/06 8:23 AM Page 1 CAUTION: READ ALL INSTRUCTIONS CAREFULLY BEFORE INSTALLATION. SAVE THIS OWNER’S MANUAL FOR FUTURE REFERENCE. Model No. HD14070 ® HD14070 Evaporative Console Humidifier Owner’s Manual Part No. SP6647 Printed in Canada...
-
Page 3: General Safety Instructions
SP6647.qxd 7/5/06 8:23 AM Page 2 Limited Warranty This product is warranted against defects in workmanship and materials for one year from the date of sale except for motors, which are warranted for two years. This warranty does not apply to damage from accident, misuse, alteration, unauthorized repairs, unauthorized use, mishandling, unreasonable use, abuse, including failure to perform reasonable maintenance, normal wear and tear, nor where the connected voltage is more than 5% above the nameplate voltage, nor to the... -
Page 4: Know Your Humidifier
SP6647.qxd 7/5/06 8:23 AM Page 3 Know Your Humidifier Fan Assembly Controls Bottles Filter Housing Filters: Replacement Pivoting Lid Filter HDC12 Humidistat Casters (On Power Cord) Pivoting Lid Removed For Clarity Description HD14070 Output/24 hrs 14 Gallons/53 Litres Capacity of Bottle 2-3/8 Gallons/9 Litres Sq. -
Page 5: How Your Humidifier Works
SP6647.qxd 7/5/06 8:23 AM Page 4 How Your Humidifier Works Your new MoistAIR humidifier is designed Humidified Air is Then to satisfy home humidity requirements Released Through the Top through the principle of evaporation of Dry Air water into the air. Enters After water is added to the bottle, the Through... -
Page 6: Location Instructions
SP6647.qxd 7/5/06 8:23 AM Page 5 Location Instructions next to an inside wall. Hot air registers WARNING: For your own safety, do and cold air from outside walls can affect not use humidifier if any parts are the efficiencies of the controls. Unit damaged or missing. -
Page 7: Electrical Hook-Up
SP6647.qxd 7/5/06 8:23 AM Page 6 Electrical Hook-Up If the plug does not fit fully in the outlet, Locate nearest 120V A.C. wall socket in reverse plug. If it still does not fit, contact the location desired, preferably on inside a qualified electrician to install the proper wall. - Page 8 SP6647.qxd 7/5/06 8:23 AM Page 7 Water Fill (continued) Each water bottle is designed with a Turn Counterclockwise “Side-Fill Cap” that is easily removable. to Remove Cap Remove the “Side-Fill Cap” on the side of the water bottle by twisting counterclockwise.
-
Page 9: Operating The Controls
SP6647.qxd 7/5/06 8:23 AM Page 8 Operating the Controls Function Buttons Where you set your desired humidity levels depends on your personal comfort level, outside temperature and inside temperature. A starting set point of 30% - 40% ROOM humidity is recommended but there may be conditions that require a different setting. -
Page 10: Using Your Humidifier
SP6647.qxd 7/5/06 8:23 AM Page 9 Operating the Controls (continued) The SET readout has a range of 25% to Humidity Button 65% and is adjusted in increments of 5%. Initially depressing the humidity button will display the current humidity setting. Each additional press of the button increases the setting by 5%. - Page 11 SP6647.qxd 7/5/06 8:23 AM Page 10 Using Your Humidifier (continued) Check Filter Indicator Humidistat The humidistat located on the power cord The ability of any humidifier to efficiently senses the percentage of humidity in the supply humidity output relies heavily on the air.
-
Page 12: Replacement And Care Of Filters
SP6647.qxd 7/5/06 8:23 AM Page 11 Replacement and Care of Filters WARNING: To reduce the risk of Pivoting Lid shock or injury from moving parts, Fan Assembly always unplug humidifier before removing or replacing any parts. CAUTION: To help retard bacteria Humidifier Cabinet growth and keep maximum efficiency,... -
Page 13: Cleaning And Maintenance
SP6647.qxd 7/5/06 8:23 AM Page 12 Replacement and Care of Filters (cont’d.) e. Replace the filter housing in the cabinet. Cover NOTE: There is a front and back orientation. To position the filter housings correctly: • Be sure that the spring tabs of filter housings are towards front of cabinet. - Page 14 SP6647.qxd 7/5/06 8:23 AM Page 13 Cleaning and Maintenance (cont’d.) Refill humidifier bottles with fresh cool WARNING: To reduce the risk of shock, water and return them to the cabinet. always unplug humidifier before cleaning Plug the unit into a 120 volt A.C. power or servicing.
-
Page 15: Troubleshooting
SP6647.qxd 7/5/06 8:23 AM Page 14 Troubleshooting Trouble Probable Cause Remedy Digital display not illuminated. • No Power. • Check 120 volt power source. • Power button has not been • Press power button once to turn depressed. Fan not operating (digital •... -
Page 16: Repair Parts
SP6647.qxd 7/5/06 8:23 AM Page 15 Repair Parts Parts List for MoistAIR ® Humidifier Model No. HD14070... - Page 17 SP6647.qxd 7/5/06 8:23 AM Page 16 Repair Parts Parts List for MoistAIR ® Humidifier Model No. HD14070 Always order by part number - Not by key number Part No. Description 828741-2 Lid, Stationary 828855-2 Lid, Pivoting 831680-1 Control Assembly 824690 “Side-Fill Cap”...
- Page 18 8:23 AM Page 18 FOR TECHNICAL HELP, CALL (800) 654-3545 FROM USA OR (888) 744-4687 FROM CANADA (Please have complete model number) ® Emerson Tool Company For more information about MoistAIR ® humidifiers, visit our website at www.moistair.com c 2006 Emerson Part No.
