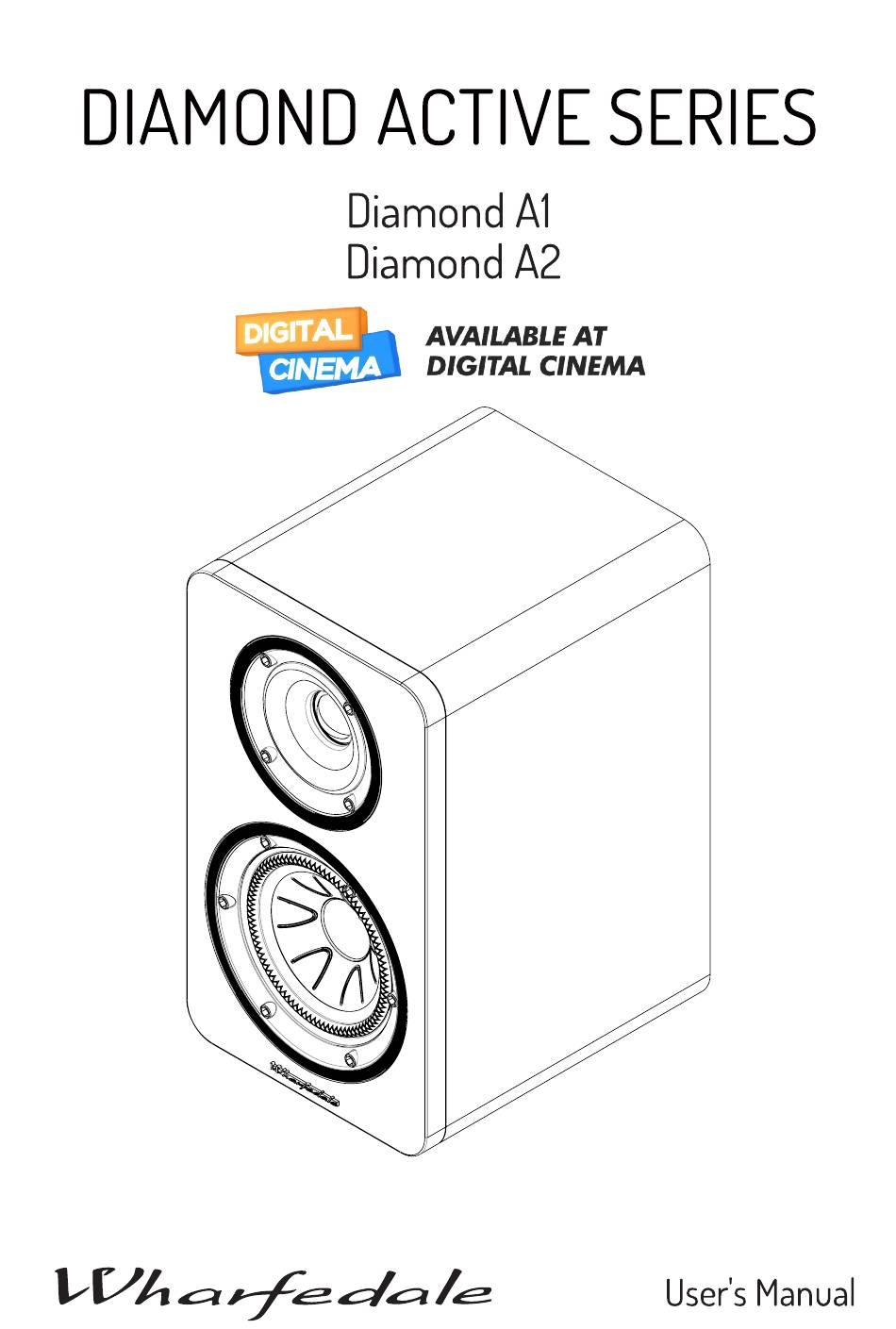

- Page 1 DIAMOND ACTIVE SERIES Diamond A1 Diamond A2 AVAILABLE aNEMA DIGITAL CINEMA vv/l User's Manual...
- Page 2 USER INSTRUCTIONS: Diamond Active Series Introduction For over 30 years, The Wharfedale Diamond Series has been the go-to speaker for entry level, high-fidelity sound. Praised for articulated performance at an affordable price, Diamond 200 series has won multiple awards, with What Hi-Fi? Sound and Vision commenting on its sound quality as "Agile, far-reaching dynamics;...
- Page 3 USER INSTRUCTIONS: Diamond Active Series Unpacking& Setup Carefully unpack each speaker If you are unpacking the Diamond A2 speaker, please remember that these units are heavy We suggest that you have someone to assist you Lift the loudspeaker carefully out of the packing. DO NOT try and lift the loudspeaker using the protective Remember to unpack the accessories...
- Page 4 USER INSTRUCTIONS: Diamond Active Series Installation:DiamondA1& DiamondA2 Speakers Theoperationof both the Diamond A1 andA2speakers isexactlythe same. Plug each Diamond Active speaker in to the mains power supply and turn on the power switch to enter start up mode. The LED will then flash green, slowly. This means the speakers have not connected to any Wharfedale HI Hub device - you will need to pair the speakers with a hub (followed...
- Page 5 USER INSTRUCTIONS: Diamond Active Series Menu: HI Hub To access additional controls over the Diamond Active system either press 'Menu' on your remote or long press the source button This will give you different options: Speakers, Balance, Brightness, Display Delay, Auto Standby, Factory Reset Firmware...
- Page 6 USER INSTRUCTIONS: Diamond Active Series RearPanel& ControlDiagrams Power Switch Power Switch N210go Bass Selector Bass Selector Power / Pairing LED Power / Pairing LED Mode Selector Mode Selector DC Input DC Input Balance On/Off Pairing Button Balance On/Off Pairing dutton update Socket Update Socket R Window...
- Page 7 USER INSTRUCTIONS: Diamond Active Series STANDBY Press to bring the unit in/out of standby Switch to optical input Switch to analogue input Increase volume Decrease volume Previ0US item Next item Confirm COAX Switch to coaxial input Switch to bluetooth input MENU Press to enter...
