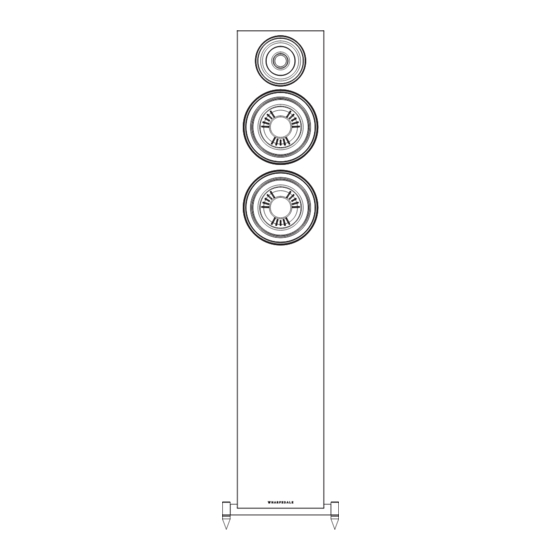

- Page 1 DIAMOND 12 Series DIAMOND 12.0 DIAMOND 12.1 DIAMOND 12.2 DIAMOND 12.3 DIAMOND 12.4 DIAMOND 12.C DIAMOND 12 3D SURROUND User Manual BRITAIN'S MOST FAMOUS LOUDSPEAKERS...
-
Page 2: Important Safety Information
Important Safety Information Before installing this product read all these instructions! This symbol indicates that there are important operating and maintenance instructions in the literature accompanying this unit. Read these instructions. Keep these instructions. Heed all warnings. Follow all instructions. Before making any connections, switch all the units in your system off... -
Page 3: Cables And Connectors
Preparing the DIAMOND 12 Loudspeakers Stands and Brackets The bookshelf loudspeakers are intended primarily for stand mounting, though they can be mounted on wall brackets or even on sturdy shelves. The quality of loudspeaker stands greatly influences the performance of your loudspeakers, please do not use flimsy products. Centre Channel Loudspeakers Each centre channel loudspeaker is supplied with one set of mounting feet. -
Page 4: Positioning The Front Loudspeakers
Positioning the Front Loudspeakers The D12.3 and D12.4 models are designed to be floorstanding. We suggest that they are positioned at least 200mm from the rear walls and 700mm from the side walls, facing slightly inwards. The D12.0, D12.1 and D12.2 models should be stand or wall mounted though they may be placed on a rigid shelf. - Page 5 Connecting the Front Loudspeakers Standard Connection Choose a suitable length of twin core speaker cable for each channel, and prepare the ends. Unscrew each terminal a few turns.Connect the red, positive (+) terminal of the Left loudspeaker to the corresponding red, positive (+) amplifier terminal.
-
Page 6: Setting Up A Home Theatre System
Connecting Centre Loudspeaker The Centre channel speaker may be connected as shown, or bi-wired. Setting Up a Home Theatre System Placement Front and Effects Channels: The front loudspeakers are placed on either side of the television screen, 2 to 3 metres apart. The speakers should be angled slightly so they car aimed towards the listeners. - Page 7 3D and Heigh Channel Speaker Placement The Diamond 12 3D Surround is designed to offer elevation / height channel additions to your home theatre system in conjunction with AV receivers and processors which offer this performance capability. The Diamond 12 3D is designed for placement on top of any flat-top loudspeaker but optimised for the DIAMOND 12.3 and DIAMOND 12.4.
-
Page 8: Troubleshooting
Setting Loudspeaker Sizes and Levels If you are not using a subwoofer: Set the Front speakers to ‘Large’. Set the ‘Subwoofer’ option on the processor to ‘Off’ or ‘No’. The Front channels will now receive all the system bass. If you are using a subwoofer: When set to ‘Small’ all the system bass will go into the subwoofer. If you choose ‘Large’ the Front channel bass will be reproduced from the Front speakers. - Page 9 Looking After Your Loudspeaker Your loudspeakers use special hardwearing sealed finish. They should not be waxed or treated with spray polishes which will smear and · dim the finish. Occasionally polish them with a dry or barely moist cloth to remove dust and finger marks, etc. If you play the speakers with the grilles off...
-
Page 10: Specifications
335 x 200 x (285+28) mm Net weight 5.1kg/pcs 6.8kg/pcs 8.2kg/pcs Model DIAMOND 12.3 DIAMOND 12.4 DIAMOND 12.C DIAMOND 12 3D SURROUND General description 2.5-way floorstanding speaker 2.5-way floorstanding speaker 2-way centre speaker 2-way atmos speaker Design philosophy and core technology Enclosure type bass reflex bass reflex... - Page 12 IAG House, 13/14 Glebe Road, Huntingdon, Cambridgeshire, PE29 7DL, UK Tel: +44(0)1480 452561 Email: service@wharfedale.co.uk http://www.wharfedale.co.uk IAG reserves the right to alter the design and specifications without notice. All rights reserved IAG Group Ltd. Wharfedale is a member of the International Audio Group. CODE: WH14-MNL005a...
