Roland S-MADI Brochure

Up to 40x40 channels of digital audio transfer between REAC and MADI devices
Bridging REAC with MADI

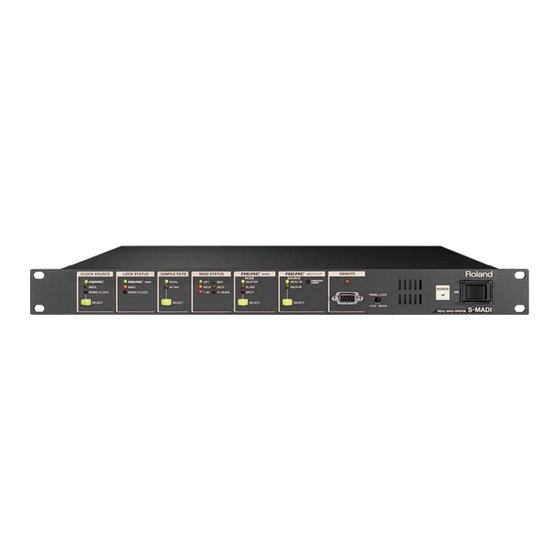

S-MADI is bi-directional format converter between REAC and MADI. Up to 40x40 channels of digital audio
transmission is possible between MADI equipment and REAC products such as the Digital Snake series,
V-Mixers, and M-48 Live Personal Mixers. Both BNC and Optical I/O ports are included along with support for
56/64Ch mode. Clock source can be selected from REAC, MADI or Word Clock.
REAC SPLIT OUT
The REAC SPLIT OUT port provides audio signal from REAC or MADI enabling a separate monitoring or
recording audio signal from the main stream. The SPLIT OUT supports REAC Embedded Power which supplies
both the audio stream as well as power to a M-48 Live Personal Mixer or S-0808 Digital Snake.
Remote Control
A connected Digital Snake can be controlled using the S-4000R Remote Controller. Using the S-4000RCS
dedicated software also enables control of Digital Snake and M-48 Personal Mixing setup and monitoring
parameters.
Expand audio system possibilities
with REAC and MADI
Bi-directional format conversion between REAC and MADI
BNC and Optical MADI ports
REAC SPLIT OUT for connecting to additional devices
