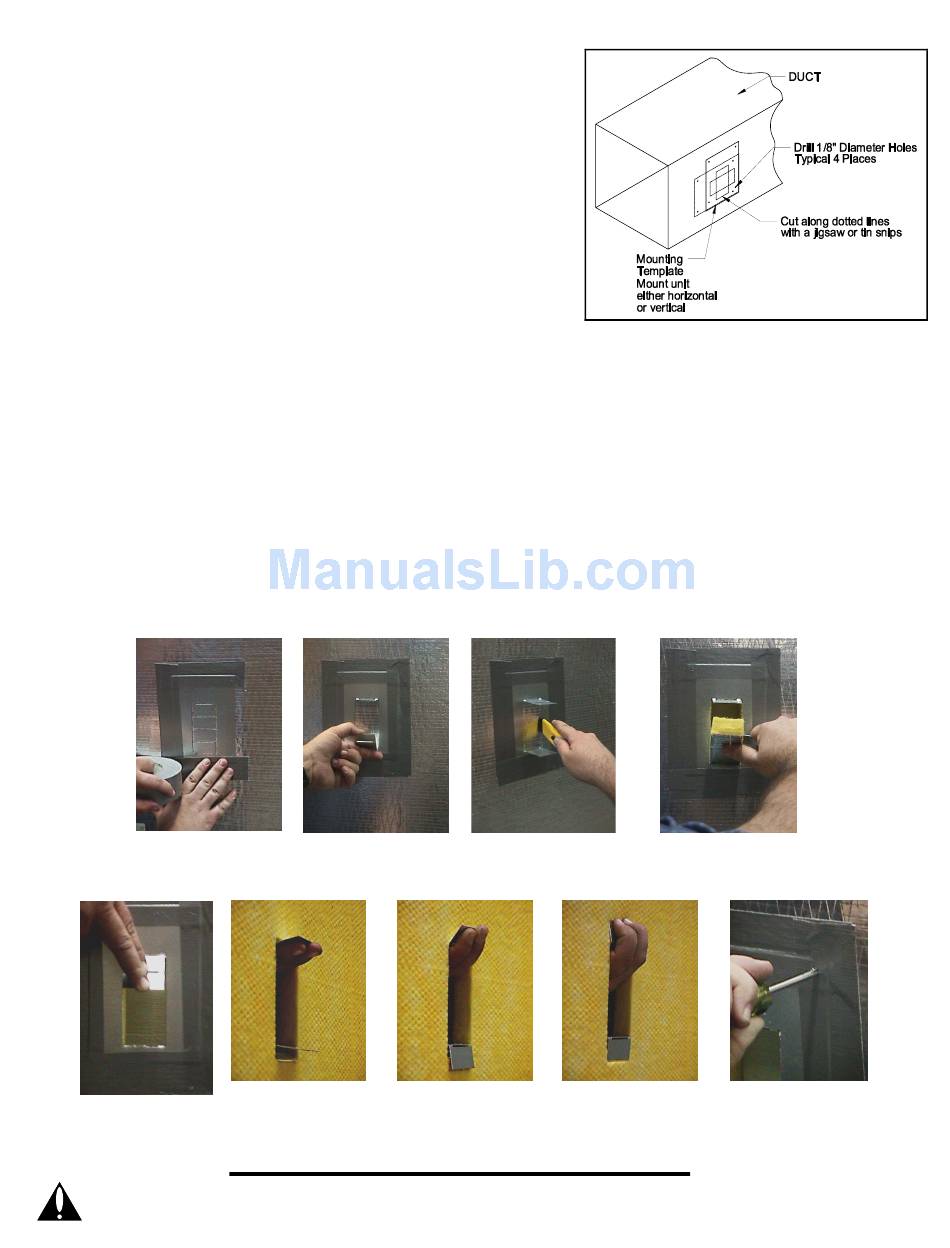

2. Determine the type of duct you have.
(For flex duct applications, refer to Figure 21 on page 8)
I
F YOU HAVE METAL DUCT
a. Apply supplied wet and stick mounting template to air duct in
either a vertical or horizontal position as shown in Figure 2.
b. Drill 1/8" diameter mounting holes at positions indicated on
template.
c. Cut out the marked openings on template using a hole saw
or a pair of tin snips or jigsaw. (See Figure 2)
d. Remove paper template from duct.
I
F YOU HAVE DUCT BOARD
a. Mount the supplied metal mounting plate onto the duct with
duct tape in either a vertical or horizontal position as shown
in Figure 2. (See Figure 3)
b. Bend tabs outward as shown in figure 4.
c. Using a knife or blade, cut out a rectangle opening in the duct using the mounting plate as a template. (See
Figure 5)
d. Remove the cut piece of duct. (See Figure 6)
e. Bend both tabs down and through duct at first bend point. (See Figures 7 & 8)
f. Bend both tabs at the second bend point up or down to pinch the duct material and grip the duct material.
(See Figures 9 & 10
g. Using a screwdriver or pointed object, locate mounting holes by poking holes through the duct tape. (See
Figure 11)
Figure 3
Figure 7
WARNING: Never expose eyes or skin to UVC light from any source. Looking directly at the UVC light may cause permanent eye damage or
blindness. Never operate the UV-Aire™ Air Purifying System out of the plenum. Avoid touching the glass portion of the lamp with your
hands.
:
:
Figure 4
Figure 8
Figure 5
Figure 9
Page 3
Figure 6
Figure 10 Figure 11
Figure 2
