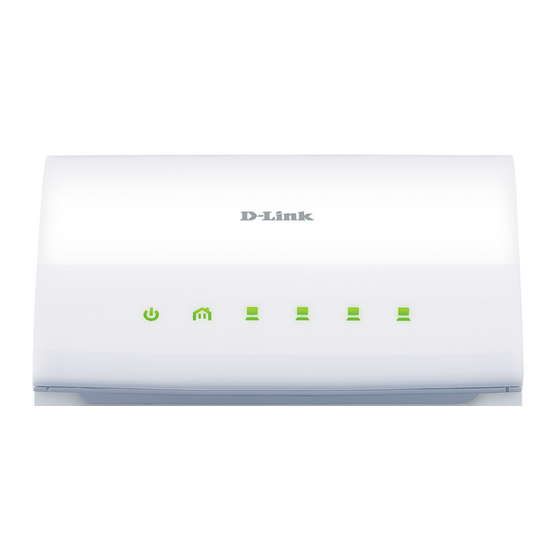

D-Link DHP-346AV User Manual

Powerline av 4-port switch

Advertisement

Advertisement

Table of Contents
loading

Summary of Contents for D-Link DHP-346AV

  • Page 2: Table Of Contents

    LEDs ......................5 Connection ....................6 Hardware Installation ............... 7 Push Button Security ................. 8 Using the Setup Wizard ..............10 Configuration....................11 Security ......................13 Troubleshooting ................15 Technical Specifications ..............16 Contacting Technical Support ............17 Warranty ...................18 Registration ..................23 D-Link DHP-346AV User Manual...
  • Page 3: Product Overview

    Section 1 - Product Overview Product Overview Package Contents One D-Link DHP-346AV PowerLine AV 4-Port Switch One CAT5 Ethernet Cable CD-ROM with Software and User Manual Power Cord Quick Install Guide System Requirements • Windows® 7, Windows Vista , XP (with Service Pack 3) ®...
  • Page 4: Introduction

    Interference from devices that emit electrical noise, such as vacuum cleaners and hair dryers, may adversely affect the performance of this product. This product may interfere with devices such as lighting systems that have a dimmer switch, short wave radios, or other PowerLine devices that do not follow the HomePlug AV standard. D-Link DHP-346AV User Manual...
  • Page 5: Hardware Overview

    • Red - The PowerLine link rate is less than 50 Mbps. • Solid - The Ethernet port is linked but there is no data traffic. LAN LEDs (1-4) • Blinking - The device is transmitting data. • Off - There is no Ethernet connection. D-Link DHP-346AV User Manual...
  • Page 6: Connection

    Security Button Press to secure your network. Refer to page 8 for more information. Reset Button Press and hold the button for 1 second to reset to factory default. Power Receptor Receptor for the supplied power cord D-Link DHP-346AV User Manual...
  • Page 7 Has a high priority. You can connect devices such as game consoles to this port. Has the highest priority and gives uninterrupted service to the connected devices such as media Light Green players or Internet TV. D-Link DHP-346AV User Manual...
  • Page 8: Hardware Installation

    Note: Network Connectivity is confirmed when the PowerLine and Ethernet LED indicators on the PowerLine AV 4-Port Switch are illuminated. Network Diagram Wireless Router Cable/ DSL Modem RESET INTERNET - - - INTERNET (Existing Powerline Network) Game Console NAS Storage Blu-ray DVD Player DHP-346AV D-Link DHP-346AV User Manual...
  • Page 9: Push Button Security

    The 4-Port Switch will memorize the security settings even if they are unplugged. Note: To change the private encryption key, please reset the adapter back to its default value by pressing the Reset button for 2 seconds and then follow the security setup procedure above. D-Link DHP-346AV User Manual...
  • Page 10: Using The Setup Wizard

    Using the Setup Wizard Follow the simple steps below to run the Setup Wizard to guide you quickly through the installation process. Insert the D-Link DHP-346AV CD into your CD-ROM drive. If the CD Autorun function does not automatically start on your computer, click Start > Run. In the Run command box type “D:\autorun.exe”, where D: represents the drive letter of your CD-ROM.
  • Page 11: Configuration

    Section 3 - Configuration Configuration After you have completed the D-Link PowerLine AV Utility installation wizard, double-click the D-Link PowerLine AV Utility icon on your desktop to start the configuration of the DHP-346AV. Double-click the D-Link PowerLine AV Utility icon The D-Link PowerLine AV Utility provides you the option of setting your own PowerLine network and the network information of connected PowerLine devices.
  • Page 12 Link Rate: Shows the link rate of the connected to the PowerLine device. MAC Address: Shows the MAC address of the connected PowerLine device. Firmware Shows the firmware version of the connected PowerLine Version: device. D-Link DHP-346AV User Manual...
  • Page 13: Security

    3. Select the PowerLine devices that you would like to apply the encryption key setting. Then, type your private encryption key into the Encryption Key Setting field and click Set Selected Devices. The utility will show a message once the setting has been completed. D-Link DHP-346AV User Manual...
  • Page 14 Then follow the 1 to 4 steps of “Setting your private Encryption Key”. Your PowerLine network will be securely configured with a customized encryption key and all devices will be able to communicate with each other after your setting. D-Link DHP-346AV User Manual...
  • Page 15: Troubleshooting

    • I’m having a lot of problems configuring my network: If you are having problems configuring your network with two or more PowerLine devices, please reset all of the PowerLine devices and start configuring the adapters again. D-Link DHP-346AV User Manual...
  • Page 16: Technical Specifications

    • Operation: 10% ~ 90% RH Safety • Storage: 5% ~ 95% RH • UL, CE LVD Power Consumption Compliance • EuP (Energy Using Product Directive) • CoC (Code of Conduct on Energy Consumption of Broadband Equipment) D-Link DHP-346AV User Manual...
  • Page 17: Contacting Technical Support

    • Serial Number (s/n number located on the label on the bottom of the product). You can find software updates and user documentation on the D-Link website as well as frequently asked questions and answers to technical issues. For customers within the United States:...
  • Page 18: Warranty

    Warranty Period or ninety (90) days, whichever is longer, and is subject to the same limitations and exclusions. If a material defect is incapable of correction, or if D-Link determines that it is not practical to repair or replace the defective Hardware, the actual price paid by the original purchaser for the defective Hardware will be refunded by D-Link upon return to D-Link of the defective Hardware.
  • Page 19 Software or to refund the portion of the actual purchase price paid that is attributable to the Software. Except as otherwise agreed by D-Link in writing, the replacement Software is provided only to the original licensee, and is subject to the terms and conditions of the license granted by D-Link for the Software.
  • Page 20 D-Link Systems, Inc., 17595 Mt. Herrmann, Fountain Valley, CA 92708. D-Link will not be held responsible for any packages that are lost in transit to D-Link. The repaired or replaced packages will be shipped to the customer via UPS Ground or any common carrier selected by D-Link.
  • Page 21 FOR WARRANTY SERVICE) RESULTING FROM THE USE OF THE PRODUCT, RELATING TO WARRANTY SERVICE, OR ARISING OUT OF ANY BREACH OF THIS LIMITED WARRANTY, EVEN IF D-LINK HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. THE SOLE REMEDY FOR A BREACH OF THE FOREGOING LIMITED WARRANTY IS REPAIR, REPLACEMENT OR REFUND OF THE DEFECTIVE OR NONCONFORMING PRODUCT.
  • Page 22 • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. For detailed warranty information applicable to products purchased outside the United States, please contact the corresponding local D-Link office.
  • Page 23: Registration

    Appendix F - Registration Registration Product registration is entirely voluntary and failure to complete or return this form will not diminish your warranty rights. Version 1.0 November 3, 2010 D-Link DHP-346AV User Manual...
