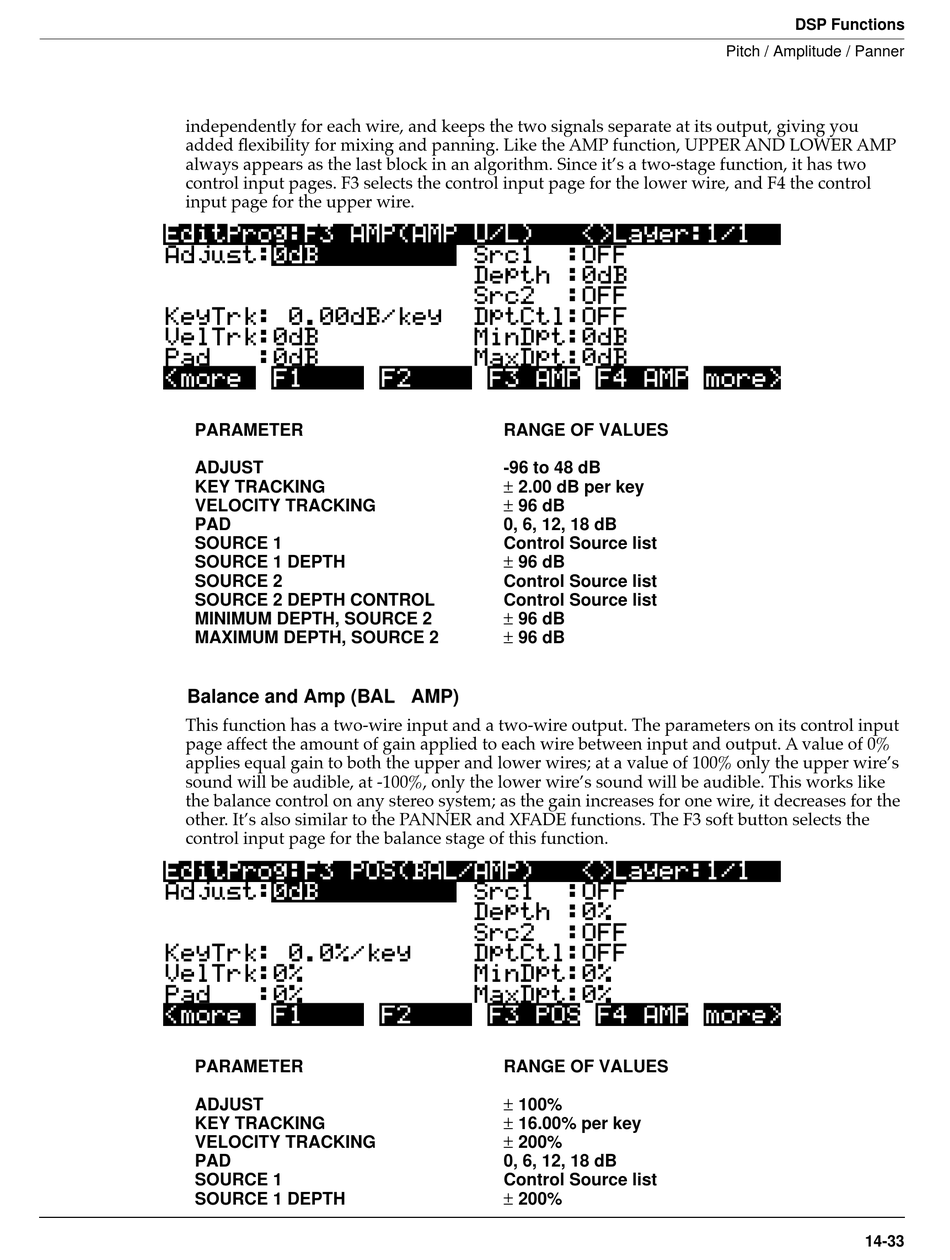

Kurzweil K2500 - PERFORMANCE GUIDE REV F PART NUMBER 910251 CHAP 14 Function Manual page 33

independently for each wire, and keeps the two signals separate at its output, giving you
added flexibility for mixing and panning. Like the AMP function, UPPER AND LOWER AMP
always appears as the last block in an algorithm. Since it's a two-stage function, it has two
control input pages. F3 selects the control input page for the lower wire, and F4 the control
input page for the upper wire.
EditProg:F3|AMP(AMP|U/L)|||<>Layer:1/1||
Adjust:0dB||||||||||Src1||:OFF||||||||||
||||||||||||||||||||Depth|:0dB||||||||||
||||||||||||||||||||Src2||:OFF||||||||||
KeyTrk:|0.00dB/key||DptCtl:OFF||||||||||
VelTrk:0dB||||||||||MinDpt:0dB||||||||||
Pad|||:0dB||||||||||MaxDpt:0dB||||||||||
<more||F1|||||F2|||||F3|AMP|F4|AMP|more>
PARAMETER
ADJUST
KEY TRACKING
VELOCITY TRACKING
PAD
SOURCE 1
SOURCE 1 DEPTH
SOURCE 2
SOURCE 2 DEPTH CONTROL
MINIMUM DEPTH, SOURCE 2
MAXIMUM DEPTH, SOURCE 2
Balance and Amp (BAL AMP)
This function has a two-wire input and a two-wire output. The parameters on its control input
page affect the amount of gain applied to each wire between input and output. A value of 0%
applies equal gain to both the upper and lower wires; at a value of 100% only the upper wire's
sound will be audible, at -100%, only the lower wire's sound will be audible. This works like
the balance control on any stereo system; as the gain increases for one wire, it decreases for the
other. It's also similar to the PANNER and XFADE functions. The F3 soft button selects the
control input page for the balance stage of this function.
EditProg:F3|POS(BAL/AMP)|||<>Layer:1/1||
Adjust:0dB||||||||||Src1||:OFF||||||||||
||||||||||||||||||||Depth|:0%|||||||||||
||||||||||||||||||||Src2||:OFF||||||||||
KeyTrk:|0.0%/key||||DptCtl:OFF||||||||||
VelTrk:0%|||||||||||MinDpt:0%|||||||||||
Pad|||:0%|||||||||||MaxDpt:0%|||||||||||
<more||F1|||||F2|||||F3|POS|F4|AMP|more>
PARAMETER
ADJUST
KEY TRACKING
VELOCITY TRACKING
PAD
SOURCE 1
SOURCE 1 DEPTH
RANGE OF VALUES
-96 to 48 dB
2.00 dB per key
96 dB
0, 6, 12, 18 dB
Control Source list
96 dB
Control Source list
Control Source list
96 dB
96 dB
RANGE OF VALUES
100%
16.00% per key
200%
0, 6, 12, 18 dB
Control Source list
200%
