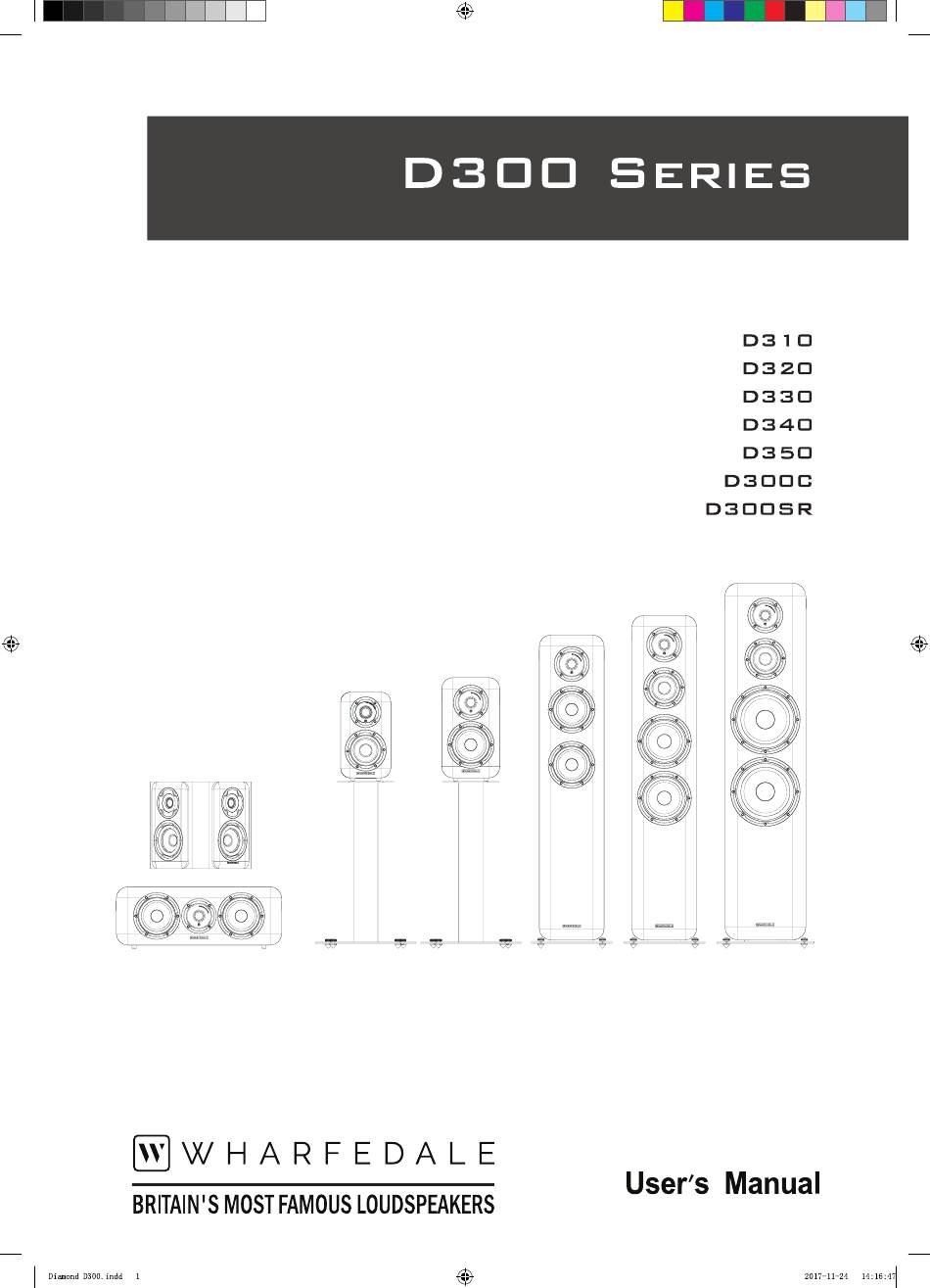

- Page 1 0300 SERIES 0310 0320 0330 0340 D350 D300C D300SR HARFEDALE User's Manual BRITAINIS MOST FAMOUS LOUDSPEAKERS Diamond D300. indd 2017...
- Page 2 Important Safety Information Before installing this product read all these instructions! This symbol indicates that there are important operating and maintenance instructions in the literature accompanying this unit. Read these instructions. Keep these instructions. Heed all warnings. Follow all instructions. Before making any connections, switch all the units in your system off at the mains.
- Page 3 Preparing the D300 Loudspeakers Stands and Brackets The bookshelf loudspeakers are intended primarily for stand mounting, though they can be mounted on wall brackets or even on sturdy shelves. The quality of loudspeaker stands greatly influences the performance of your loudspeakers, please do not use flimsy products. Centre Channel Loudspeakers Each of the Centre speakers is fixed with a set of rubber feet.The port tube and rubber feet of the Centre speaker are all at the bottom,Non blocking lead port tube when adjusting.lt is especially useful that the smoothness of the port tube is directly affected by the sound effect of the centre channel.
- Page 4 Positioning the Front Loudspeakers The D330, D340 and D350 models are designed to be floor standing. We suggest that they are positioned at least from the rear walls and 700mm from the side walls, facing slightly inwards. The D310 and D320 models should be stand or wall mounted though they may be placed on a rigid shelf.
- Page 5 Connecting the Front Loudspeakers Standard Connection AMPLIFIER Choose a suitable length of twin core speaker cable for each R.SPKR L.SPKR channel, and prepare the ends. Unscrew each terminal a few turns. Connect the red, positive (+) terminal of the Left loudspeaker to the corresponding red, positive (+) amplifier terminal.
- Page 6 Connecting Centre Loudspeaker The Centre channel speaker may be connected as shown, or bi-wired. RIGHT LEFT WOOFER REAR CENTRE FRONT RIGHT LEFT Setting Up a Home Theatre System Placement Front and Effects Channels: The front loudspeakers are placed on either side of the television screen, 2 to 3 metres apart. The speakers should be angled slightly so they car aimed towards the listeners.
- Page 7 Setting Loudspeaker Sizes and Levels If you are not using a subwoofer: Set the Front speakers to 'Large'. Set the 'Subwoofer' option on the processor to 'Off' or 'No'. The Front channels will now receive all the system bass. If you are using a subwoofer: When set to 'Small' all the system bass will go into the subwoofer. If you choose 'Large' the Front channel bass will be reproduced from the Front speakers.
- Page 8 Looking After Your Loudspeaker Your loudspeakers use special hardwearing sealed finish. They should not be waxed or treated with spray polishes which will smear and dim the finish. Occasionally polish them with a dry or barely moist cloth to remove dust and finger marks, etc. If you play the speakers with the grilles off exercise great care.
- Page 9 Specifications Model D310 D320 General description 2-way bookshelf speaker 2-way bookshelf speaker Designphilosophy and coreteånology Enclosuretype bass reflex bass reflex Transducer complement 2-way 2-way 5"(130mm) Black Woven Kevlar Cone Bass driver Black Woven Kevlar Cone Midrange driver Treble driver 1"(25mm) Soft Dome 1"(25mm) Soft Dome Full-range driver AV shield...
- Page 10 Specifications 1)330 D340 Model D 350 2.5-w•ayfloorstandmg speaker 3-way floorstandingspeaker General descrip tion 3-way floorstanding speaker Designphilosophy and coretechnology bass reflex bass reflex Enclosure type bass reflex Transducer complement 2.5-w•ay 3_vvay 3_way Bass driver 5"(130mm) Black Woven Kevlar Cone Black Woven Kevlar Conex2...
- Page 11 Specifications Model D300C D300SR General description 2-way centre speaker 2-way surround speaker Design philosophy and core technology Enclosuretype bass reflex closed-box system Transducercomplement 2-way 2-way Bass driver 5"(130mm) Black Woven Kevlar Cone x 2 5"(130mm) Black Woven Kevlar Cone x2 Midrange driver Treble driver I "(25mm) Soft Dome...
- Page 12 IAG House, 13/14 Glebe Road, Huntingdon, Cambridgeshire, PE29 7DL, I-JK H AR FED ALE Tel: 452561 Fax: 480 413403 http://www wharfedale co uk AG reserves the right to alter the design and specifications without notice. All rights reserved O IAG Group Ltd Wharfedale is a member of the International Audio Group.
