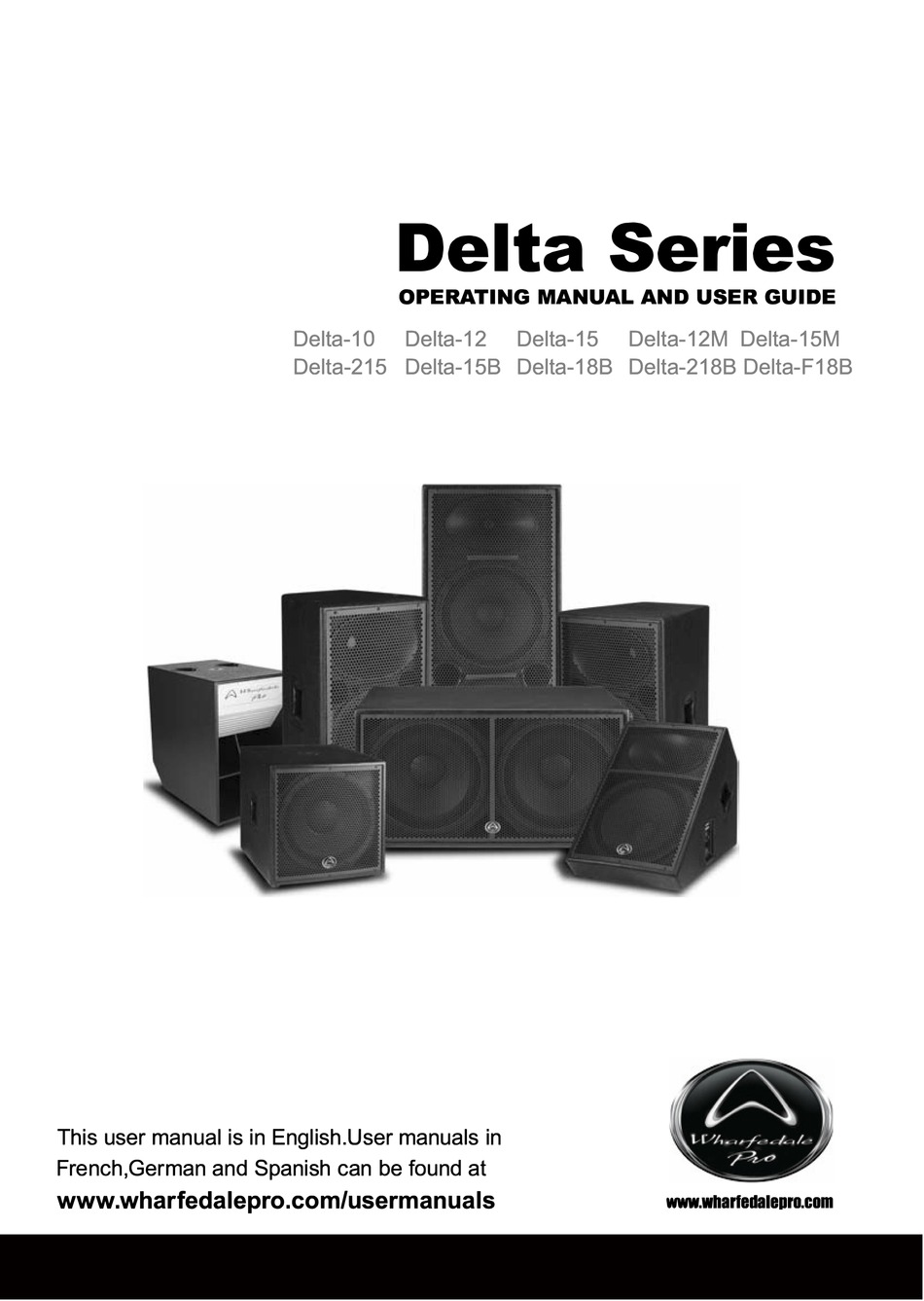

- Page 1 Delta Series OPERATING MANUAL AND USER GUIDE Delta-10 Delta-12 Delta-15 Delta-12M Delta-15M Delta-215 Delta-158 Delta-188 Delta-2188 Delta-F 188 This user manual is in English.User manuals in French.German and Spanish can be found at www.wharfedalepro.com/usermanuals www.wharfedalepro.com...
- Page 2 OPERATING MANUAL AND USER GUIDE IMPORTANT WARNINGS SAFETY INSTRUCTIONS & 1. READ ALL INSTRUCTIONS - carefully and become familiar with the features and functions of these products before operating them. 2. RETAIN THESE INSTRUCTIONS - for future reference. 3. COMPLY WITH ALL WARNINGS - All warnings and instructions for this product should be adhered to.
-
Page 3: Table Of Contents
Delta 10/12/12M/15/15M/215 Bi-Amp Wiring ............. 6 Delta 10/12/12M/15/15M/215 Full range Wiring ..........7 Delta 15B/18B Fullrange Wiring ................. 8 Delta 15B/18B Bi-Amp Wiring ................9 Delta Series Suggested Network Settings ............10 Rigging/Suspending ..................11 Block/Wiring Diagrams ..................12 Dimensonal Drawings ..................19 Specifications .................... - Page 4 We take great pride in engineering and building every Wharfedale Pro loudspeaker and would like to thank you for entrusting us with your sound. The new Delta Series Series builds on the solid reputation of its predecessors the LX and DLX Series, both huge successes on a global scale.
- Page 5 Delta Series MODELS Delta 10 - Passive Loudspeaker ♦ Delta 12 - Passive Loudspeaker ♦ Delta 12M - Passive Stage Monitor ♦ Delta 15 - Passive Loudspeaker ♦ Delta 15M - Passive Stage Monitor ♦ Delta 215 - Passive Loudspeaker ♦...
- Page 6 • Bi-amp switching - ensure that the internal passive network selector is in the correct position. When using an external active network select the bi-amp setting. Failiure to do his can result in damage to the drivers of your Delta Series loudspeakers.
-
Page 7: Delta 10/12/12M/15/15M/215 Bi-Amp Wiring
Delta Series DELTA 10/12/12M/15/15M/215 Bl-AMP WIRING... -
Page 8: Delta 10/12/12M/15/15M/215 Fullrange Wiring
OPERATING MANUAL AND USER GUIDE DELTA 10/12/12M/15/15M/215 FULLRANGE WIRING ----7... -
Page 9: Delta 15B/18B Fullrange Wiring
Delta Series DELTA 15B/18B FULLRANGE WIRING... -
Page 10: Delta 15B/18B Bi-Amp Wiring
OPERATING MANUAL AND USER GUIDE DELTA 15B/18B Bl-AMP WIRING... -
Page 11: Delta Series Suggested Network Settings
Delta Series DELTA SERIES SUGGESTED NETWORK SETTINGS 10---... - Page 12 OPERATING MANUAL AND USER GUIDE ----11...
-
Page 13: Rigging/Suspending
Delta Series RIGGING/SUSPENDING Using Shoulder Eyebolts Always apply the load to the bolt along the plane of the eye. For long term installation use a thread-locking compound. Do not attempt to bend or otherwise deform any rigging hardware. Please refer to the important safety warnings before you consider suspending any loudspeakers. -
Page 14: Block/Wiring Diagrams
OPERATING MANUAL AND USER GUIDE BLOCK/WIRING DIAGRAMS DELTA-10 Crossover Block Diagram DELTA-12 Crossover Block Diagram... - Page 15 Delta Series DELTA-15 Crossover Block Diagram DELTA-12M Crossover Block Diagram -----...
- Page 16 OPERATING MANUAL AND USER GUIDE DELTA-15M Crossover Block Diagram DELTA-215 Crossover Block Diagram...
- Page 17 Delta Series DELTA-158 Crossover Block Diagram -----...
- Page 18 OPERATING MANUAL AND USER GUIDE DELTA-18B Crossover Block Diagram DELTA-F18B Folded Horn Subwoofer Crossover Block Diagram ----...
- Page 19 Delta Series DELTA-218B Crossover Block Diagram ----...
-
Page 20: Dimensonal Drawings
OPERATING MANUAL AND USER GUIDE DIMENSIONAL DRAWINGS DELTA-10 DELTA-12 DELTA-15 ----... - Page 21 Delta Series DELTA-12M DELTA-15M ----...
- Page 22 OPERATING MANUAL AND USER GUIDE DELTA-215 DELTA-15B...
- Page 23 Delta Series DELTA-18B DELTA-F18B ----...
- Page 24 OPERATING MANUAL AND USER GUIDE DELTA-218B ----...
-
Page 25: Specifications
Delta Series SPECIFICATIONS Model DELTA-10 DELTA-12 DELTA-15 General Parameters System Type 2-Way 2-Way 2-Way Frequency Response +/- 3dB 65-20KHz 60-20KHz 50-20KHz Power Handling Continuous 300W 400W 500W Programme 600W 800W 1000W Peak 1200W 1600W 2000W Nominal Impedance Ohms Sensitivit:t dB (1W@1M) - Page 26 OPERATING MANUAL AND USER GUIDE Model DELTA-15M DELTA-215 DELTA-12M General Parameters System Type 2-Way Quasi 3-Way 2-Way Frequency Response +/- 3dB 55-20KHz 45-20KHz 60-20KHz Power Handling Continuous 500W 1000W 400W Programme 2000W 800W 1000W Peak 2000W 4000W 1600W Nominal Impedance Ohms Sensitivity dB SPL (1W@ 1M)
- Page 27 Delta Series Model DELTA-15B DELTA-18B DELTA-F18B DELTA-218B General Parameters System Type Subwoofe Folded Horn Subwoofer Dual Chamber Subwoofer Subwoofer Frequency Response (Bi-Amp) +/- 3dB 42-2KHz 38-1.5KHz 30-1.5KHz Frequency Response (Passive) +/- 3dB 42-150Hz 38-150Hz 30-300Hz Power Handling Continuous 700W 800W...
-
Page 28: Warranty
WHARFEDALE PRO LIMITED WARRANTY Wharfedale Pro products are warranted of manufacturing or material defects for a period of one year from the original date of purchase. In the event of malfunction, contact your authorized Wharfedale Pro dealer or distributor for information.
