Summary of Contents for Digimate DGL3704M

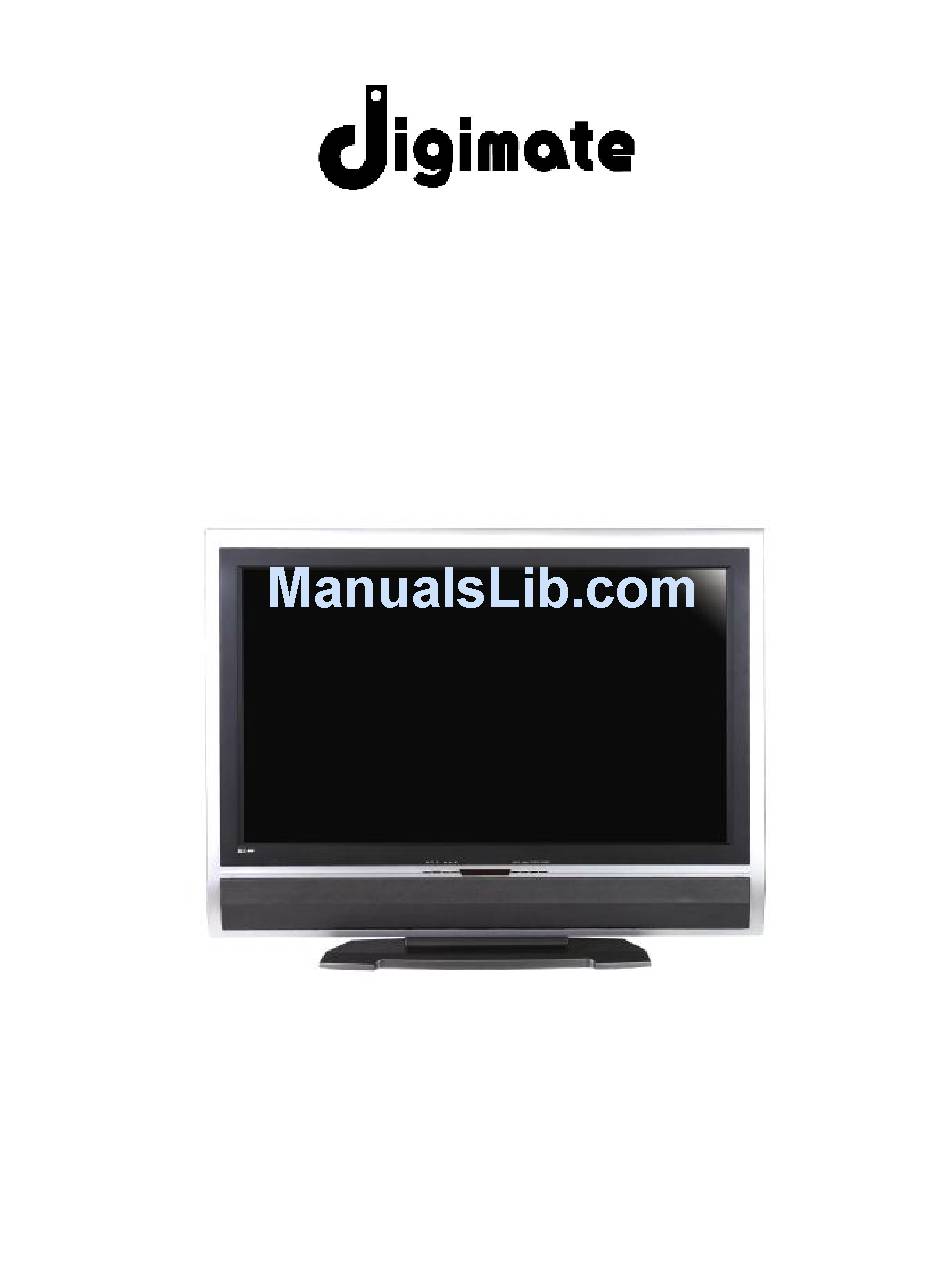

- Page 1 37” HD Ready LCD TV DGL3704M User’s Manual...
- Page 2 TO PREVENT POSSIBLE DANGER, ELECTRIC SHOCK, AND OTHER INJURIES WHEN HANDLING YOUR DISPLAY, PLEASE BE AWARE ALL WARNINGS AND SAFETY PRECAUTIONS CONTAINED AS BELOW. Never Insert anything into DISPLAY!! Do not insert anything through the openings in the unit, where they can touch dangerous voltage points or damage parts.
-
Page 3: Fcc Compliance Statement
CONFORMITY AND COMPLIANCE FCC Compliance Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a residential installation. -
Page 4: Table Of Contents
Introduction Thank you for purchasing the DGL3704 display set. This Flat-Screen LCD can be used either as a Television or as a computer monitor. With its multiple input options, you can connect almost any device (e.g. VCR, DVD players and game consoles) to this display. You can also connect your display to a stereo system with a subwoofer to experience the ultimate in home entertainment. -
Page 5: Getting Started
˙ Supporting resolution of WXGA mode (1920x1080 pixels) ˙ Wide viewing angle ˙ Digital Character Smoothing ˙ Analog TV tuner ˙ Windows 95/98/2000/XP Plug & Play Compliant ˙ Versatile, functional & User friendly OSD ˙ Plug & Play: Conform to the VESA standards and support DDC 2B spec. Unpacking and Checking of the Package Contents Before unpacking your LCD Display, prepare a stable, level, and clean surface near a wall outlet for your LCD Display. -
Page 6: Operating The Monitor
Front View Operating the monitor Top Panel Buttons： ① POWER：Press to turn the Display On/Off. (Main Power Switch must be On) NOTE: The Main Power Switch is located on lower back panel. ② SOURCE：Press to display and cycle the available input sources. ③... -
Page 7: Rear Panel Jacks
Rear View Rear Panel Jacks Side view Video Component1 Input terminal accepts video signal from a Component Video Source Y1Cb1Cr1 (INTERLACED only) Y1Cb1Cr1 Audio L&R Audio input corresponding with Video Component1 Video Component2 Input terminal accepts video signal from a Component Video Source Y2Pb2Pr2 (PROGRESSIVE SCAN or INTERLACED) Y2Pb2Pr2 Audio... -
Page 8: Remote Control
TV Function POWER Power On/Off (Standby) after turning On the Main Power Switch. Switch source to TV mode. Cycle through input sources: SOURCE COMPONENT 1 COMPONENT 2 Also used for selecting the main source during PIP / PBP mode. DISPLAY Displays the current information. -
Page 9: Installation
Step 1. Positioning the display set Place your Display set on a solid stable surface. To avoid danger do not expose the display to water, or a heat source. Do not obstruct the ventilation grid at rear. Step 2. Connecting the aerials 1. -
Page 10: Quick Installation
If TV is connected to an antenna, you’ll need to set a few important items in the menu system the first time you turn on your display. Auto scan: This part of the setup allows the TV tuner to search for all channels viewable though your antenna or cable TV system (when there is no cable box connected). -
Page 11: Operation - Tv
Power On/Off Press the “POWER” key to turn ON the Display. The power indicator changes from red to green. When the power is OFF (standby), the power indicator changes from green to red. Source select Press “SOURCE” to select the input signal. Each time the source button is pressed, the on-screen display will cycle between: Component2 (Y2Pb2Pr2) TV Button... -
Page 12: Osd Menu Setting
To access MENU, navigate and make adjustments using; MENU、 CH、 CH、 VOL、 VOL and ENTER. Pressing “MENU” displays the OSD menu. Use controller to scroll the options on the menu. Press “ENTER” button to enter sub menu. Use / to adjust settings. Press “ENTER”... -
Page 13: Tv/Pc Parameters
TV Parameters Press “MENU” and make sure the “TV Parameters” is shown on the screen. PC parameters Set Image: Adjusting the TV setting: Brightness: Alters the brightness of the image. Contrast: Alters the ratio of light to darkness. Sharpness: Adjusts the sharpness of the color. Saturation: Alters the color saturation. -
Page 14: Audio Settings
Press “MENU” and make sure the “AUDIO SETTINGS” is displayed on the screen. In TV, Video, and PC modes MTS (For TV mode only): Adjusting the audio setting: Volume: This will adjust the level of volume. Mute: Mutes the sound Bass: This will adjust the level of low frequency content in the sound. -
Page 15: Picture-In-Picture
PIP function: The PIP function allows you to watch two screens on the display from two different sources at the same time. For example; you can watch a TV channel and a component video source at the same time. See PIP structure chart below. Press: To start the PIP function. -
Page 16: General Settings
Press “MENU” and press In TV, Video, and PC modes Sleep Timer: With sleep timer you can set a time period after which the TV automatically switches to standby. The counter can be set from 120 Min to OFF as follows; to select “GENERAL SETTINGS”. - Page 17 Deinterlace: Note: Only available in AV, S-Video, TV1, Component1 input sources. DCDI: This function produces smooth and natural images by minimizing staircasing or jaggies. CCS: This function (CCS) removes “false color” artifacts. FILM Mode: This function produces artifact-free images by proper handling of 3:2 and 2:2 pull-down video motion.
-
Page 18: Closed Caption
For U.S. area only Closed caption: To aid the hearing impaired, Closed Caption is a system which displays a text of the voice dialogue of television programs. This feature uses onscreen text boxes to show conversation and dialogue while the program is in progress. Usually C.C. 1 is the most used. -
Page 19: Use Remote Control
For U.S. area only V-chip: The V-chip feature automatically blocks TV programs and movies based on violence, sex, or other content you may believe inappropriate for children. Once you block programs, you can unblock by entering a password. Use remote control: 1. - Page 20 For U.S. area only TV PG Rating (Parental Guideline) USA V-chip Rating System V-chip reads the program’s age-based rating. If you have blocked the rating, you will receive a rating message on the screen while you select the blocked program None Unblock TV-Y...
-
Page 21: Other Information
Perform any adjustments only according to Instruction Manual. If the problem still exists and you cannot correct the problem, stop using the DISPLAY and contact your dealer or service center at (866) 333-3384 for assistance. SYMPTOMS Make sure the power cord is firmly plugged in the socket. No picture Make sure the power switch is turned on. -
Page 22: Supported Timing
Supported Timing: Display Mode 640 x 480 800 x 600 VESA SVGA 1024 x 768 SXGA 1280 x 1024 1366 x768 WXGA 1920 x1080 Note: In PIP function, when selecting VGA or DVI input sources as sub-screen, SXGA timing can not be supported efficiently. Analog / Digital Horizontal Frequency Vertical Frequency...
