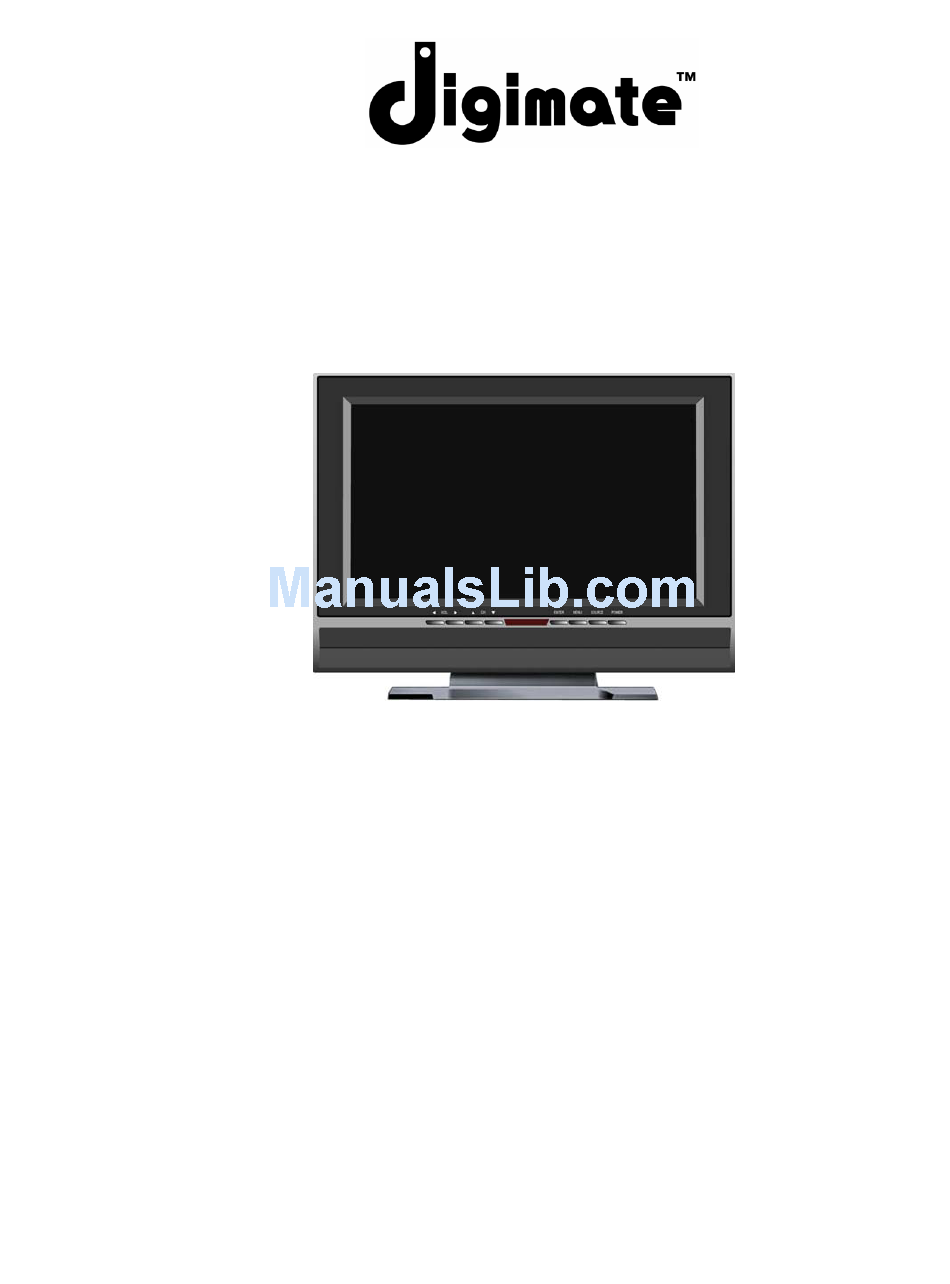

- Page 1 27” HD Ready LCD TV DGL2700 User’s Manual...
-
Page 2: Important Safeguards
WARNING: TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THEIS APPLIANCE TO RAIN OR MOISTURE. WARNING: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. - Page 3 10. POWER SOURCES This unit should be operated only from the type of power source indicated on the rating plate. If you are not sure of the type of power supply to your home, consult your appliance dealer or local power company. For units intended to operate from battery power, or other sources, refer to the operating instructions.
-
Page 4: Fcc Compliance Statement
Conformity and Compliance FCC Compliance Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a residential installation. -
Page 5: Important Precautions
WARNING! Important Precautions CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. TO PREVENT POSSIBLE DANGER, ELECTRIC SHOCK, AND OTHER INJURIES WHEN HANDLING YOUR DISPLAY, PLEASE BE AWARE OF ALL WARNINGS AND SAFETY PRECAUTIONS AS CONTAINED BELOW. -
Page 6: Important Safety Instructions
Important Safety Instructions Read these instructions carefully and save them for future reference. Follow all warnings and instructions marked on the LCD Display. Except as explained elsewhere in this manual, do not attempt to service the LCD Display yourself. Opening or removing covers might expose you to dangerous voltage points or other risks. -
Page 7: Table Of Contents
Table of Contents Introduction... 1 Features... 1 Getting Started... 1 Unpacking the Package ... 1 Standard Accessories ... 1 Location and Function Controls ... 2 Front View ... 2 Panel Buttons ... 2 Rear View, Side View and Bottom View... 3 Using the Remote Control ... -
Page 8: Introduction
Introduction Thank you for purchasing the DIGIMATE DGL2700 display set. This LCD display can be used either as a television or as a computer monitor. With its multiple input options, you can connect almost any device (e.g. VCRs, DVD players and game consoles) to this display. You can also connect your display to a stereo system. -
Page 9: Location And Function Controls
Location and Function Controls Front View Main Power Switch Front Buttons Button Description Press to turn the display on/off after turning On the main POWER power switch located on the lower back panel, next to the AC Cord terminal. SOURCE Press to go through all the available input sources. -
Page 10: Rear View, Side View And Bottom View
Connect the power supply Audio cable connects to PC audio. VGA cable connects to VGA card. Side View Jack Description Video Component1 Input terminal accepts video signal Y1Pb1Pr1 from a Component Video Source (INTERLACED only) Y1Pb1Pr1 L&R Audio input corresponding with Video Component1 Audio Video Component2 Input terminal accepts video signal Y2Pb2Pr2... -
Page 11: Bottom View
Jack Description To connect the Audio corresponding to AV1 source AV 1 audio in To connect the AV2 Video source. AV 2 in To connect the Audio corresponding to AV2 source AV 2 audio in To connect the Audio Corresponding to AV3 source AV 3 audio in To connect the AV3 Video source. -
Page 12: Battery Installation
REMOTE CONTROL BATTERY INSTALLATION Slide the battery compartment cover. Install two “AAA” batteries (not supplied), paying close attention to the + / - polarity diagram in the battery compartment. Replace the compartment cover. BATTERY PRECAUTIONS The precautions below should be followed when using batteries in this device: Use only the size and type of batteries specified. -
Page 13: Using The Remote Control
Using the Remote Control The remote control can be used to control every aspect of the display's operation and provides ease-of-use of the LCD Display: Button Description Power On / Off (standby) after turning on the main power switch. Displays the current information such as channel, etc. Go to the TV menu directly. -
Page 14: Installation
Installation Installing your Display Step 1. Positioning the Display set Place your LCD Display set on a solid and stable surface. To avoid malfunctions, do not expose the LCD Display to water or a heat source and do not obstruct the ventilation grid at the back of the LCD Display. -
Page 15: Antenna Connections
ANTENNA CONNECTIONS If you are using an indoor or outdoor antenna, follow the instructions below that correspond to your antenna system. If you are using a cable TV (CATV) see “CABLE TV CONNECTIONS”. Combination VHF/UHF Antenna (Single 75 Ohm cable or 300 Ohm twin-lead wire) Connect the 75 Ohm cable from the combination VHF/UHF antenna to the Antenna Jack. -
Page 16: Connecting To Different Sources/Devices
Connecting to different Sources/Devices Video System This display supports various input devices including component, composite and S-Video. To learn how to connect these devices to the display, consult your device's manual. Audio System Connect your display to a stereo system to enhance your viewing experience. To connect the display to an audio system, connect one end of the RCA cables to the input blocks of your stereo system then connect the other end to the audio output blocks of the display. -
Page 17: Channel Skip
Use Channel Skip to set which channels you may want to skip when tuning Up or Down using the channel buttons on the remote control. Press MENU then press 3 times to go the TV page of the menu. Press to highlight the third item Channel Skip then press to select the channels you want to... -
Page 18: Using The Display
Using the Display Basic Operation Turning the Power On/Off Press POWER to turn on the LCD Display. The power indicator changes from red to green. When the power is off, the power indicator changes from green to red. Selecting the Source Press SOURCE to select the input signal. -
Page 19: Video Menu
Main Menu There are five main items in the OSD Menu. Video Audio Miscellaneous Video menu (Available for TV and Video modes) Audio menu (Available for TV, Video and PC modes) Miscellaneous menu (Available for TV, Video and PC modes) TV menu PC menu (Available for VGA modes) In TV mode... -
Page 20: Audio Menu
Audio settings: Bass: Adjust the level of low frequency content in the sound. Treble: Adjust the level of high frequency content in the sound. Balance: Adjust the output of the R/L speakers to obtain the best stereo reproduction. Surround: Enable/disable the surround effect. Equalizer 1/2: Choose from a variety of preset audio equalizer settings. -
Page 21: Tv Menu
TV Menu TV settings: Auto Search: Select to scan for available viewable channels from your video source. Tuner Mode: Select the video source. Channel Skip: Lets you specify channels that you want skipped when you are using the CH / CH buttons on the remote control. -
Page 22: Pip (Picture-In-Picture)/Pbp (Picture-By-Picture) Function
PIP (Picture-In-Picture)/PBP (Picture-by-Picture) Function PIP/PBP function lets you watch video from two different sources simultaneously. You can easily control the PIP/PBP function by using the keys on the remote control as below: Button Description Activate the PIP function. Off Used to cycle the sub screen’s source. You need to press this key to highlight the screen and let it become pink first, then press it again to cycle the source. -
Page 23: Parental Controls
Parental Controls Closed Caption Closed caption is a system which allows viewers to read the voice content of television programs on the TV screen to help the hearing impaired. This feature uses onscreen text boxes to show conversation and dialogue while the program is in progress. Captions are the printed text version of the conversation, narration and/or sound effects of the program you are watching. -
Page 24: V-Chip
V-Chip Television sets (U.S. only) come with V-Chip to block TV programming based on its rating. The V-chip feature automatically blocks TV programs and movies based on violence, sex, or other content you may believe inappropriate for children. Using the remote control Press V-CHIP on the remote control then enter the password* to show the V-Chip OSD menu. -
Page 25: Block Tv Rating (Parental Guideline)
Block TV Rating (Parental Guideline) USA V-Chip Rating System V-chip reads the program’s age-based rating. If you have blocked the rating, you will receive a rating message on the screen while you select the blocked program. 1. Select Block TV Rating and press ENTER. 2. -
Page 26: Troubleshooting
Troubleshooting Read the manual thoroughly to operate the Display properly. If the problem persists and you cannot correct the problem, stop using the Display and contact your dealer or the nearest service center for further assistance. SYMPTOMS No picture a) Power indicator does not light No picture b) Power indicator is green. - Page 27 SYMPTOMS Green, red, blue, white dots on screen Remote control cannot work Lost password for parental control CHECK ITEMS This is a characteristic of a liquid crystal display (LCD), it is not a malfunction and will disappear after a few minutes. Make sure that the battery has power and that the orientation (+/-) of the batteries are correct.
-
Page 28: Other Information
Other information Support Timing for PC Resolution Horizontal Frequency Vertical Frequency VESA Standard 31.5 KHz 37.9 KHz 640 x 480 37.5 KHz 43.3 KHz 35.1 KHz 37.9 KHz SVGA 800 x 600 48.1 KHz 46.9 KHz 53.7 KHz 48.4 KHz 56.5 KHz 1024 x 768 60.0 KHz... -
Page 29: Specification
Specification Model Item Panel (Active area) Pixel Number Brightness (cd/m²) Contrast Response Time (ms) Viewing Angle (Degree) American TV Standard / NTSC System TV System VHF/UHF 2~13 CH / 14~69 CH Channel Coverage CATV 2~ 125 CH Video Input 1 Y1Pb1Pr1 IN Audio Input 1 Y1Pb1Pr1 AUDIO IN...
