Summary of Contents for Digimate DGL32

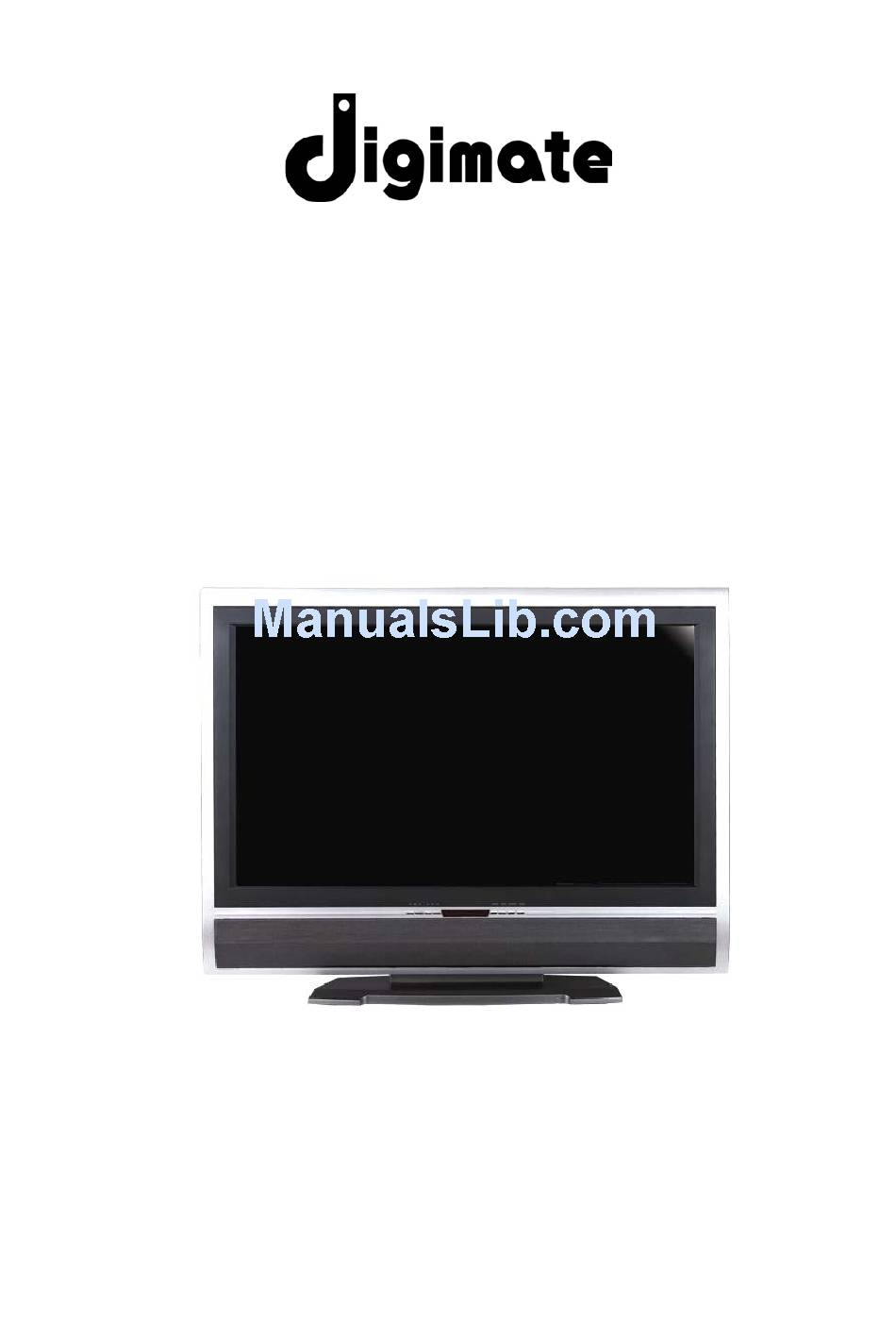

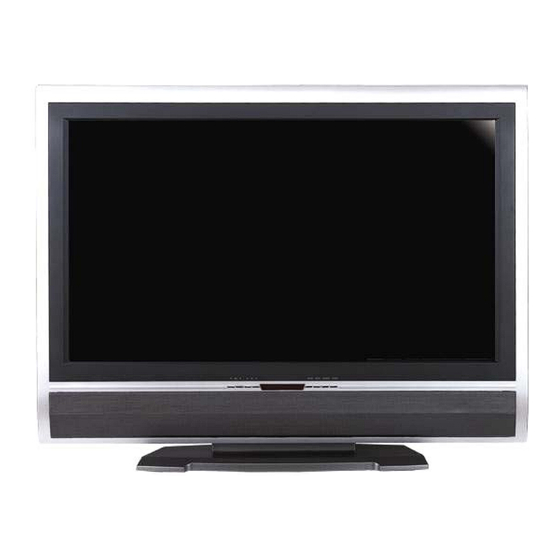

- Page 1 32” HD Ready LCD TV DGL32 User’s Manual...
-
Page 2: Important Safeguards
WARNING: TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE. WARNING: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. - Page 3 10. POWER SOURCES This unit should be operated only from the type of power source indicated on the rating plate. If you are not sure of the type of power supply to your home, consult your appliance dealer or local power company. For units intended to operate from battery power, or other sources, refer to the operating instructions.
- Page 4 TO PREVENT POSSIBLE DANGER, ELECTRIC SHOCK, AND OTHER INJURIES WHEN HANDLING YOUR DISPLAY, PLEASE BE AWARE ALL WARNINGS AND SAFETY PRECAUTIONS CONTAINED AS BELOW. Never Insert anything into DISPLAY!! Do not insert anything through the openings in the unit, where they can touch dangerous voltage points or damage parts.
-
Page 5: Fcc Compliance Statement
CONFORMITY AND COMPLIANCE FCC Compliance Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a residential installation. -
Page 6: Table Of Contents
Introduction Congratulations on the purchase of your LCD TV. This handbook has been designed to help you install and operate your display. We would recommend reading it thoroughly. Table of contents Getting Start Features…………………………………………………………. Standard Accessories…………………………………………. Location of Controls.…………………….………………….…… Remote Control………………………………………………….. Installation Installing your Display…………...…………………………….. -
Page 7: Getting Start
․ Support WXGA resolution up to 1366x768 pixels ․ Wide viewing angle ․ VESA DPMS-compliant power saving: automatically powers down the monitor after a defined period of inactivity ․ Digital Character Smoothing ․ Analog TV tuner ․ Windows 95/98/2000/XP Plug & Play Compliant ․... -
Page 8: Antenna Connections
ANTENNA CONNECTIONS If you are using an indoor or outdoor antenna, follow the instructions below that correspond to your antenna system. If you are using a cable TV (CATV) see “CABLE TV CONNECTIONS”. Combination VHF/UHF Antenna (Single 75 Ohm cable or twin-lead wire) Connect the 75 Ohm cable from the combination VHF/UHF antenna to Jack. -
Page 9: Location Of Controls
Front View Operating the monitor Front Panel Buttons： ① POWER：Press to active the Display On and Off (Standby). ② SOURCE：Press to display all of the available input sources. ③ MENU：Press to see OSD menu of your TV’s adjustments / selections. ④... -
Page 10: Rear View
Rear View REAR PANEL JACKS Side View 1 Y1Cb1Cr1 Connecting to the Video component1 output terminal of the video output device. 2 Y1Cb1Cr1 Audio Audio input terminal connecting to the audio output terminal of the video output device. 3 Y2Pb2Pr2 Connecting to the Video component2 output terminal of the video output device. -
Page 11: Remote Control
TV Function POWER Power On/Off Switch source to TV mode. Select main input source: SOURCE COMPONENT 1 COMPONENT 2 Number keys Select channel by numbers. DISPLAY Display current information. MUTE Turn speaker On or Off. Select the TV audio mode: MONO-> STEREO-> SAP. SOUND Select the sound mode: Off->... -
Page 12: Battery Installation
REMOTE CONTROL BATTERY INSTALLATION Slide the battery compartment cover. Install two “AAA” batteries (supplied), paying close attention to the + / - polarity diagram in the battery compartment. Replace the compartment cover. BATTERY PRECAUTIONS The precautions below should be followed when using batteries in this device: Use only the size and type of batteries specified. -
Page 13: Installation
Step 1. Positioning the display set Place your Display set on a solid stable surface. Do not expose the display to water, or a heat source. Do not obstruct the ventilation grid at rear. Step 2. Connecting the aerials (Antenna) 1. -
Page 14: Set Up
If TV is connected to an antenna, you’ll need to set a few important items in the menu system the first time you turn on your Display. Auto scan: This part of the setup allows the TV tuner to search for all channels viewable though your antenna or cable TV system (when there is no cable box connected). -
Page 15: Operation - Tv
Power On/Off Press the “POWER” key to turn ON the Display. The power indicator changes from red to green. When the power is OFF (stand by), the power indicator changes from green to red. Source select Press “SOURCE” button to select the input signal. Each time the source button is pressed, the on-screen display will cycle between: Component2 (Y2Pb2Pr2) TV Button... -
Page 16: Osd Menu Setting
To access MENU navigate and make adjustments, use MENU, VOL and ENTER. Pressing “MENU” display and the OSD menu. Use controller to scroll the options on the menu. Press “ENTER” button to enter sub menu. Use / to adjust settings. Press “ENTER”... -
Page 17: Tv/Pc Parameters
TV Parameters Press “MENU” and make sure “TV Parameters” appears on the screen. PC parameters Set Image: Adjusting the TV setting: Brightness: Alters the brightness of the image. Contrast: Alters the ratio of light to darkness. Sharpness: Adjusts the sharpness of the color. Saturation: Alters the color saturation. -
Page 18: Audio Settings
Press “MENU” and press screen. In TV, Video, and PC modes MTS (For TV mode only): to make sure the “AUDIO SETTINGS” is displayed on the Adjusting the audio setting: Volume: This will adjust the level of volume. Mute: Mutes the sound Bass: This will adjust the level of low frequency content in the sound. -
Page 19: Picture-In-Picture
PIP function: With PIP function you can watch a multi-screen on the Display at the same time. To start the PIP function. Off->PIP(Small) ->PIP(Medium) ->PIP(Large)-> PBP -> POP SOURCE To select the sub screen’s source. (see the PIP structure below) POSITION To adjust the PIP position. -
Page 20: General Settings
Press “MENU” and press screen. In TV, Video, and PC modes Sleep Timer: With sleep timer you can set a time period after which the TV automatically switches to standby. The counter runs from OFF to 120 Min. You can easily set up the “Sleep Timer”... - Page 21 Deinterlace: Note: Only available in AV, S-Video, TV1, Component1 input sources. Fleshtone: This function can adjust the figure’s skin color to the better Motion: There are three levels: Small, Medium, and Large. Small Medium Medium adjustment; Large Note: VGA, DVI, Component2 input sources can not access Deinterlace control. DCDI: This function produce smooth and natural images Without staircasing or jaggies .
-
Page 22: Parental Controls
For U.S. area only Closed caption: Closed caption is a system which allows you to read the voice content of television programs on the TV screen to help the hearing impaired. This feature uses onscreen text boxes to show conversation and dialogue while the program is progress. Usually C.C. - Page 23 For U.S. area only V-chip: The V-chip feature automatically blocks TV programs and movies based on violence, sex, or other content you may believe inappropriate for children. Once you block programs, you can unblock by entering a password. Use remote control: 1.
- Page 24 For U.S. area only TV PG Rating (Parental Guideline) USA V-chip Rating System V-chip reads the program’s age-based rating. If you have blocked the rating, you will receive a rating message on the screen while you select the blocked program None Unblock TV-Y...
-
Page 25: Other Information
Perform the adjustments according to Instruction Manual. If the problem still exists, you cannot correct the problem, stop using the DISPLAY and contact your dealer or the nearest service center for further assistance. SYMPTOMS No picture a) Power indicator does not light up. No picture b) Power indicator is green. -
Page 26: Supported Operation Mode
Supported Timing: Display Mode 640 x 480 720X400 VESA SVGA 800 x 600 SXGA 1280 x 1024 Note: In PIP function, when selecting VGA or DVI input sources as sub-screen, SXGA timing can not be supported efficiently. Analog / Digital Horizontal Frequency Vertical Frequency 31.5 KHz...
