S e r v i c e L i t e r a t u r e

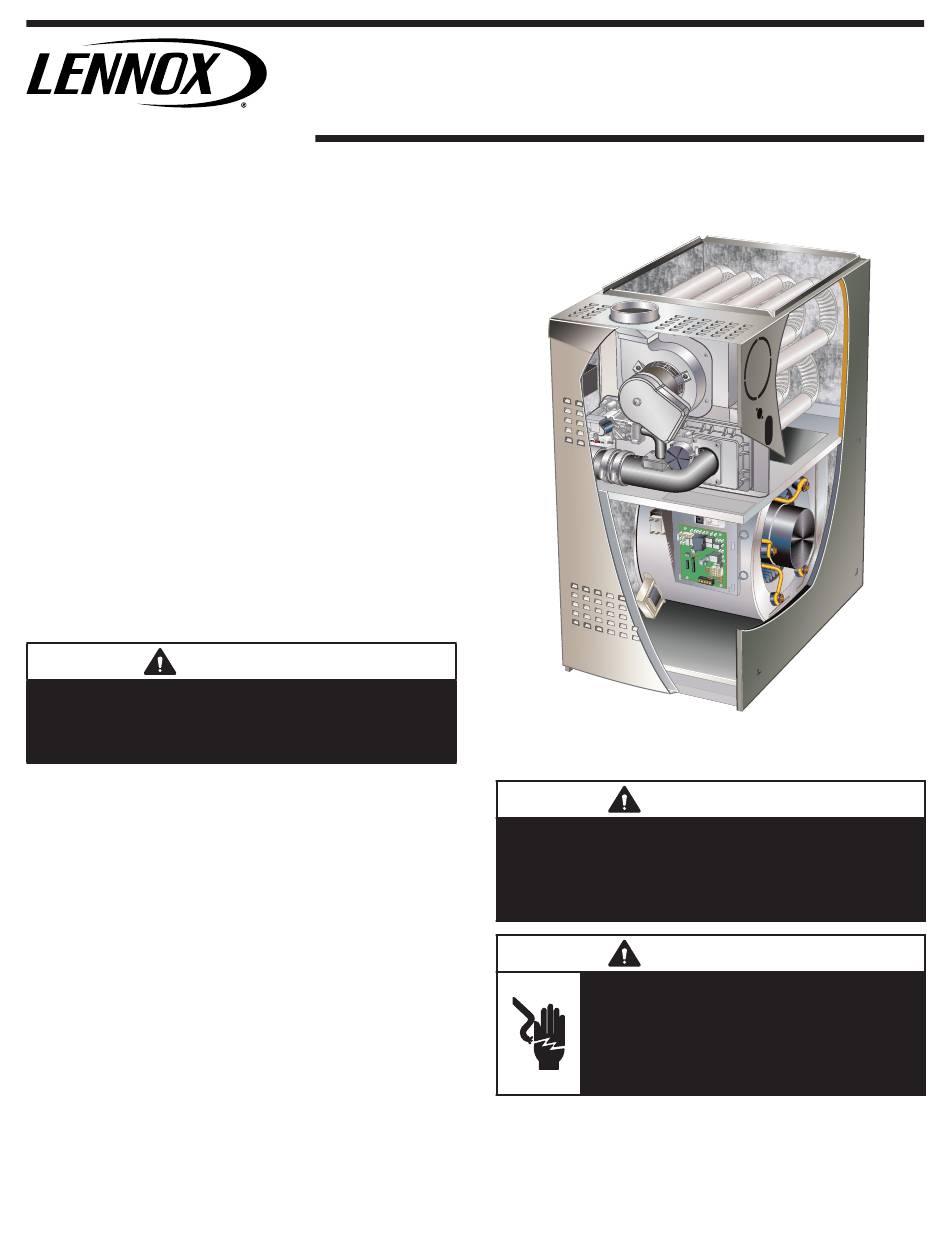

EL180UHNE series units are mid-efficiency gas furnaces

used for upflow or horizontal applications only, manufac-

tured with heat exchangers formed of aluminized steel

tubes. EL180UHNE units are available in heating capaci-

ties of 40,000 to 100,000 Btuh and cooling applications 2

to 5 tons. Refer to Engineering Handbook for proper siz-

ing.

EL180UHNE model units are equipped with a hot surface

ignition system. The EL180UHNE unit meets the new Cal-

ifornia 14 ng/J Nitrogen Oxides (NOx) Standards and Cali-

fornia Seasonal Efficiency requirements. All units use a re-

dundant gas valve to assure safety shut-off as required by

C.S.A.

All specifications in this manual are subject to change.

Procedures outlined in this manual are presented as a

recommendation only and do not supersede or replace lo-

cal or state codes. In the absence of local or state codes,

the guidelines and procedures outlined in this manual

(except where noted) are recommended only and do not

constitute code.

CAUTION

As with any mechanical equipment, contact with sharp

sheet metal edges can result in personal injury. Take

care while handling this equipment and wear gloves and

protective clothing.

TABLE OF CONTENTS

Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 2

Blower Data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 3

Parts Identification . . . . . . . . . . . . . . . . . . . . . . . . . Page 8

I Unit Components . . . . . . . . . . . . . . . . . . . . . . . . Page 9

II Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 22

III Start Up . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 22

IV Heating Systems Checks . . . . . . . . . . . . . . . Page 22

V Typical Operating Characteristics . . . . . . . . . Page 32

VI Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . Page 33

VII Wiring and Sequence of Operation

UNIT INFORMATION

Corp 1803-L1

Revised 04/2024

. . . . . . Page 36

Page 1

WARNING

Improper installation, adjustment, alteration, service

or maintenance can cause property damage, personal

injury or loss of life. Installation and service must be

performed by a licensed professional HVAC installer or

equivalent, service agency, or the gas supplier.

WARNING

Electric shock hazard. Can cause injury

or death. Before attempting to perform

any service or maintenance, turn the

electrical power to unit OFF at disconnect

switch(es). Unit may have multiple power

supplies.

EL180UHNE
