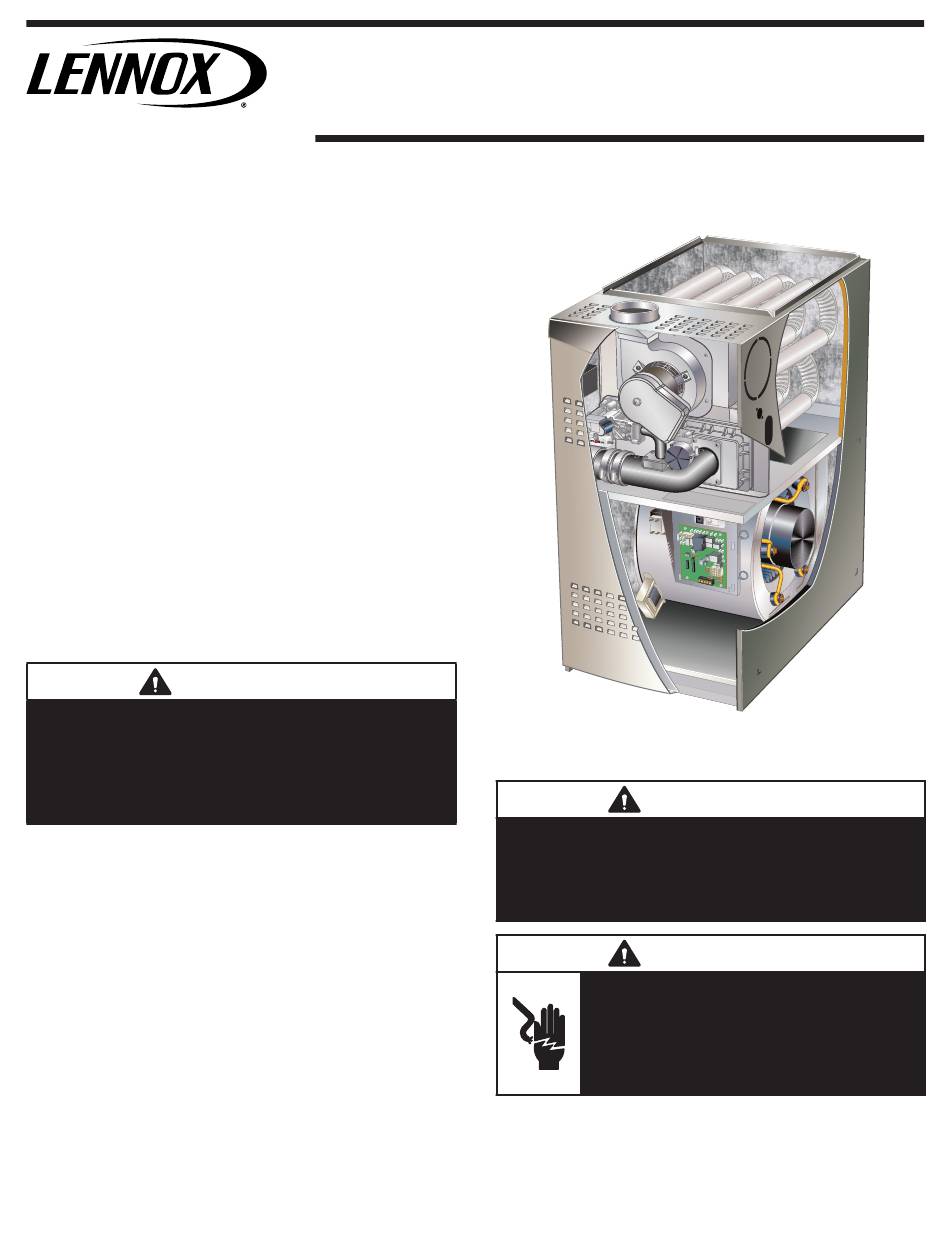

S e r v i c e L i t e r a t u r e

EL180UHNEK series units are mid-efficiency gas furnac-

es used for upflow or horizontal applications only, manu-

factured with heat exchangers formed of aluminized steel

tubes. EL180UHNEK units are available in heating capac-

ities of 40,000 to 100,000 Btuh and cooling applications 2

to 5 tons. Refer to Engineering Handbook for proper siz-

ing.

EL180UHNEK model units are equipped with a hot sur-

face ignition system. The EL180UHNEK unit meets the

new California 14 ng/J Nitrogen Oxides (NOx) Standards

and California Seasonal Efficiency requirements. All units

use a redundant gas valve to assure safety shut-off as

required by

C.S.A.

All specifications in this manual are subject to change.

Procedures outlined in this manual are presented as a

recommendation only and do not supersede or replace lo-

cal or state codes. In the absence of local or state codes,

the guidelines and procedures outlined in this manual

(except where noted) are recommended only and do not

constitute code.

WARNING

This furnace is equipped with an ignition control

factory enabled for use with A2L refrigerant systems.

Disabling the refrigerant detection functionality on

A2L system is prohibited by safety codes. Refer

to furnace installation instructions for refrigerant

system setup.

TABLE OF CONTENTS

Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 2

Blower Data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 3

Parts Identification . . . . . . . . . . . . . . . . . . . . . . . . . Page 5

Twinning. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 6

I Unit Components . . . . . . . . . . . . . . . . . . . . . . . . Page 7

II Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page2I

II Start Up . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 21

IV Heating Systems Checks . . . . . . . . . . . . . . . Page 21

V Typical Operating Characteristics . . . . . . . . . Page 29

VI Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . Page 30

VII Low GWP Application. . . . . . . . . . . . . . . . . . . . . .Page 33

VIII Wiring and Sequence of Operation

IX-Troubleshooting. . . . . . . . . . . . . . . . . . . . . . . . . . .Page 37

UNIT INFORMATION

EL180UHNEK With R-454B SERIES UNITS

. . . . . . Page 36

100157

Improper installation, adjustment, alteration, service

or maintenance can cause property damage, personal

injury or loss of life. Installation and service must be

performed by a licensed professional HVAC installer or

equivalent, service agency, or the gas supplier.

Electric shock hazard. Can cause injury

or death. Before attempting to perform

any service or maintenance, turn the

electrical power to unit OFF at disconnect

switch(es). Unit may have multiple power

supplies.

Page 1

EL180UHNEK

WARNING
