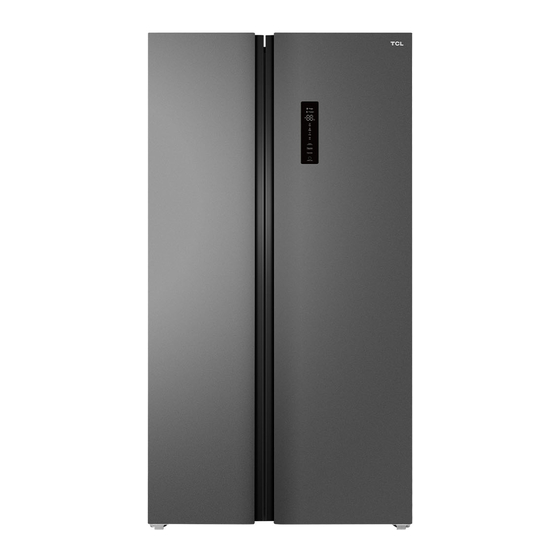

Two-door household refrigerator

Advertisement

Quick Links

Two-door Household Refrigerator
Operating Instructions
RP505SSE2UK
TCL Home Appliances (Hefei) Co., Ltd.
Address: No. 10 Yunhu Road, Economic Development Zone,
Hefei City, Anhui Province,China

Advertisement

loading
Need help?

Need help?

Do you have a question about the RP505SSE2UK and is the answer not in the manual?

Questions and answers

Summary of Contents for TCL RP505SSE2UK

  • Page 1 Two-door Household Refrigerator Operating Instructions RP505SSE2UK TCL Home Appliances (Hefei) Co., Ltd. Address: No. 10 Yunhu Road, Economic Development Zone, Hefei City, Anhui Province,China...
  • Page 3 Contents Thank you for buying TCL refrigerator. We hereby express our thanks. Welcome to use TCL refrigerator. We will do our best to provide you with quality service. Safety instructions ------------------------------------------------------------------------ Product introduction ---------------------------------------------------------------------- Handling and placement ----------------------------------------------------------------- Preparations prior to use ----------------------------------------------------------------...
  • Page 4 Safety instructions 1.Warning Warning : No barrier is allowed around the appliance or in the embedded structure in order to ensure the free ventilation. Warning : It is forbidden to speed up the defrosting process with any mechanical equipment or by other method except for the method recommended by the manufacturer. Warning : Never damage the refrigerating circuit.
  • Page 5 Safety instructions Warning fi fl Risk of re / ammable materials Warning: When positioning the appliance, ensure the supply cord is not trapped or damaged. Warning: Do not locate multiple portable socket-outlets or portable power supplies at the rear of the appliance. Children aged from 3 to 8 years are allowed to load and unload refrigerating appliances Opening the door for long periods can cause a significant increase of the temperature in the compartments of the appliance.
  • Page 6 Safety instructions Cautions: The refrigerator must not be used in the rain or under the sunshine. Cautions: fl It is forbidden to place the container with uid on the refrigerator because the breakage or turnover of the container may affect the electrical insulation of refrigerator and result in electric shock or fire.
  • Page 7 Product introduction Refrigerator air duct Refrigerating chamber door Freezer chamber door Two-star area Refrigerator bottle holder Freezer shelf Refrigerator shelf Freezer bottle holder Freezer drawer cover Fruit and vegetable box cover Two-star area Freezer drawer Fruit and vegetable box The pictures are for reference only. Please refer to the object Features –...
  • Page 8 Handling and placement Certain space shall be left During handling, the door The refrigerator shall be around the refrigerator, side of the refrigerator shall placed in an environment shown in the figure. not contact with the which is dry, has good handling tools ventilation, far from direct sunshine and heat source.
  • Page 9 This refrigerating appliance is not intended to be used as a built-in appliance >L1+380 >W1+600 Preparations prior to use 1. Remove all packing assemblies such as case fixing tape etc., especially the foam base. 2. Use warm wet cloth to clean both interior and exterior of the refrigerator, (neutral detergent can be added in warm water).
  • Page 10 Operation keys Operation and diagram of display board The above is the computer control board of the product...
  • Page 11 Operation keys...
  • Page 12 Operation keys refrigerator chamber...
  • Page 13 Operation keys Foods storage refrigerator chamber (2℃~8℃) --The refrigerator chamber is mainly used for storing short-term foods, like milk, eggs and bottled drink. --Vegetables, melons and fruits shall be put into the fruit and vegetable box to prevent water loss. --The cooked foods shall be put into the refrigerator after packaging with the preservative bags, to prevent the back from frosting and the power from increasing.
  • Page 14 Operation keys Disassembly and assembly method of accessory --Glass shelf in the refrigerating chamber: the height of the shelf is adjustable, which facilitates the storage of articles with di erent volumes. Pull the shelf outwardly and upwardly in a slight way to take out.
  • Page 15 Failure analysis The following items shall be inspected before occurring failures which require maintenance: Failures:Refrigerator does not work,The refrigeration e ect is poor Causes:1. Check the connection of power supply. 2. Check whether the refrigerator is exposed to direct sunlight or whether there is heat source nearby. 3. Check whether there is heat dissipation space around refrigerator.
  • Page 16 Technical prameter Technical parameter Model RP505SSE2UK Climate type SN/N/ST/T Electric shock resistance Star sign 505L Total Volume 324L Fresh food compartment Volume of Freezer 156L Volume of Two-star Section Power type 220-240V〜/50Hz Rated current 1.6A 314 kWh/a Power consumption Lamp power...
  • Page 17 Packing list Model RP505SSE2UK Annex Refrigerator shelf Refrigerator bottle holder Freezer bottle holder Freezer drawer Freezing drawer cover...
  • Page 18 Safe recovery instructions Disposal Old appliances still have some surplus value. An environmentally friendly approach will ensure that valuable raw materials are recycled. The refrigerants used in your equipment and insulation materials require special handling procedures. Make sure there is no pipe damage on the back of the equipment before handling. Up-to-date information on the options for disposing of old equipment and packaging from old equipment can be obtained from the local municipal office.
