Velocity System 8" Scheduling Touch Panel
AT-VSP-800-BL and AT-VSP-800-WH

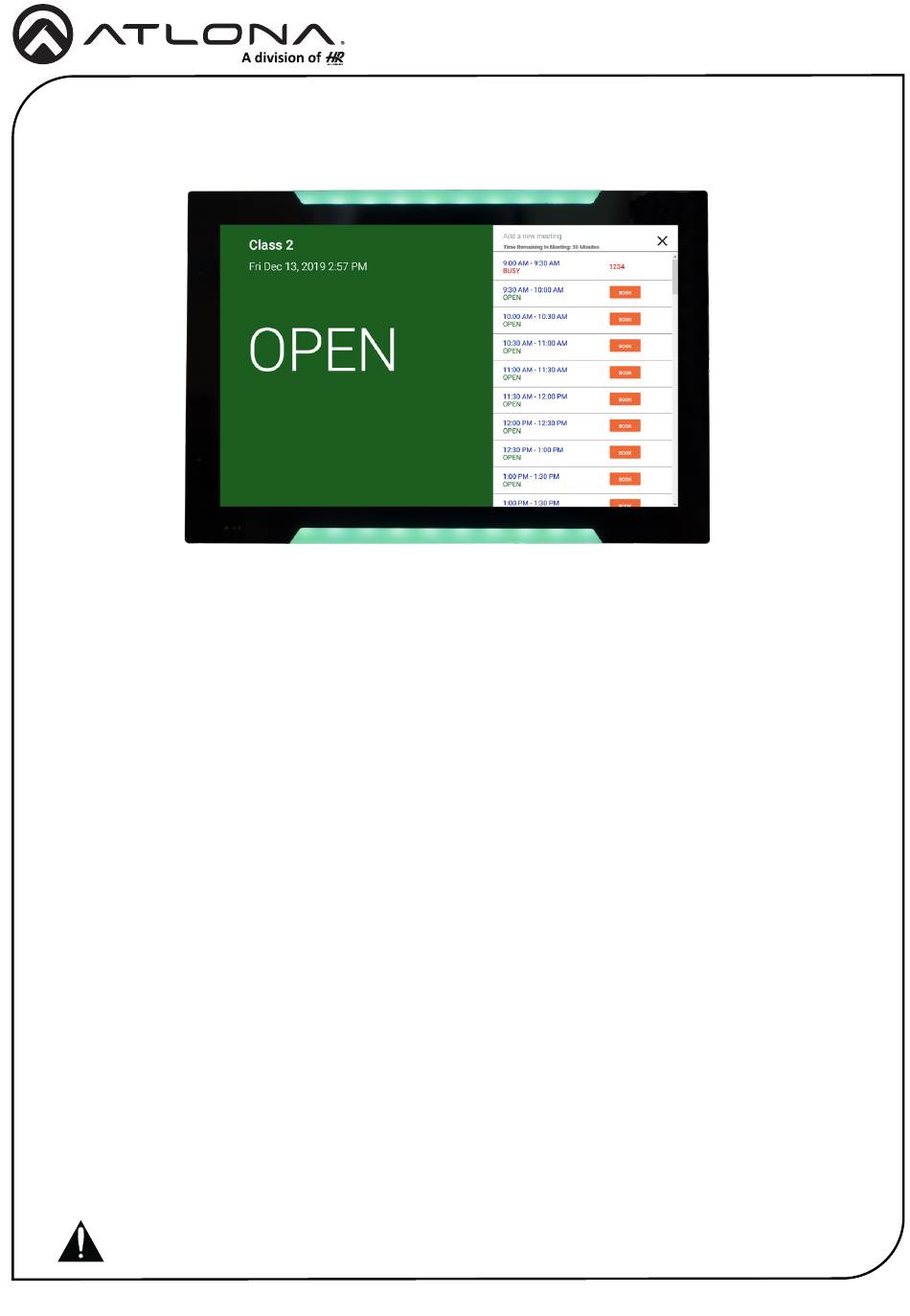

The Atlona AT-VSP-800 is a Velocity System 8" scheduling touch panel. It features contemporary,
refined styling with 1280×800 native resolution, and a capacitive glass surface that supports
touch and gesture interactions. Bright LED lighting on the edge of the bezel is ideal for providing
a visual representation of room status in scheduling applications. This touch panel conveniently
installs into a wall or furniture via a one-gang US, UK, or EU opening. The VSP-800 features
Power over Ethernet (PoE), enabling a single network connection for data and power. Setting up
the touch panel is effortless as room scheduling and AV control GUIs are automatically uploaded
from the Velocity System hardware or software server gateway during system configuration.
Package Contents
1 x AT-VSP-800
1 x Metal 1-gang mounting plate
1 x Metal 2-gang US horizontal mounting plate
Operating Notes
•
The Velocity 8" Scheduling Touch Panel (AT-VSP-800) must be on the same network as the
Velocity Gateway (AT-VGW-HW-3/10/20) or it will be unable to sync for scheduling.
•
The AT-VTP-800 is PoE capable, to power the unit, simply plug it into a 802.3af compatible
network switch. If the network switch is not PoE capable, a PoE injector
can be used.
IMPORTANT: Velocity Gateway (AT-VGW-HW-3/10/20) must be set up before the AT-
VSP-800 is fully functional.
4 x Mounting screws
1 x Installation Guide
1
Installation Guide
AT-VSP-800-BL and AT-VSP-800-WH
(purchased separately)
Advertisement
Related Manuals for Atlona AT-VSP-800-WH
Summary of Contents for Atlona AT-VSP-800-WH
- Page 1 Velocity System 8” Scheduling Touch Panel AT-VSP-800-BL and AT-VSP-800-WH The Atlona AT-VSP-800 is a Velocity System 8” scheduling touch panel. It features contemporary, refined styling with 1280×800 native resolution, and a capacitive glass surface that supports touch and gesture interactions. Bright LED lighting on the edge of the bezel is ideal for providing a visual representation of room status in scheduling applications.
- Page 2 Installation Guide AT-VSP-800-BL and AT-VSP-800-WH Mounting Instructions The AT-VSP-800 can be mounted to a 1 gang back plate. Select the type of 1 gang back box to use and install into a wall. NOTE: Install using the region’s safety guidelines for electrical boxes.
- Page 3 Installation Guide AT-VSP-800-BL and AT-VSP-800-WH US back box: 1-gang Vertical installation 2-gang Horizontal installation To install the touch panel in landscape orientation in a wall the US 2-gang installation plate should be used. Use the 4 included screws to install the unit into the back box.
- Page 4 Installation Guide AT-VSP-800-BL and AT-VSP-800-WH EU back box: NOTE: For horizontal installation, turn the unit and mounting plate on its side. The same back box can be used. Installation and Set Up NOTE: Installation of the Velocity Touch Panel can only be done after Velocity has been set up.
- Page 5 Installation Guide AT-VSP-800-BL and AT-VSP-800-WH Scanning for Gateways Scanning for Gateways 10.0.0.234 CANCEL CANCEL Press the SCAN FOR GATEWAYS button. The touch panel will scan for new gateways. Once the correct gateway is found, press USE. On a network computer, use a browser to log into Velocity.
- Page 6 Installation Guide AT-VSP-800-BL and AT-VSP-800-WH Select the Edit button on the tile to open the unit settings. Enter the IP of the VTP into the IP Address field and select the save icon in the top right corner of the screen. The screen will close, the panel will sync to the gateway, and the room control will display on the panel.
- Page 7 Installation Guide AT-VSP-800-BL and AT-VSP-800-WH Advanced Settings Once the touch pad has been set up, the settings can be changed or reset only through the advanced settings. To access the settings, swipe from the left side of the touch pad to the right.
- Page 8 Installation Guide AT-VSP-800-BL and AT-VSP-800-WH Firmware Updating The touch panel can be updated from within its settings menu. To update, the panel must be connected to a network with internet access. Swipe from the left side of the touch pad to the right to open the gateway settings menu.
- Page 9 • © 2025 Atlona Inc. All rights reserved. “Atlona” and the Atlona logo are registered trademarks of Atlona Inc. All other brand names and trademarks or registered trademarks are the property of their respective owners. Pricing, specifications and availability subject to change without notice. Actual products, product images, and...
