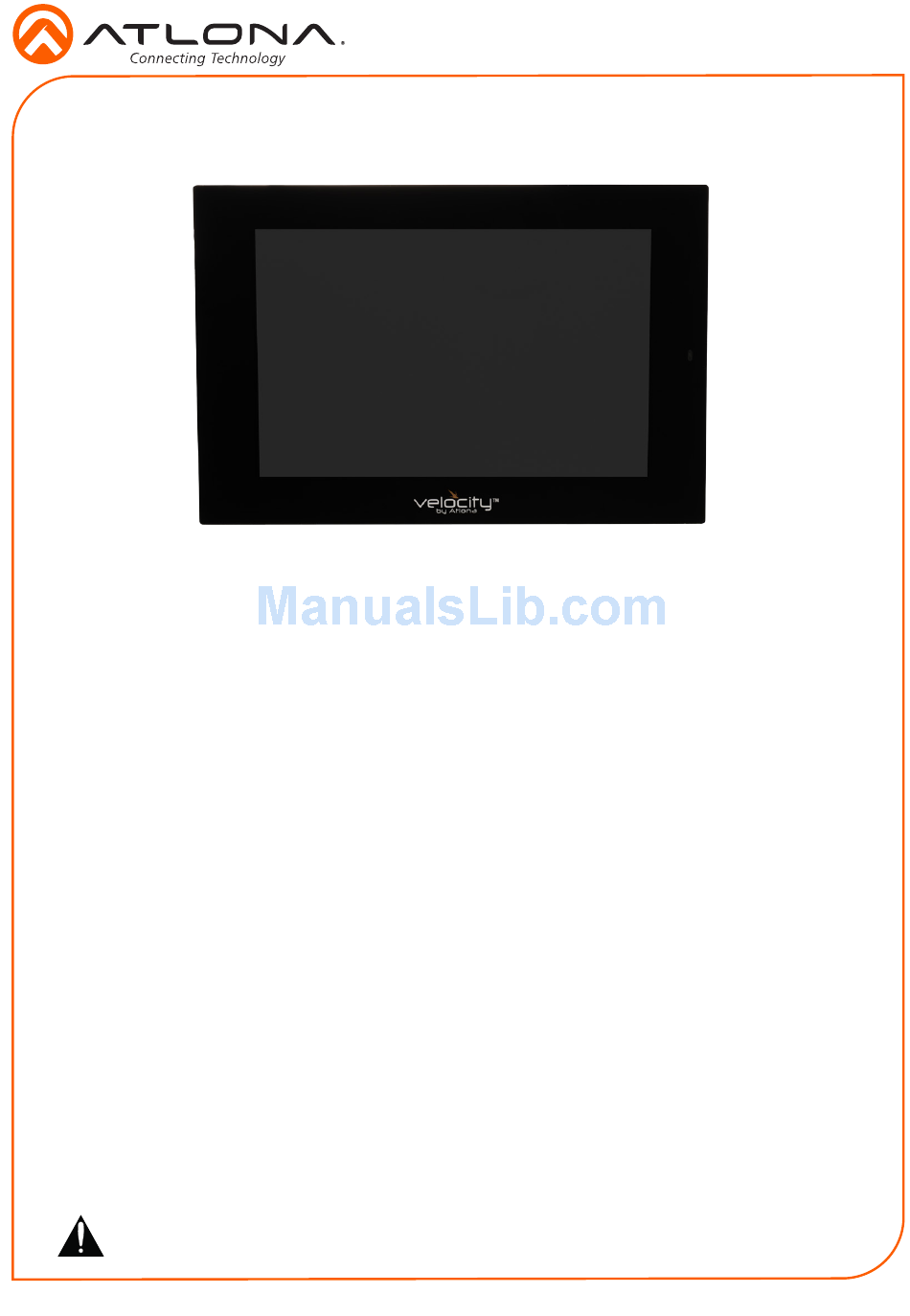

Velocity 8" Touch Panel
AT-VTP-800
The Atlona AT-VTP-800-BL and AT-VTP-800-WH are 8" touch panels in black and white,
respectively, for the Atlona Velocity™ Control System. They feature contemporary, refined styling
for modern presentation environments with 1280x800 native resolution, and a capacitive glass
surface that supports multi-touch and gesture interactions. These touch panels conveniently
install into a wall or furniture via a US two-gang opening. Also available is the optional AT-VTP-
TMK tabletop mounting kit for placement on a meeting table or lectern. The VTP-800-BL and
VTP-800-WH feature Power over Ethernet (PoE), enabling a single network connection for data
and power. Setting up the touch panels is effortless as the AV control GUI is automatically
uploaded from the Velocity Control Gateway processor during system configuration.

Package Contents

1 x AT-VTP-800
1 x Metal mounting plate
4 x Mounting screws
Operating Notes
•
The Velocity 8" Touch Panel (AT-VTP-800) must be on the same network as the Velocity
Gateway (AT-VGW-250) or it will be unable to sync for control.
•
The AT-VTP-800 is PoE capable, to power the unit, simply plug it into a 802.3at compatible
network switch. If the network switch is not PoE capable, a PoE injector
can be used.
IMPORTANT: Velocity Gateway (AT-VGW-250) must be set up before the AT-VTP-800 is
fully functional.
1 x Wall installation template
1 x 2-gang mud ring
1 x Installation Guide
1

Installation Guide

(purchased separately)
AT-VTP-800

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Velocity AT-VTP-800-BL and is the answer not in the manual?

Questions and answers

Related Manuals for Atlona Velocity AT-VTP-800-BL

Summary of Contents for Atlona Velocity AT-VTP-800-BL

  • Page 1: Installation Guide

    Velocity 8” Touch Panel AT-VTP-800 The Atlona AT-VTP-800-BL and AT-VTP-800-WH are 8” touch panels in black and white, respectively, for the Atlona Velocity™ Control System. They feature contemporary, refined styling for modern presentation environments with 1280x800 native resolution, and a capacitive glass surface that supports multi-touch and gesture interactions.

  • Page 2: Mounting Instructions

    Installation Guide AT-VTP-800 Mounting Instructions The AT-VTP-800 has two mounting options. In-wall or an optional stand (available through atlona. com). In-wall Use the included wall mount template to create a hole in the wall the correct 2-Gang size for the unit.

  • Page 3: Installation And Setup

    Installation Guide AT-VTP-800 Stand Place the stand on the table/desk If the rubber no slip guard is not secure enough, use four wall screws and thread them though the four holes on the bottom of the unit and into the desk/table. Thread the Ethernet cable through the bottom rounded hole on the back of the stand and back out the rectangular hole on the front of the stand.
  • Page 4 Installation Guide AT-VTP-800 Initial Setup You will be guided through the setup process in the next few screens. CONTINUE When the unit displays the IP information, press CONTINUE. If the touch panel does not display an IP, select the Set Static IP slider. Assign the unit a static IP.
  • Page 5 Installation Guide AT-VTP-800 Synchronizing Waiting for Approval CANCEL On a network computer, use a browser to log into Velocity. A green message will appear at the top right corner of the screen. Select Buildings. On the buildings screen, press the Synchronize button on the building the touch panel is located.

  • Page 6: Advanced Settings

    Installation Guide AT-VTP-800 Advanced Settings Once th touch pad has been set up, the settings can be changed or reset only through the advanced settings. To access the settings, swipe from the left side of the touch pad to the right. Select Advanced Setup.

  • Page 7: Connection Diagram

    Installation Guide AT-VTP-800 Connection Diagram I OUT P OUT -250 AT-V AT-VGW-250 (redundancy) I OUT -250 P OUT AT-V AT-VGW-250 AT-VCC-IR Display AV LAN AT-VCC AT-VTP-550-BL AT-VCC-RS232 AT-VCC AT-VTP-800-WH AT-VCC-RELAY Projector AT-VCC Projector Screen AT-VTP-800-BL AT-VCC-IR Display AT-VCC Troubleshooting Problem Cause Solution My touchpad won’t power...
  • Page 8 • © 2016 Atlona Inc. All rights reserved. “Atlona” and the Atlona logo are registered trademarks of Atlona Inc. All other brand names and trademarks or registered trademarks are the property of their respective owners. Pricing, specifications and availability subject to change without notice. Actual products, product images, and online product...
