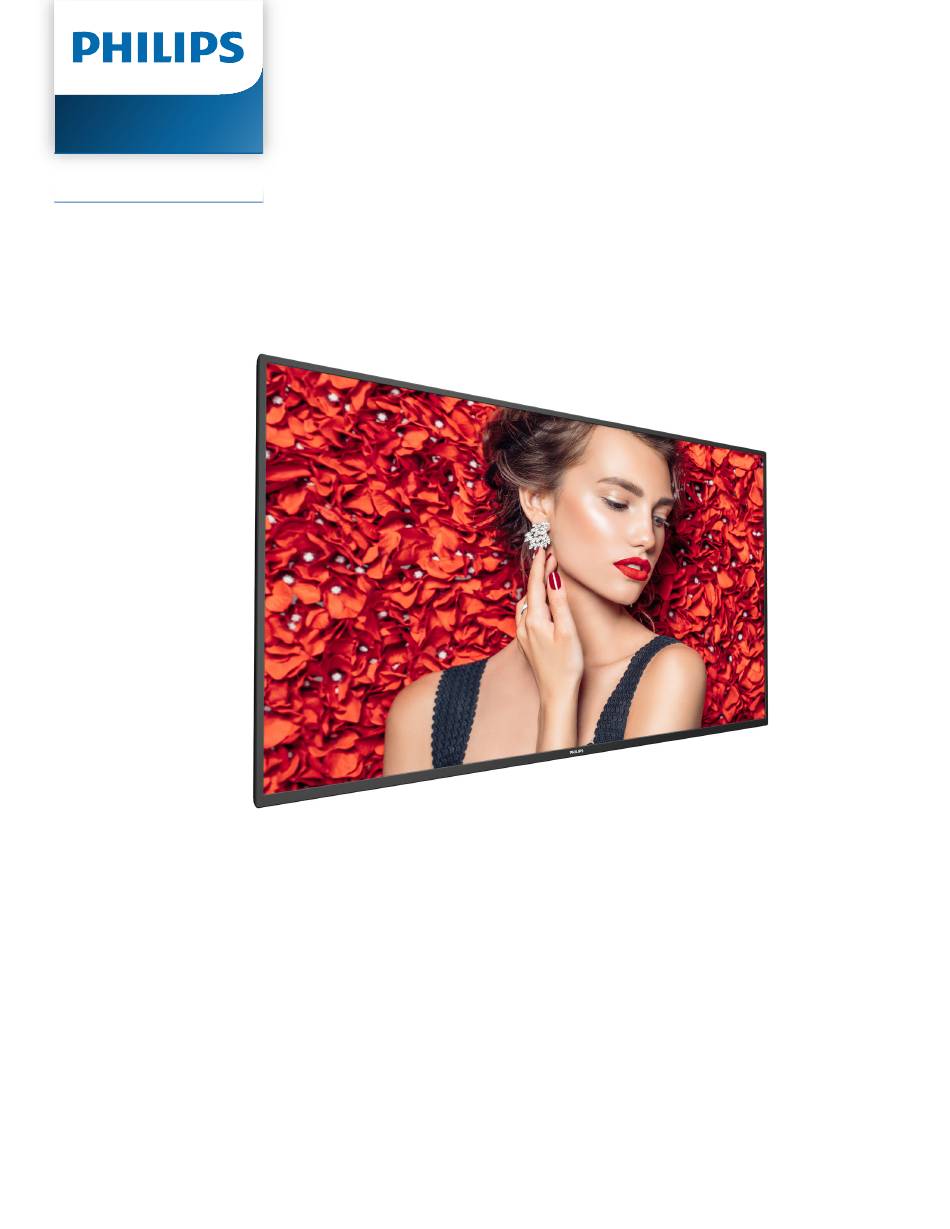

  • Page 1 Professional Display Solutions D Line 65BDL4511D 75BDL4511D 86BDL4511D User Manual (English) www.philips.com/welcome...
  • Page 2 USB Cover ............21 10.2. Troubleshooting ..........40 3.5. AC Switch Cover ..........22 11. Technical Specifications ..........41 Connecting External Equipment ......23 Warranty policy for Philips Professional Display 4.1. Connecting External Equipment Solutions .................43 (Multimedia Player) .........23 4.1.1. Using HDMI video input ....23 Index ..................45...
  • Page 3 When turning off the display by detaching the power cord, wait 6 seconds before re-attaching the power cord for normal operation. • Ensure the use of an approved power cord provided by Philips at all times. If your power cord is missing, please contact your local service center. •...
  • Page 4 65BDL4511D_75BDL4511D_86BDL4511D • Only the lifetime of the display stated in this specification is guaranteed if the display is used under the proper operation conditions. IMPORTANT: Always activate a moving screen saver program when you leave your display unattended. Always activate a periodic screen refresh application if the unit will display unchanging static content.
  • Page 5 65BDL4511D_75BDL4511D_86BDL4511D Warning: This equipment is compliant with Class A of EN55032/CISPR 32. In a residential environment this equipment may cause radio interference. Federal Communications Commission (FCC) Notice (U.S. Only) NOTE: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules.
  • Page 6 65BDL4511D_75BDL4511D_86BDL4511D Polish Center for Testing and Certification Notice The equipment should draw power from a socket with an attached protection circuit (a three-prong socket). All equipment that works together (computer, display, printer, and so on) should have the same power supply source. The phasing conductor of the room’s electrical installation should have a reserve short-circuit protection device in the form of a fuse with a nominal value no larger than 16 amperes (A).
  • Page 7 65BDL4511D_75BDL4511D_86BDL4511D Information for U.K. only WARNING - THIS APPLIANCE MUST BE EARTHED. Important: This apparatus is supplied with an approved moulded 13A plug. To change a fuse in this type of plug proceed as follows:+ 1. Remove fuse cover and fuse. 2.
  • Page 8 65BDL4511D_75BDL4511D_86BDL4511D China RoHS 根据中国大陆《电器电子产品有害物质限制使用管理办法》，以下部分列出了本产品中可能包含的有害 物质的名称和含量。 有害物质 部件名称 铅 汞 镉 六价铬 多溴联苯 多溴二苯醚 (Pb) (Hg) (Cd) (Cr (VI)) (PBB) (PBDE) 外壳 液晶显示屏 电路板组件* 电源适配器 电源线/连接线 遥控器 本表格依据SJ/T 11364 的规定编制。 *: 电路板组件包括印刷电路板及其构成的零部件，如电阻、电容、集成电路、连接器等。 O: 表示该有害物质在该部件所有均质材料中的含量均在 GB/T 26572规定的限量要求以下。 X: 表示该有害物质至少在该部件的某一均质材料中的含量超出GB/T 26572规定的限量要求。 上表中打“X”的部件， 应功能需要， 部分有害物质含量超出GB/T 26572规定的限量要求， 但符合欧盟 RoHS法规要求...
  • Page 9 Please find out about the local regulations on how to dispose of your old display from your local Philips dealer. (For customers in Canada and U.S.A.) This product may contain lead and/or mercury.
  • Page 10 For more information about E -waste please visit http://www.india.philips.com/about/sustainability/recycling/index.page and to know where you can drop off your waste equipment for recycling in India please contact on below given contact details.
  • Page 11 65BDL4511D_75BDL4511D_86BDL4511D Batteries For EU: The crossed-out wheeled bin implies that used batteries should not be put to the general household waste! There is a separate collection system for used batteries, to allow proper treatment and recycling in accordance with legislation. Please contact your local authority for details on the collection and recycling schemes.
  • Page 12 65BDL4511D_75BDL4511D_86BDL4511D Unpacking and Installation 2.1. Unpacking • This product is packed in a carton, together with the standard accessories. • Any other optional accessories will be packed separately. • As this product is high and heavy, the operation of moving the device is recommended to be performed by two technicians. •...
  • Page 13 65BDL4511D_75BDL4511D_86BDL4511D • Place the display vertically and its weight should spread evenly on the surface. • Please keep vertically, no bending and torsion during moving the display.
  • Page 14 • RS232 daisy chain cable * The supplied power cord varies depending on destination. • IR Sensor cable • HDMI cable • Philips logo plate Power Cord RS232 Cable RS232 Daisy Chain Cable • USB cover • AC Switch cover •...
  • Page 15 4. For the wall-mounting kit, use M8 mounting screws (with a length 15 mm longer than the thickness of the mounting bracket) and tighten them securely. 2.4.1. VESA Grid 65BDL4511D 400(H) x 400(V) mm 75BDL4511D 600(H) x 400(V) mm...
  • Page 16 65BDL4511D_75BDL4511D_86BDL4511D 2.5. Mounting in Portrait Orientation This display can be installed in portrait orientation. Rotate the display 90 degrees Counterclockwise. The “ ” logo should be on the right side when facing the display. 90° 90° 2.5.1. How to remove the logo 1.
  • Page 17 65BDL4511D_75BDL4511D_86BDL4511D Parts and Functions 3.1. Control Panel [ ] button [MENU] button Press this button to turn the display On or turn the Return to the previous menu while the OSD menu is On. display to standby mode. This button can also be used to activate the OSD menu when the OSD menu is Off.
  • Page 18 65BDL4511D_75BDL4511D_86BDL4511D 3.2. Input/Output Terminals 65BDL4511D RJ45 USB 2.0 Service Port PC LINE IN AUDIO OUT IR-OUT IR-IN RS232 RS232 100-240V DP IN DP OUT HDMI 2 IN HDMI 3 IN HDMI OUT 50/60Hz 2.5A HDMI 1 IN DVI-I IN 11 12...
  • Page 19 65BDL4511D_75BDL4511D_86BDL4511D 75BDL4511D/86BDL4511D RJ45 USB 2.0 Service Port PC LINE IN AUDIO OUT IR-OUT IR-IN RS232 RS232 100-240V DP OUT DP IN HDMI 1 IN HDMI 2 IN HDMI 3 IN HDMI OUT 50/60Hz 2.5A DVI-I IN 11 12 AC OUT AUDIO OUT AC power supply to the AC IN jack of a media player.
  • Page 20 65BDL4511D_75BDL4511D_86BDL4511D 3.3. Remote Control ] POWER button Turn the power On. 3.3.1. General functions Turn the power Off. [PLAY] buttons Fast Rewind/Play/Fast forward/Stop/Pause ] HOME button Access the OSD menu. ] SOURCE button Choose input source. Press [ ] or [ ] button to choose Media Player HDMI 1...
  • Page 21 65BDL4511D_75BDL4511D_86BDL4511D 3.3.2. ID Remote Control Press [ID] button. The red LED blinks twice. 1. Press [ID SET] button for more than 1 second to enter the Set the remote control ID if you intend to use this remote ID Mode. The red LED lights up. control on several different displays.
  • Page 22 65BDL4511D_75BDL4511D_86BDL4511D 3.3.3. Inserting the batteries in the remote control The remote control is powered by two 1.5V AAA batteries. To install or replace batteries: 1. Press and then slide the cover to open it. 2. Insert batteries with the correct polarity (+) and (-). 3.
  • Page 23 3.4. USB Cover • Use the USB cover and screws to cover the USB stick. 65BDL4511D 1. Release the screw as shown. Keep it in a suitable place. 2. Plug the USB stick. 3. Install the USB cover. 4. Use the screw provided to fix the USB cover.
  • Page 24 65BDL4511D_75BDL4511D_86BDL4511D 3.5. AC Switch Cover cover the AC switch. • Use AC Switch Cover to 1. Install the AC Switch Cover. 2. Fix the AC Switch Cover with the screw in step 1. 65BDL4511D 75BDL4511D/86BDL4511D...
  • Page 25 65BDL4511D_75BDL4511D_86BDL4511D Connecting External Equipment 4.1. Connecting External Equipment (Multimedia Player) 4.1.1. Using HDMI video input RS232 RS232 HDMI 1 IN HDMI 2 IN HDMI 3 IN DVI-I Multimedia Player [HDMI IN] HDMI Out 4.2. Connecting a PC 4.2.1. Using DVI input [PC LINE IN] PC LINE IN RS232...
  • Page 26 65BDL4511D_75BDL4511D_86BDL4511D 4.2.3. Using DP input RS232 RS232 DVI-I DP IN DP Out [DP IN] 4.3. Connecting Multiple Displays in a Daisy-chain Configuration You can interconnect multiple displays to create a daisy-chain configuration for applications such as a menu board. 4.3.1. Display control connection Connect the [RS232 OUT] connector of DISPLAY 1 to the [RS232 IN] connector of DISPLAY 2.
  • Page 27 65BDL4511D_75BDL4511D_86BDL4511D 4.5. IR Pass-through Connection [IR OUT] Multimedia Player [IR IN] Remote Control 4.6. Wire-connecting to Network INTERNET ROUTER [RJ-45] [RJ-45] Network Settings: 1. Switch the router on and enable its DHCP setting. 2. Connect the router to this display with an Ethernet cable. Setup 3.
  • Page 28 65BDL4511D_75BDL4511D_86BDL4511D Operation NOTE: The control button described in this section is mainly on the remote control unless specified otherwise. 5.1. Play multimedia files from USB device 1. Connect your USB device to the USB port on the display. RJ45 8. Press [ ], [ ], [ ] or [ ] button to choose “Return” item USB 2.0 then press [ ] button to return to the top layer.
  • Page 29 65BDL4511D_75BDL4511D_86BDL4511D OSD Menu 6.2. OSD Menu Overview An overview of the On-Screen Display (OSD) structure is shown 6.2.1. Picture menu below. You can use it as a reference for further adjustment of your display. Picture Brightness 6.1. Navigating the OSD Menu Screen Contrast Audio...
  • Page 30 65BDL4511D_75BDL4511D_86BDL4511D Smart Picture NOTE: VGA input only. PQ setting Clock Phase PC mode: {Standard} / {Highbright} / {sRGB}. Improves focus, clarity and image stability by increasing or Video mode: {Standard} / {Highbright} / {Cinema}. decreasing this setting. NOTE: VGA input only. Smart Power Zoom Mode Smart Power control is not relative to brightness control:...
  • Page 31 65BDL4511D_75BDL4511D_86BDL4511D Sync. Volume H position Moves the horizontal position of the Enable/disable audio out (line out) volume adjustability to image left or right. sync with internal speakers volume, but PD Internal speaker sound will be forced to be mute. V position Audio source Moves the vertical position of the image Select the audio input source.
  • Page 32 65BDL4511D_75BDL4511D_86BDL4511D Light Sensor (require Philips accessory CRD41 External Information OSD Sensor Box) Set the period of time the information OSD is displayed on Choose to turn on or off backlight adjustment according to the upper right corner of the screen. The information OSD will environment brightness.
  • Page 33 65BDL4511D_75BDL4511D_86BDL4511D Input Resolution • To use this function, serial connect all machines with RS232 cable and set their Control ports to RS232 too. Set the resolution of the VGA input. This is only required when the display is unable to detect the VGA input resolution Heat Status correctly.
  • Page 34 65BDL4511D_75BDL4511D_86BDL4511D Tiling by OSD. Please refer to Picture Menu Backlight setting priority. With this function you can create a single large-screen matrix (video wall) that consists of up to 225 sets of this display (up • {Enable} - Choose to enable or disable the Tiling function. to 15-sets on the vertical and 15-sets on the horizontal sides).
  • Page 35 65BDL4511D_75BDL4511D_86BDL4511D Schedule The scheduler cannot work cross midnight in one schedule with no repeats or only one schedule day is This function allows you to program up to 7 (seven) different selected. scheduled time intervals for the display to activate. 3.
  • Page 36 65BDL4511D_75BDL4511D_86BDL4511D Mode 2 [TCP off, WOL on, auto on/off] Mode 3 [TCP on, WOL off, auto on/off] Mode 4 [TCP on, WOL off, no auto on/off] USB Autoplay Choose to play source type. The options are: {Off} / {On}. NOTE: To use USB Autoplay 1.
  • Page 37 65BDL4511D_75BDL4511D_86BDL4511D Supported Media Formats USB Multimedia Formats Video format Video Codec Resolution Bit Rate MPEG1/2 1080P@30fps 40Mbps H.264 1080P@30fps 50Mbps WMV3 1080P@30fps 40Mbps Motion JPEG 640x480@30fps 40Mbps Audio format Audio Codec Sampling Rate Channel Bit Rate MPEG1/2 Layer1 16KHz-48KHz Up to 2 32Kbps-448Kbps MPEG1/2 Layer2 16KHz-48KHz Up to 2...
  • Page 38 65BDL4511D_75BDL4511D_86BDL4511D Input Mode Timing support: Item Resolution H.Freq. (KHz) V.Freq. (Hz) 720×400 @70Hz DOS 31.469 70.087 640×480 @60Hz DMT 31.469 59.94 640×480 @67Hz MAC 66.667 640×480 @72Hz DMT 37.861 72.809 640×480 @75Hz DMT 37.5 800×600 @56Hz DMT 35.156 56.25 800×600 @60Hz DMT 37.879 60.317 800×600 @72Hz DMT...
  • Page 39 However, pixel or sub-pixel defects on the PDP / TFT panels used in Plasma- & LCD- displays are sometimes unavoidable. No manufacturer can guarantee that all panels will be free from pixel defects, but Philips guarantees that any Plasma- &...
  • Page 40 Pixel Defect Tolerances In order to qualify for repair due to pixel defects during the warranty period, a PDP / TFT panel in a Philips Plasma / LCD- display must have pixel or sub-pixel defects exceeding the tolerances listed in the following table.
  • Page 41 65BDL4511D_75BDL4511D_86BDL4511D HOW TO AVOID MURA Although we can not guarantee the complete eradication of Mura every time, in general the appearance of Mura can be minimized by these methods: • Lower the backlight brightness • Use a screen saver • Reduce the ambient temperature around the unit 10.
  • Page 42 65BDL4511D_75BDL4511D_86BDL4511D 10.2. Troubleshooting Symptom Possible Cause Remedy No picture is displayed 1. The power cord is disconnected. 1. Plug in the power cord. 2. The main power switch on the back of 2. Make sure the power switch is switched the display is not switched on.
  • Page 43 65BDL4511D_75BDL4511D_86BDL4511D 11. Technical Specifications Display: Item Specifications 65BDL4511D 75BDL4511D 86BDL4511D Screen Size (Active Area) 1639 mm / 64.5 inch 1893 mm / 74.5 inch 2174 mm / 85.6 inch Aspect Ratio 16:9 16:9 16:9 Number of pixels 3840 (H) x 2160 (V)
  • Page 44 65BDL4511D_75BDL4511D_86BDL4511D General: Item Specifications 65BDL4511D 75BDL4511D 86BDL4511D Power Input 100 - 240V~, 50/60Hz 100 - 240V~, 50/60Hz 100 - 240V~, 50/60Hz Power Consumption (Max) 281 W 345 W 560 W Power Consumption (Typ.) 136 W 185 W 355 W Power Consumption (Standby & Off) <0.5 W <0.5 W...
  • Page 45 LIMITED WARRANTY In the unlikely event the product requires service, we will arrange for your Philips product to be serviced free-of-charge within the warranty period, provided that the product was used in accordance with the user manual (e.g. in the intended environment).
  • Page 46 Warranty period for PHILIPS signage display is listed as below, for areas not covered in this table, please follow their warranty statement. Standard warranty period for PHILIPS signage display is listed as below, for areas not covered in this table, please follow the local warranty statement.
  • Page 47 Pixel Defect Policy 37 Play multimedia files from USB device 26 Remote Control 18 Safety Instructions 1 Supported Media Formats 35 Technical Specifications 41 Unpacking 10 Unpacking and Installation 10 USB Cover 21 Warranty policy for Philips Professional Display Solutions 43...
  • Page 48 Top Victory Investments Ltd., and Top Victory Investments Ltd. is the warrantor in relation to this product. Philips and the Philips Shield Emblem are registered trade- marks of Koninklijke Philips N.V. and are used under license. Specifications are subject to change without notice. Version：V1.00 2022-05-16...
