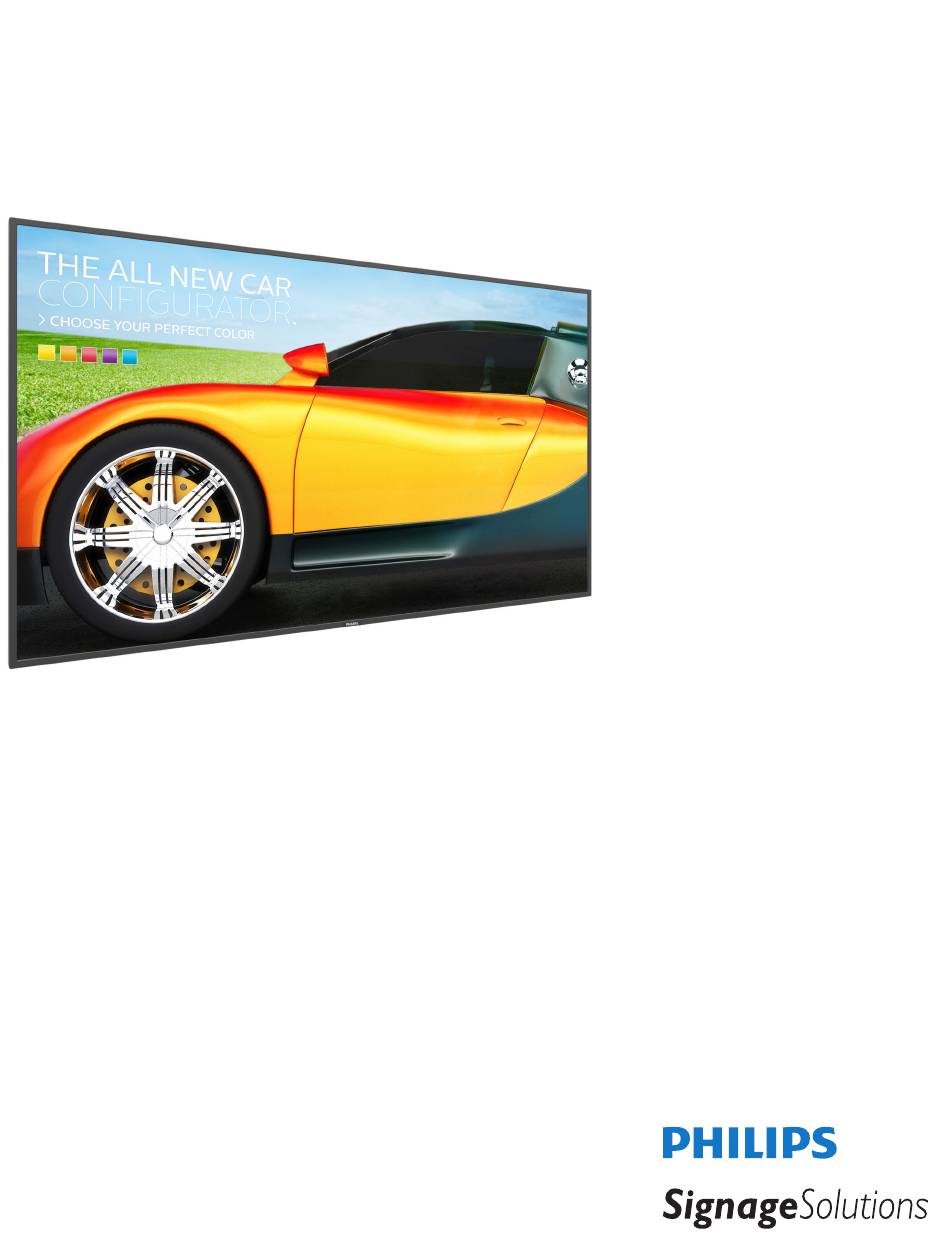

- Page 1 43BDL3510Q 50BDL3510Q 55BDL3510Q V1.00 www.philips.com/welcome User Manual (English)
- Page 2 When turning off the display by detaching the power cord, wait 6 seconds before re-attaching the power cord for normal operation. • Ensure the use of an approved power cord provided by Philips at all times. If your power cord is missing, please contact your local service center. •...
- Page 3 43BDL3510Q_50BDL3510Q_55BDL3510Q • Only the lifetime of the display stated in this specification is guaranteed if the display is used under the proper operation conditions. IMPORTANT: Always activate a moving screen saver program when you leave your display unattended. Always activate a periodic screen refresh application if the unit will display unchanging static content.
- Page 4 43BDL3510Q_50BDL3510Q_55BDL3510Q Warning: This equipment is compliant with Class A of EN55032/CISPR 32. In a residential environment this equipment may cause radio interference. Federal Communications Commission (FCC) Notice (U.S. Only) NOTE: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules.
- Page 5 43BDL3510Q_50BDL3510Q_55BDL3510Q Polish Center for Testing and Certification Notice The equipment should draw power from a socket with an attached protection circuit (a three-prong socket). All equipment that works together (computer, display, printer, and so on) should have the same power supply source. The phasing conductor of the room’s electrical installation should have a reserve short-circuit protection device in the form of a fuse with a nominal value no larger than 16 amperes (A).
- Page 6 43BDL3510Q_50BDL3510Q_55BDL3510Q Information for U.K. only WARNING - THIS APPLIANCE MUST BE EARTHED. Important: This apparatus is supplied with an approved moulded 13A plug. To change a fuse in this type of plug proceed as follows:+ 1. Remove fuse cover and fuse. 2.
- Page 7 43BDL3510Q_50BDL3510Q_55BDL3510Q China RoHS 根据中国大陆《电器电子产品有害物质限制使用管理办法》，以下部分列出了本产品中可能包含的有害 物质的名称和含量。 有害物质 部件名称 铅 汞 镉 六价铬 多溴联苯 多溴二苯醚 (Pb) (Hg) (Cd) (Cr (VI)) (PBB) (PBDE) 外壳 液晶显示屏 电路板组件* 电源适配器 电源线/连接线 遥控器 本表格依据SJ/T 11364 的规定编制。 *: 电路板组件包括印刷电路板及其构成的零部件，如电阻、电容、集成电路、连接器等。 O: 表示该有害物质在该部件所有均质材料中的含量均在 GB/T 26572规定的限量要求以下。 X: 表示该有害物质至少在该部件的某一均质材料中的含量超出GB/T 26572规定的限量要求。 上表中打 “X” 的部件， 应功能需要， 部分有害物质含量超出GB/T 26572规定的限量要求， 但符合欧盟 RoHS法规要求...
- Page 8 Please find out about the local regulations on how to dispose of your old display from your local Philips dealer. (For customers in Canada and U.S.A.) This product may contain lead and/or mercury.
- Page 9 For more information about E -waste please visit http://www.india.philips.com/about/sustainability/recycling/index. page and to know where you can drop off your waste equipment for recycling in India please contact on below given contact details.
- Page 10 43BDL3510Q_50BDL3510Q_55BDL3510Q Batteries For EU: The crossed-out wheeled bin implies that used batteries should not be put to the general household waste! There is a separate collection system for used batteries, to allow proper treatment and recycling in accordance with legislation. Please contact your local authority for details on the collection and recycling schemes.
-
Page 11: Table Of Contents
43BDL3510Q_50BDL3510Q_55BDL3510Q Table Of Contents 5.2.4. Tiling .............16 5.2.5. Network ..........17 5.2.6. Configuration menu ......18 Unpacking and Installation ........1 5.2.7. Option ..........19 1.1. Unpacking ............1 Supported Media Formats ........22 1.2. Package Contents ..........1 1.3. Installation Notes ..........1 Input Mode ..............23 1.4. -
Page 12: Unpacking And Installation
43BDL3510Q_50BDL3510Q_55BDL3510Q Unpacking and Installation 1.1. Unpacking • This product is packed in a carton, together with the standard accessories. • Any other optional accessories will be packed separately. • As this product is high and heavy, the operation of moving the device is recommended to be performed by two technicians. •... -
Page 13: Mounting On A Wall
4. For the wall-mounting kit, use M6 mounting screws (with a length 10 mm longer than the thickness of the mounting bracket) and tighten them securely. 1.4.1. VESA Grid 43BDL3510Q 200(H) x 200(V) mm 50BDL3510Q 400(H) x 400(V) mm... -
Page 14: Mounting In Portrait Orientation
43BDL3510Q_50BDL3510Q_55BDL3510Q 1.5. Mounting in Portrait Orientation This display can be installed in portrait orientation. Rotate the display 90 degrees Counterclockwise. The “ ” logo should be on the right side when facing the display. 90° 90° 1.5.1. How to remove the logo 1. -
Page 15: Parts And Functions
43BDL3510Q_50BDL3510Q_55BDL3510Q Parts and Functions 2.1. Control Panel [ ] button [MENU] button Press this button to turn the display On or turn the Return to the previous menu while the OSD menu is On. display to standby mode. This button can also be used to activate the OSD menu when the OSD menu is Off. -
Page 16: Input/Output Terminals
43BDL3510Q_50BDL3510Q_55BDL3510Q 2.2. Input/Output Terminals RJ45 USB 2.0 Service Port PC LINE IN AUDIO OUT IR-OUT IR-IN RS232 RS232 HDMI 1 IN HDMI 2 IN DVI-I AC IN PC LINE IN AC power input from the wall outlet. Audio input for VGA source (3.5mm stereo phone). MAIN POWER SWITCH USB SERVICE PORT Switch the main power between On and Off. -
Page 17: Remote Control
43BDL3510Q_50BDL3510Q_55BDL3510Q 2.3. Remote Control [ ] POWER button Turn the display on or put the display to standby mode. 2.3.1. General functions [PLAY] buttons Control playback of media files. ] SOURCE button Choose input source. Press [ ] or [ ] button to choose NORMAL VGA , DVI HDMI 1... -
Page 18: Id Remote Control
43BDL3510Q_50BDL3510Q_55BDL3510Q 2.3.2. ID Remote Control Press [ID] button. The red LED blinks twice. 1. Press [ID SET] button for more than 1 second to enter the Set the remote control ID if you intend to use this remote ID Mode. The red LED lights up. control on several different displays. -
Page 19: Inserting The Batteries In The Remote Control
43BDL3510Q_50BDL3510Q_55BDL3510Q 2.3.3. Inserting the batteries in the remote control The remote control is powered by two 1.5V AAA batteries. To install or replace batteries: 1. Press and then slide the cover to open it. 2. Insert batteries with the correct polarity (+) and (-). 3. -
Page 20: Usb Cover
43BDL3510Q_50BDL3510Q_55BDL3510Q 2.4. USB Cover • Use the USB cover and screws to hide the USB stick. • Maximum USB stick size recommended: 43BDL3510Q / 50BDL3510Q: 20(W)x10(H)x60(L) mm 55BDL3510Q: 20(W)x10(H)x45(L) mm... -
Page 21: Connecting External Equipment
43BDL3510Q_50BDL3510Q_55BDL3510Q Connecting External Equipment 3.1. Connecting External Equipment (DVD/VCR/VCD) 3.1.1. Using HDMI video input RS232 RS232 HDMI 1 IN HDMI 2 IN DVI-I [HDMI IN] HDMI Out DVD / VCR / VCD 3.2. Connecting a PC 3.2.1. Using DVI input [PC LINE IN] PC LINE IN RS232... -
Page 22: Connecting Multiple Displays In A Daisy-Chain Configuration
43BDL3510Q_50BDL3510Q_55BDL3510Q 3.3. Connecting Multiple Displays in a Daisy-chain Configuration You can interconnect multiple displays to create a daisy-chain configuration for applications such as a menu board. 3.3.1. Display control connection Connect the [RS232 OUT] connector of DISPLAY 1 to the [RS232 IN] connector of DISPLAY 2. DISPLAY 1 DISPLAY 2 [RS232]... -
Page 23: Wire-Connecting To Network
43BDL3510Q_50BDL3510Q_55BDL3510Q 3.6. Wire-connecting to Network INTERNET ROUTER [RJ-45] [RJ-45] Network Settings: 1. Switch the router on and enable its DHCP setting. 2. Connect the router to this display with an Ethernet cable. Setup 3. Press [ ] HOME button on the remote control, then select Connect to network , then press [ ] button. -
Page 24: Operation
43BDL3510Q_50BDL3510Q_55BDL3510Q Operation 1 / 2 NOTE: The control button described in this section is mainly on the remote control unless specified otherwise. 4.1. Play multimedia files from USB device Return aaa1 aaa2 aaa3 1. Connect your USB device to the USB port on the display. xxx1 xxx2 xxx3... -
Page 25: Osd Menu
43BDL3510Q_50BDL3510Q_55BDL3510Q OSD Menu 5.2. OSD Menu Overview An overview of the On-Screen Display (OSD) structure 5.2.1. Picture menu is shown below. You can use it as a reference for further adjustment of your display. PICTURE Picture Mode Standard 5.1. Navigating the OSD Menu SCREEN Brightness AUDIO... -
Page 26: Screen Menu
43BDL3510Q_50BDL3510Q_55BDL3510Q Color temperature Press - button to narrow the width of the image on the screen to the left. It is used to adjust the color temperature. NOTE: VGA input only. The image becomes reddish as the color temperature decreases, and becomes bluish as the color temperature Clock Phase increases. -
Page 27: Audio
43BDL3510Q_50BDL3510Q_55BDL3510Q Off : Disable the function and gray out Audio Out Volume. V position Moves the vertical position of the image up or Source down. Select the audio input source. Analog: audio from audio input. Auto adjust Digital : audio from HDMI/DVI audio. Press “Set”... -
Page 28: Network
43BDL3510Q_50BDL3510Q_55BDL3510Q Example: 2 x 2 screen matrix (4 displays) {Off} H monitors = 2 displays V monitors = 2 displays H monitors Position Example: 5 x 5 screen matrix (25 displays) H monitors = 5 displays Frame comp. Top V monitors = 5 displays Adjust the top frame compensation. -
Page 29: Configuration Menu
43BDL3510Q_50BDL3510Q_55BDL3510Q 5.2.6. Configuration menu Monitor ID Set the ID number for controlling the display via the RS232 connection. PICTURE Switch on State Last status Each display must have a unique ID number when multiple Network Control Port SCREEN RS232 sets of display are connected. Monitor ID number range is AUDIO Boot on source Last input... - Page 30 43BDL3510Q_50BDL3510Q_55BDL3510Q 5.2.7. Option • Menu item {Daylight saving start date} Selection item {1st, 2nd, 3rd, 4th, last} Sunday of selection item {1-12 month} • Menu item {Daylight saving stop date} Selection item {1st, PICTURE Language English 2nd, 3rd, 4th, last} Sunday of selection item {1-12 month} Auto signal detection SCREEN Date and Time...
- Page 31 43BDL3510Q_50BDL3510Q_55BDL3510Q Leave hour and minute options empty if you do not want Keypad Control to use the function of power-on or power-off schedule. Choose to enable or disable the display keyboard (control buttons) function. • {Repeat modes} -Press [ ] button to select which day in a week this schedule item will take effect, and then •...
- Page 32 43BDL3510Q_50BDL3510Q_55BDL3510Q Slideshow Duration Duration of each picture for USB autoplay and USB Play List. USB Play List Choose 1 playlist to play, support up to 7 playlists. USB Cloning Copy PD settings from one set to another. Import: Import settings from another set. Export: Export settings to another set.
-
Page 33: Supported Media Formats
43BDL3510Q_50BDL3510Q_55BDL3510Q Supported Media Formats USB Multimedia Formats Video format Video Codec Resolution Bit Rate MPEG1/2 1080P@30fps 40Mbps H.264 1080P@30fps 50Mbps WMV3 1080P@30fps 40Mbps Motion JPEG 640x480@30fps 40Mbps Audio format Audio Codec Sampling Rate Channel Bit Rate MPEG1/2 Layer1 16KHz-48KHz Up to 2 32Kbps-448Kbps MPEG1/2 Layer2 16KHz-48KHz Up to 2... -
Page 34: Input Mode
43BDL3510Q_50BDL3510Q_55BDL3510Q Input Mode Timing support: Item Resolution H.Freq. (KHz) V.Freq. (Hz) 720×400 @70Hz DOS 31.469 70.087 640×480 @60Hz DMT 31.469 59.94 640×480 @67Hz MAC 66.667 640×480 @72Hz DMT 37.861 72.809 640×480 @75Hz DMT 37.5 800×600 @56Hz DMT 35.156 56.25 800×600 @60Hz DMT 37.879 60.317 800×600 @72Hz DMT... -
Page 35: Pixel Defect Policy
However, pixel or sub-pixel defects on the PDP / TFT panels used in Plasma- & LCD- displays are sometimes unavoidable. No manufacturer can guarantee that all panels will be free from pixel defects, but Philips guarantees that any Plasma- & LCD- displays with an unacceptable number of defects will be repaired during the warranty period in line with your local guarantee conditions. -
Page 36: Dark Dot Defects
Pixel Defect Tolerances In order to qualify for repair due to pixel defects during the warranty period, a PDP / TFT panel in a Philips Plasma / LCD- display must have pixel or sub-pixel defects exceeding the tolerances listed in the following table. -
Page 37: Cleaning And Troubleshooting
43BDL3510Q_50BDL3510Q_55BDL3510Q HOW TO AVOID MURA Although we can not guarantee the complete eradication of Mura every time, in general the appearance of Mura can be minimized by these methods: • Lower the backlight brightness • Use a screen saver • Reduce the ambient temperature around the unit Cleaning and Troubleshooting 9.1. -
Page 38: Troubleshooting
43BDL3510Q_50BDL3510Q_55BDL3510Q 9.2. Troubleshooting Symptom Possible Cause Remedy No picture is displayed 1. The power cord is disconnected. 1. Plug in the power cord. 2. The main power switch on the back 2. Make sure the power switch is of the display is not switched on. switched on. -
Page 39: Technical Specifications
43BDL3510Q_50BDL3510Q_55BDL3510Q Technical Specifications Display: Item Specifications 43BDL3510Q 50BDL3510Q 55BDL3510Q Screen Size (Active Area) 108 cm / 42.5 inch 125.7 cm / 49.5 inch 138.7 cm / 54.6 inch Aspect Ratio 16:9 16:9 16:9 Number of pixels 3840 (H) x 2160 (V) - Page 40 43BDL3510Q_50BDL3510Q_55BDL3510Q General: Item Specifications 43BDL3510Q 50BDL3510Q 55BDL3510Q Power Input 100 - 240V~, 50/60Hz 100 - 240V~, 50/60Hz 100 - 240V~, 50/60Hz Power Consumption (Max) 150 W 165 W 180 W Power Consumption (typ.) 90 W 105 W 120 W Power Consumption (Standby &...
- Page 41 2020 © Koninklijke Philips N.V. All rights reserved. Philips and the Philips Shield Emblem are registered trademarks of Koninklijke Philips N.V. and are used under license from Koninklijke Philips N.V. Specifications are subject to change without notice.
