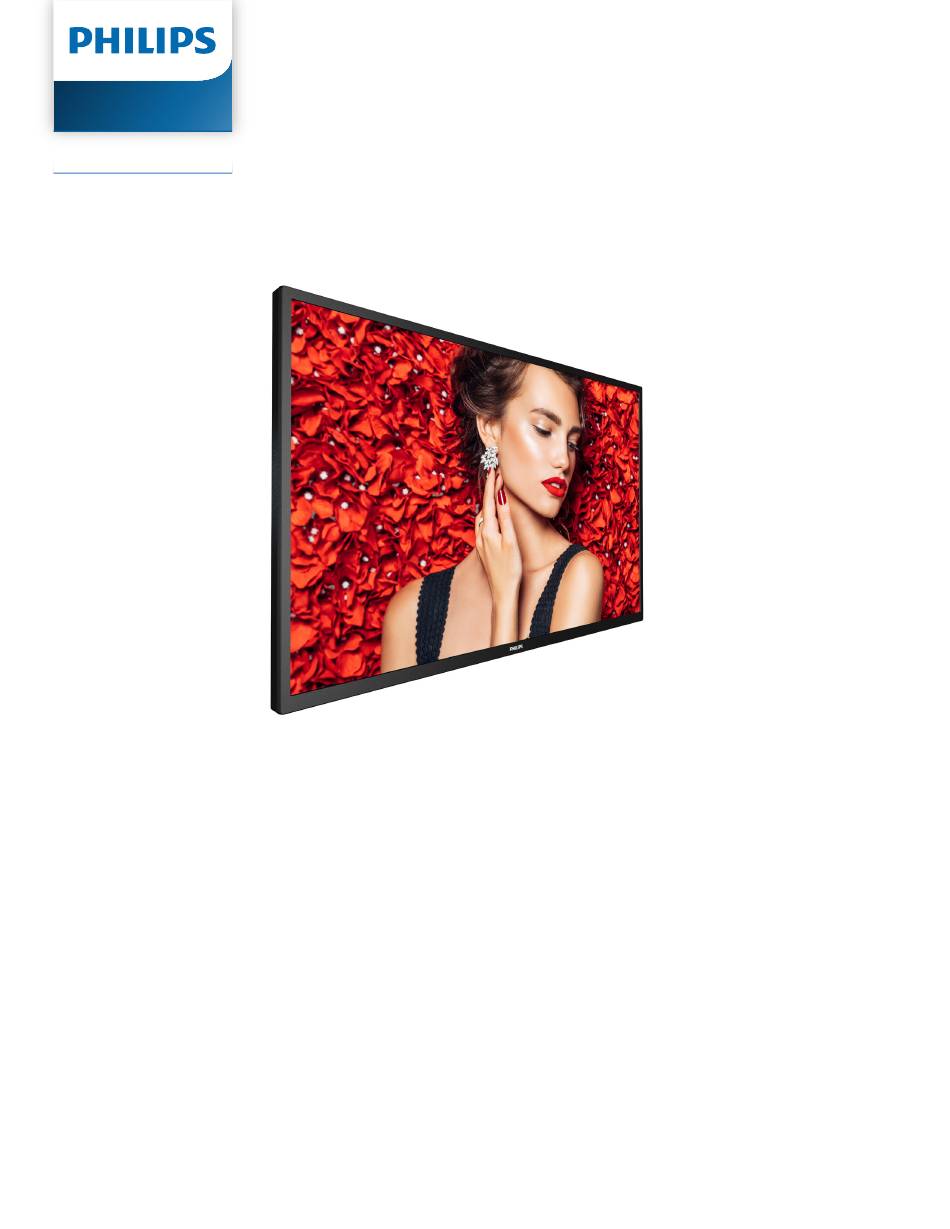

- Page 1 Professional Display Solutions D Line 32BDL4510D www.philips.com/welcome User Manual (English)
- Page 2 When turning off the display by detaching the power cord, wait 6 seconds before re-attaching the power cord for normal operation. • Ensure the use of an approved power cord provided by Philips at all times. If your power cord is missing, please contact your local service center. •...
- Page 3 32BDL4510D • Only the lifetime of the display stated in this specification is guaranteed if the display is used under the proper operation conditions. IMPORTANT: Always activate a moving screen saver program when you leave your display unattended. Always activate a periodic screen refresh application if the unit will display unchanging static content.
- Page 4 32BDL4510D Warning: This equipment is compliant with Class A of EN55032/CISPR 32. In a residential environment this equipment may cause radio interference. Federal Communications Commission (FCC) Notice (U.S. Only) NOTE: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules.
- Page 5 32BDL4510D Polish Center for Testing and Certification Notice The equipment should draw power from a socket with an attached protection circuit (a three-prong socket). All equipment that works together (computer, display, printer, and so on) should have the same power supply source.
- Page 6 32BDL4510D Information for U.K. only WARNING - THIS APPLIANCE MUST BE EARTHED. Important: This apparatus is supplied with an approved moulded 13A plug. To change a fuse in this type of plug proceed as follows:+ 1. Remove fuse cover and fuse.
- Page 7 32BDL4510D China RoHS 根据中国大陆《电器电子产品有害物质限制使用管理办法》，以下部分列出了本产品中可能包含的有害 物质的名称和含量。 有害物质 部件名称 铅 汞 镉 六价铬 多溴联苯 多溴二苯醚 (Pb) (Hg) (Cd) (Cr (VI)) (PBB) (PBDE) 外壳 液晶显示屏 电路板组件* 电源适配器 电源线/连接线 遥控器 本表格依据SJ/T 11364 的规定编制。 *: 电路板组件包括印刷电路板及其构成的零部件，如电阻、电容、集成电路、连接器等。 O: 表示该有害物质在该部件所有均质材料中的含量均在 GB/T 26572规定的限量要求以下。 X: 表示该有害物质至少在该部件的某一均质材料中的含量超出GB/T 26572规定的限量要求。 上表中打 “X” 的部件， 应功能需要， 部分有害物质含量超出GB/T 26572规定的限量要求， 但符合欧盟...
- Page 8 Please find out about the local regulations on how to dispose of your old display from your local Philips dealer. (For customers in Canada and U.S.A.) This product may contain lead and/or mercury.
- Page 9 For more information about E -waste please visit http://www.india.philips.com/about/sustainability/recycling/index. page and to know where you can drop off your waste equipment for recycling in India please contact on below given contact details.
- Page 10 32BDL4510D Batteries For EU: The crossed-out wheeled bin implies that used batteries should not be put to the general household waste! There is a separate collection system for used batteries, to allow proper treatment and recycling in accordance with legislation.
-
Page 11: Table Of Contents
32BDL4510D Table Of Contents 5.2.1. Picture menu ........15 5.2.2. Screen menu ........16 5.2.3. Audio ............17 Unpacking and Installation ........1 5.2.4. Configuration1 menu ......17 1.1. Unpacking ............1 5.2.5. Configuration2 menu ......18 1.2. Package Contents ..........1 5.2.6. Option ..........19 1.3. -
Page 12: Unpacking And Installation
AAA Batteries • IR Sensor Cable * The supplied power cord varies depending on destination. • USB cover • Philips logo plate Power Cord RS232 Cable RS232 Daisy Chain Cable IR Sensor Cable USB Cover Philips logo plate * Differences according to regions. -
Page 13: Mounting On A Wall
32BDL4510D 1.4. Mounting on a Wall To mount this display on a wall, a standard wall-mounting kit (commercially available) is required. It is recommended that you use a mounting interface that complies with TUV-GS and /or UL1678 standard in North America. -
Page 14: Mounting In Portrait Orientation
32BDL4510D 1.5. Mounting in Portrait Orientation This display can be installed in portrait orientation. Rotate the display 90 degrees Clockwise. The “ ” logo should be on the left side when facing the display. 90° 90° 1.5.1. How to remove the logo 1. -
Page 15: Parts And Functions
32BDL4510D Parts and Functions 2.1. Control Panel [ ] button [MENU] button Press this button to turn the display On or turn the Return to the previous menu while the OSD menu is On. display to standby mode. This button can also be used to activate the OSD menu when the OSD menu is Off. -
Page 16: Input/Output Terminals
32BDL4510D 2.2. Input/Output Terminals AUDIO OUT RJ45 USB 2.0 Service Port PC LINE IN IR-OUT IR-IN RS232 RS232 DP IN DP OUT HDMI 1 IN HDMI 2 IN HDMI OUT DVI-I IN 4 5 6 7 8 AC IN USB SERVICE PORT AC power input from the wall outlet. -
Page 17: Remote Control
32BDL4510D 2.3. Remote Control [ ] POWER button Turn the display on or put the display to standby mode. 2.3.1. General functions [PLAY] buttons Control playback of media files. ] SOURCE button Choose input source. Press [ ] or [ ] button to choose... -
Page 18: Id Remote Control
32BDL4510D 2.3.2. ID Remote Control Press [ID] button. The red LED blinks twice. 1. Press [ID SET] button for more than 1 second to enter the Set the remote control ID if you intend to use this remote ID Mode. The red LED lights up. -
Page 19: Inserting The Batteries In The Remote Control
32BDL4510D 2.3.3. Inserting the batteries in the remote control The remote control is powered by two 1.5V AAA batteries. To install or replace batteries: 1. Press and then slide the cover to open it. 2. Insert batteries with the correct polarity (+) and (-). -
Page 20: Using The Remote Sensor And Power Indicator
32BDL4510D 2.3.6. Using the remote sensor and power indicator 1. Push down the lens to have better remote control performance and make it easy to observe the power status. 2. Pull up the lens before mounting the display for video wall application. -
Page 21: Usb Cover
Use the USB cover and screws to cover the USB stick. 1. Install the USB stick. 2. Install the USB cover. 3. Use the screw in accessory to fix the USB cover. • Maximum USB stick size recommended: 32BDL4510D: 20(W)x10(H)x60(L) mm... -
Page 22: Connecting External Equipment
32BDL4510D Connecting External Equipment 3.1. Connecting External Equipment (DVD/VCR/VCD) 3.1.1. Using HDMI video input RS232 RS232 HDMI 1 IN HDMI 2 IN DVI-I [HDMI IN] HDMI Out DVD / VCR / VCD 3.2. Connecting a PC 3.2.1. Using DVI input... -
Page 23: Using Dp Input
32BDL4510D 3.2.3. Using DP input RS232 RS232 DVI-I DP IN [DP IN] DP Out 3.3. Connecting Multiple Displays in a Daisy-chain Configuration You can interconnect multiple displays to create a daisy-chain configuration for applications such as a menu board. 3.3.1. Display control connection Connect the [RS232 OUT] connector of DISPLAY 1 to the [RS232 IN] connector of DISPLAY 2. -
Page 24: Ir Pass-Through Connection
32BDL4510D 3.5. IR Pass-through Connection [IR OUT] DVD / VCR / VCD [IR IN] NORMAL (DVD / VCR / VCD) SOURCE FORMAT LIST INFO ADJUST OPTIONS ID SET ENTER Remote Control 3.6. Wire-connecting to Network INTERNET ROUTER [RJ-45] [RJ-45] Network Settings: 1. -
Page 25: Operation
32BDL4510D Operation 1 / 2 NOTE: The control button described in this section is mainly on the remote control unless specified otherwise. 4.1. Play multimedia files from USB device Return aaa1 aaa2 aaa3 1. Connect your USB device to the USB port on the display. -
Page 26: Osd Menu
32BDL4510D OSD Menu 5.2. OSD Menu Overview An overview of the On-Screen Display (OSD) structure 5.2.1. Picture menu is shown below. You can use it as a reference for further adjustment of your display. Brightness Picture Contrast 5.1. Navigating the OSD Menu... -
Page 27: Screen Menu
32BDL4510D Smart Picture Clock Phase PQ setting Improves focus, clarity and image stability by increasing or decreasing this setting. PC mode: {Standard} / {Highbright} / {sRGB}. NOTE: VGA input only. Video mode: {Standard} / {Highbright} / {Cinema}. Zoom mode Smart Power PC mode: {Full} / {4:3} / {1:1} / {16:9}/ {21:9}/ {Custom}. -
Page 28: Audio
32BDL4510D NOTE: This function is only availavle when “Audio Out Sync” H position is on. Moves the horizontal position of the image left or right. Sync. Volume Enable/disable audio out (line out) volume adjustability to V position sync with internal speakers volume, but PD Internal speaker Moves the vertical position of the image up or sound will be forced to be mute. -
Page 29: Configuration2 Menu
Choose from : {Off} / { On} Set the period of time the information OSD is displayed on the upper right corner of the screen. The information OSD Light sensor (require Philips accessory CRD41 External will display when input signal is changed. Sensor Box) - Page 30 32BDL4510D operated by the remote control. (In primary mode, IR Monitor information key will always be processed regardless the monitor id/ Shows information about your display, including Input group settings). source, Resolution, Model name, SW version, serial number, operation hours and MAC address.
- Page 31 32BDL4510D forward at 2 o’clock. At the end date of daylight saving, the • {Source} - Press [ ] or [ ] button to select the input clock should be adjusted 1 hour backward at 2 o’clock. source. The existing daylight on/off menu should be replaced by •...
- Page 32 32BDL4510D User operation: No matter what current source it is, when user manually changes source, the failover will suspend. To make sure failover starts from the 1st priority source after powering on, please set the 1st priority source as boot on source too.
-
Page 33: Supported Media Formats
32BDL4510D Supported Media Formats USB Multimedia Formats Video format Video Codec Resolution Bit Rate MPEG1/2 1080P@30fps 40Mbps H.264 1080P@30fps 50Mbps WMV3 1080P@30fps 40Mbps Motion JPEG 640x480@30fps 40Mbps Audio format Audio Codec Sampling Rate Channel Bit Rate MPEG1/2 Layer1 16KHz-48KHz Up to 2... -
Page 34: Input Mode
32BDL4510D Input Mode Timing support: Item Resolution H.Freq. (KHz) V.Freq. (Hz) 720×400 @70Hz DOS 31.469 70.087 640×480 @60Hz DMT 31.469 59.94 640×480 @67Hz MAC 66.667 640×480 @72Hz DMT 37.861 72.809 640×480 @75Hz DMT 37.5 800×600 @56Hz DMT 35.156 56.25 800×600 @60Hz DMT 37.879... -
Page 35: Pixel Defect Policy
However, pixel or sub-pixel defects on the PDP / TFT panels used in Plasma- & LCD- displays are sometimes unavoidable. No manufacturer can guarantee that all panels will be free from pixel defects, but Philips guarantees that any Plasma- & LCD- displays with an unacceptable number of defects will be repaired during the warranty period in line with your local guarantee conditions. -
Page 36: Dark Dot Defects
Pixel Defect Tolerances In order to qualify for repair due to pixel defects during the warranty period, a PDP / TFT panel in a Philips Plasma / LCD- display must have pixel or sub-pixel defects exceeding the tolerances listed in the following table. -
Page 37: Cleaning And Troubleshooting
32BDL4510D HOW TO AVOID MURA Although we can not guarantee the complete eradication of Mura every time, in general the appearance of Mura can be minimized by these methods: • Lower the backlight brightness • Use a screen saver •... -
Page 38: Troubleshooting
32BDL4510D 9.2. Troubleshooting Symptom Possible Cause Remedy No picture is displayed 1. The power cord is disconnected. 1. Plug in the power cord. 2. The main power switch on the back 2. Make sure the power switch is of the display is not switched on. -
Page 39: Warranty Statement
32BDL4510D Warranty Statement Warranty period for PHILIPS signage display is listed as below, for areas not covered in this table, please follow their warranty statement. Region Warranty Period USA, Canada 3 years China 1 year Asia Pacific 3 years Europe... -
Page 40: Technical Specifications
32BDL4510D Technical Specifications Display: Item Specifications Screen Size (Active Area) 80 cm / 31.5 inch Aspect Ratio 16:9 Number of pixels 1920 (H) x 1080 (V) Pixel pitch 0.36375 (H) x 0.36375 (V) [mm] Displayable colors 8 bits+FRC, 16.7M colors... - Page 41 General: Item Specifications Power Input 100 - 240V~, 50/60Hz Power Consumption (Max) 75 W Power Consumption (typ.) 40 W Power Consumption (Standby & Off) <0.5 W Dimensions [W x H x D] 726.5 x 425.4 x 69.1 mm Weight 5.7 Kg Gross Weight 7.8 Kg Energy Efficiency Class...
- Page 42 This product has been manufactured by and is sold under the responsibility of Top Victory Investments Ltd., and Top Victory Investments Ltd. is the warrantor in relation to this product. Philips and the Philips Shield Emblem are registered trademarks of Koninklijke Philips N.V. and are used under license.
